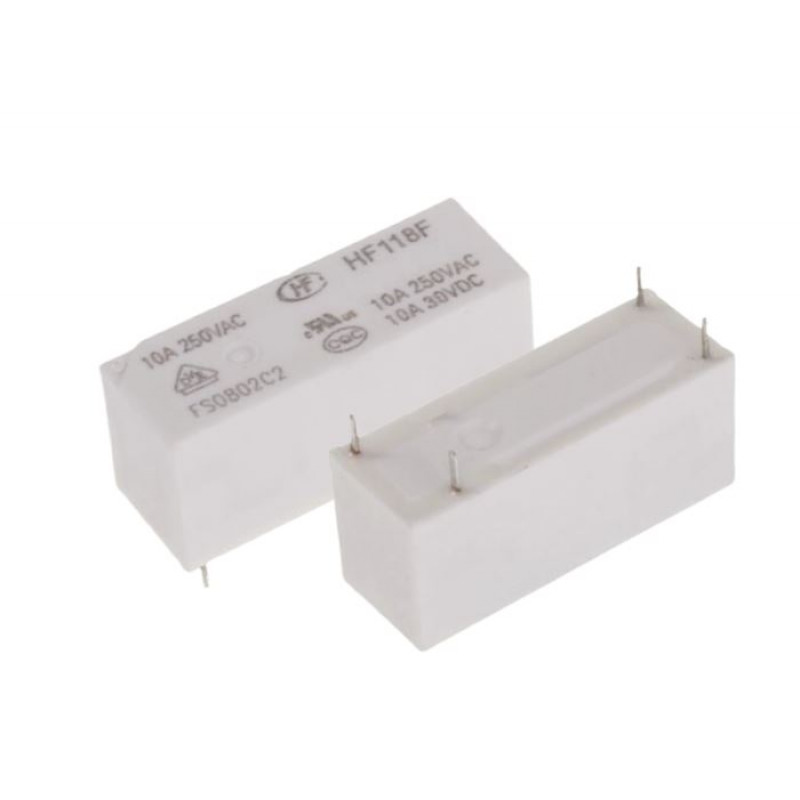

Hongfa 24V 10A DC HF118F/024-1D6 Series 4 Pins SPST High Power Relay offers low height, 10A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.

10 mm narrow and 12.5 mm high power relay for applications in which the switching capacity of conventional signal relay is not sufficient any more. Meets the VDE 0700 and corresponds to the insulation requirements according to VDE 0631.

Features:

• 10A switching capability
• 5kV dielectric strength (between coil and contacts)
• Low height: 12.5 mm
• Creepage distance >8mm
• Meeting VDE 0700, 0631 reinforce insulation
• Product in accordance to IEC 60335-1 available
• 1 pole configurations available
• UL insulation system: Class F
• Plastic sealed and flux proofed types available

Specifications:

• Type: HF118F/024
• Coil nominal voltage : 24 V DC
• Min. pick-up voltage : 16.8 V DC
• Max. pick-up voltage : 36 V DC
• Control mode : monostable, 1 coil
• Resistance (coil) : 2350 Ω
• Contact type : 1 Form A
• Contact material : AgNi
• Switching voltage (max.): 125 V DC, 440 V AC
• Switching current (max.):10 A
• Max. switching capacity: 300 W, 2500 VA
• Connection: Solder pins
• Min. temperature : -40 °C
• Max. temperature : +85 °C
• Weight : 8gm
• Dimension : 28.5 x 10.1 x 12.5 (in mm)
• RoHS-compliant : Yes
• Product type : PCB relay

Package Includes:

1 x Hongfa 24V 10A DC HF118F/024-1D6 Series 4 Pins SPST High Power Relay
