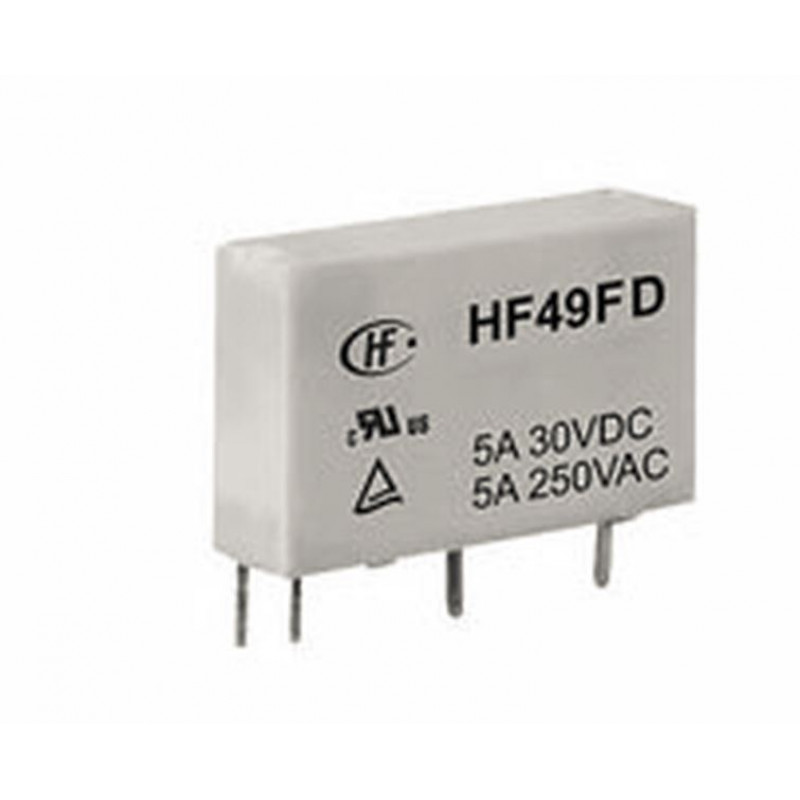

Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.
Features and Specifications:
- Type : HF49FD/024-1H12F
- Coil nominal voltage : 24 V DC
- Min. pick-up voltage : 16.8 V DC
- Max. pick-up voltage : 28.8 V DC
- Control mode : monostable, 1 coil
- Resistance (coil) : 3200 Ω
- Contact type : 1 maker
- Contact material : AgNi
- Switching voltage (max.) : 30 V DC, 250 V AC
- Switching current (max.) : 5 A
- Max. switching capacity 150 W, 1250 VA
- Connection : Solder pins
- Min. temperature : -40 °C
- Max. temperature : +85 °C
- Length : 20 mm
- Width : 5 mm
- Height : 12.5 mm
- Dimensions : (L x W x H) 20 x 5 x 12.5 mm
- Content : 1 pc(s)
- RoHS-compliant : Yes
- Product type : PCB relay
Package Includes:
1 x Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 100.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Hongfa 24V 5A DC HF49FD/024-1H12F 5 4 Pin SPST Miniature Power Relay
- Product Code: EC-10132
- Availability: 4351
-
Rs.95.00
- (Excluding 18% GST)
