K7805-500R3 series are high efficiency switching regulators and ideal substitutes for LM7805 series three-terminal linear regulators. The converters feature high efficiency, low loss, short circuit protection, positive or negative output voltage, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power.
Features:
- High efficiency up to 95%
- No-load input current as low as 0.2mA
- Operating ambient temperature range: -40 to +85 Deg C
- Support the negative output
- Output short-circuit protection
- Pin-out compatible with LM78XX linear regulators
- IEC60950, UL60950, EN60950 approved
Specifications:-
- I/p Voltage range: 6.5-36vdc
- Nominal voltage: 24Vdc
- O/p voltage: 5V
- O/p current: 500(mA)
- wattage: 0.5W
- Isolation: No
- Package: SIP
Package Includes:-
1 x K7805-500R3 Mornsun 5V Output DC-DC Converter 0.5W Power Supply Module - SIP Package
Download Datesheet :-
Download
| Brand/Manufacturer | Mornsun |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 293.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

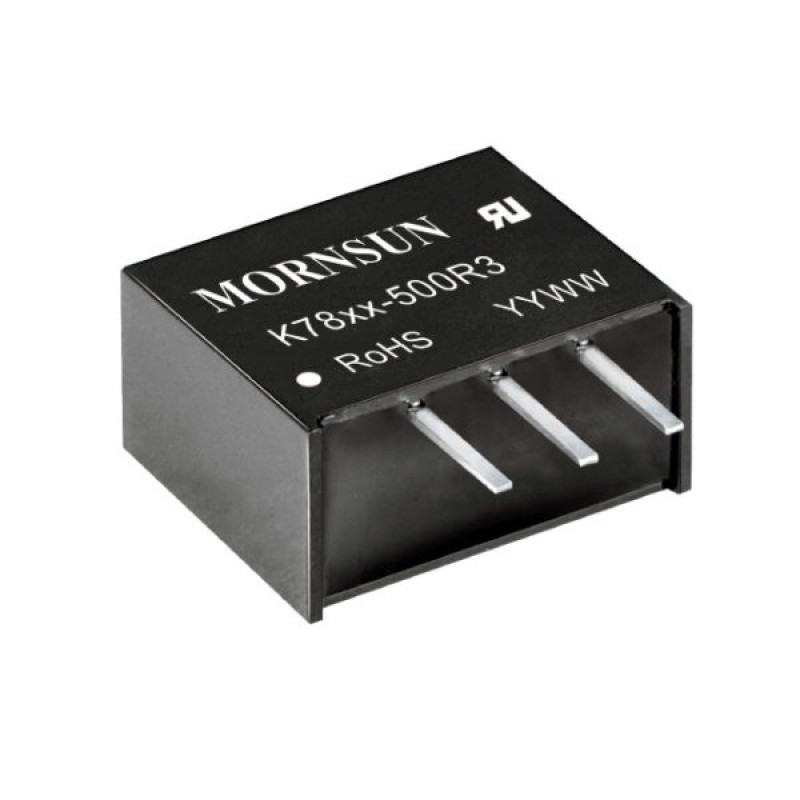

K7805-500R3 Mornsun 5V Output DC-DC Converter 0.5W Power Supply Module - SIP Package
- Product Code: EC-9440
- Availability: 1
-
Rs.249.00
- (Excluding 18% GST)
