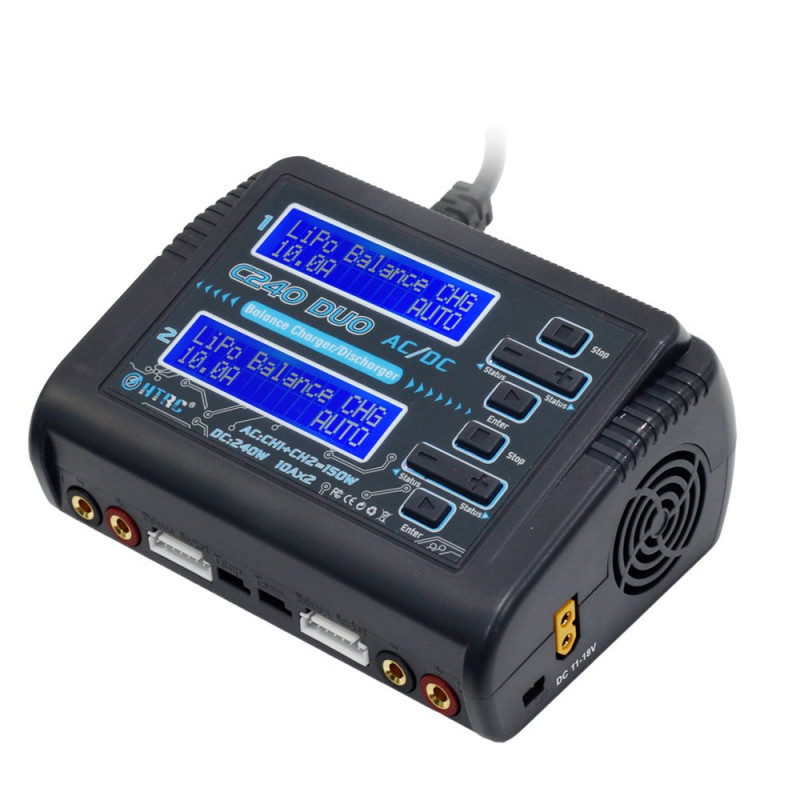

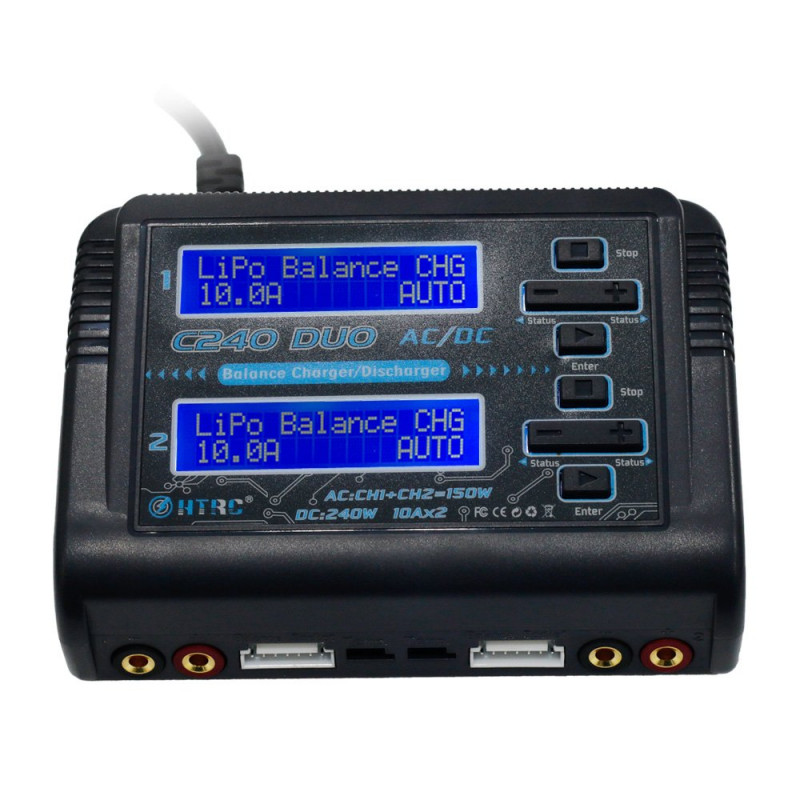

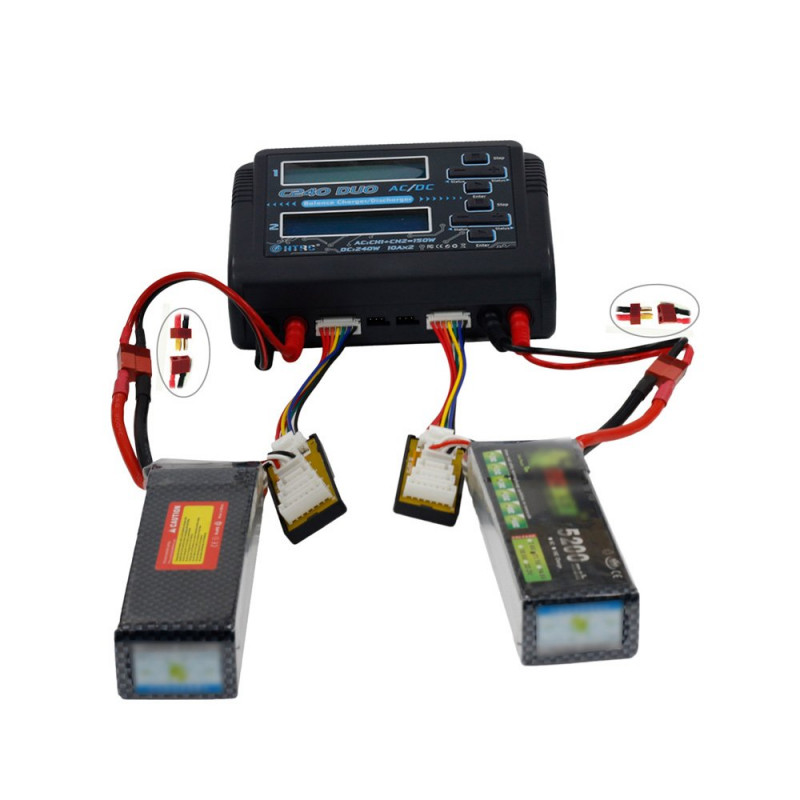

HTRC C240 DUO AC 150W /DC 240W Dual Channel 10A RC Balance Charger discharger for LiPo LiHV LiFe Lilon NiCd NiMh Pb battery

C240 is a new design dual balance charger by HTRC, which can charge two different kinds of batteries simultaneously.Multi-function,high power, Utilising 216 LED display,built-in cooling fan,DC 11-18V or AC 100-240V dual power.Designed for charging LiPo LiFe Lilon LiHV NiCd NiMh Pb Smart Batteries.

It can support power distribution in AC mode, total power 150W (CH1+CH2=150Watt), and in DC mode, works in 2 x 120W. Max charge current can reach 10A each port in both AC and DC mode.

Features:

1. Full plastic shell, safe, compact, beautiful.
2. Twin-channel, charge two different kinds of batteries simultaneously.
3. High power, single port max 120W. support power distribution.
4. Practical for a variety of batteries. LiPo LiFe Lilon NiCd NiMh Pb, and high power battery LiHV.
5. Automatic identification of Li-Po batteries cells counts
6. Adjustable digital DC Power.

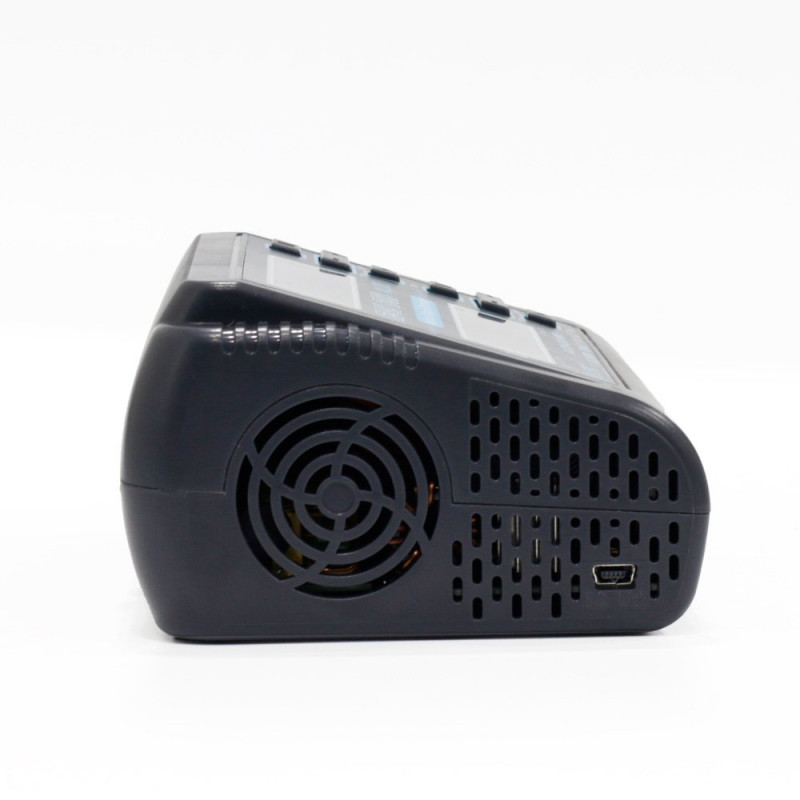

7. Built-in smart cooling fan for easy heat dissipation.

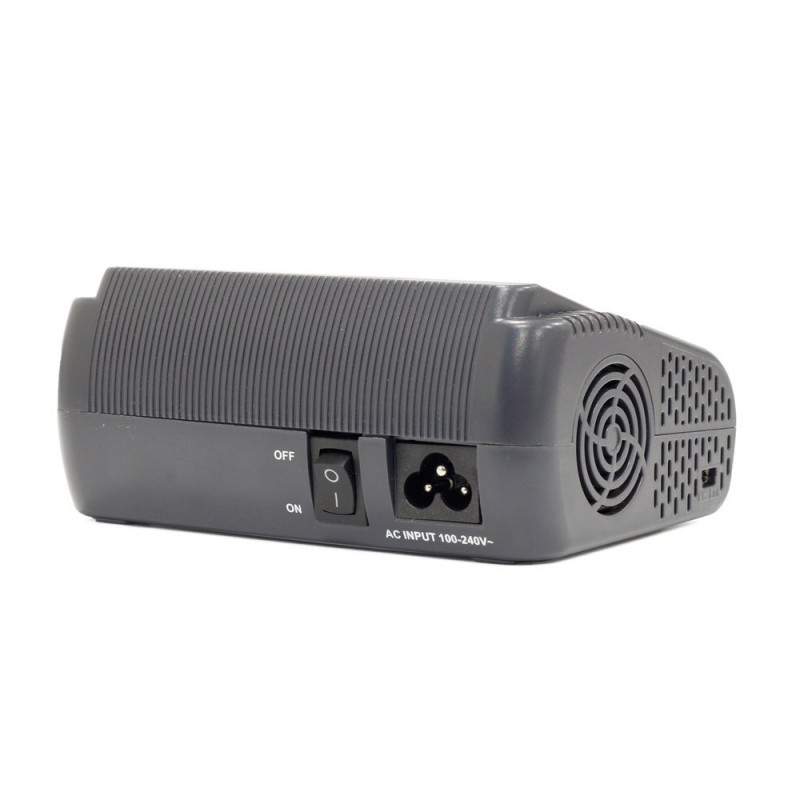

8. Built-In PFC AC adapter high efficiency. with the power switch.
9. Multiple charging modes. Lipo/Lilo/LiFe/LiHv: balance charge, charge, fast charge,storage, discharge.
10. NiMH/NiCd: Charge, Discharge, Cycle.
11. PB: Charge, Discharge.
12. Multi-extra function:
13. Battery Meter: Display lithium battery cell counts, total voltage, battery capacity percentage, each cells voltage. (does not support 1s battery)
14. TVC(Terminal voltage control): The Charger allows the user to set the charge/discharge end voltage.
15. Lithium Battery internal Resistance Check: can display each cells resistance.(does not support 1s battery)
16. Balancer: individual-cell-voltage balancing, cell voltage Monitoring
17. Smart battery: Smart battery I, II, III,(Need optional DJI Charging cable)
18. Data storage and loading
19. Re-peak and cycling of NiMH/NiCD battery.
20. Maximum Safety: Automatic charge current limit, Delta-peak sensitivity, capacity limit, processing time limit, temperature threshold.
21. Firmware update.

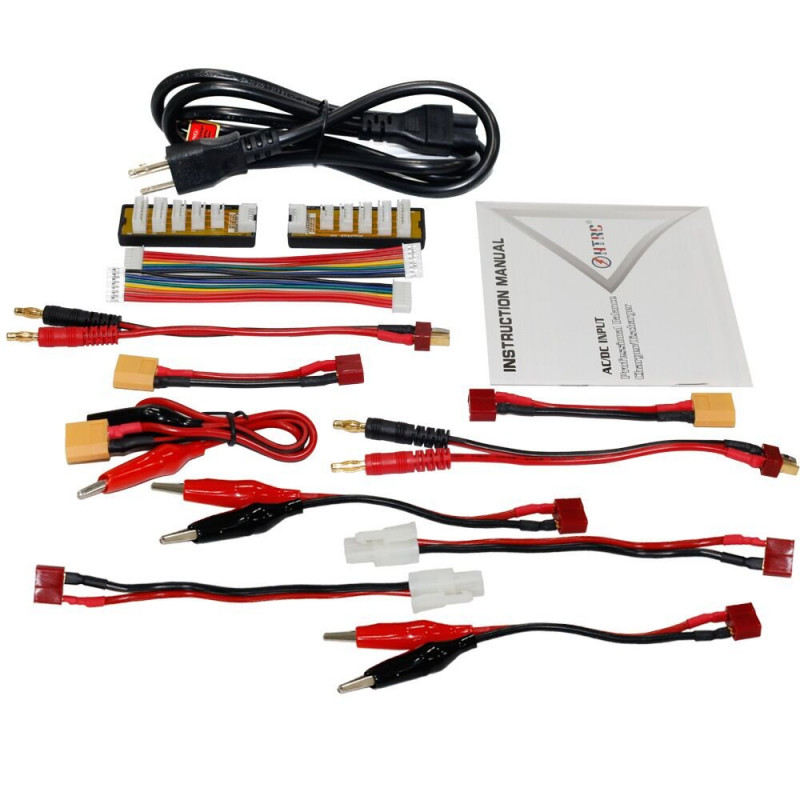

Package Includes:

1 x C240 Charger-(Original)
2 x Charge cable banana plug to T-Plug
2 x Extension charge cable T-Plug to XT60
2 x balance board with pin cord
1 x AC Cord (US EU UK AU optional)
1 x DC Cord
1 x Users Manual

Specifications:

Model No	HTRC C240 DUO

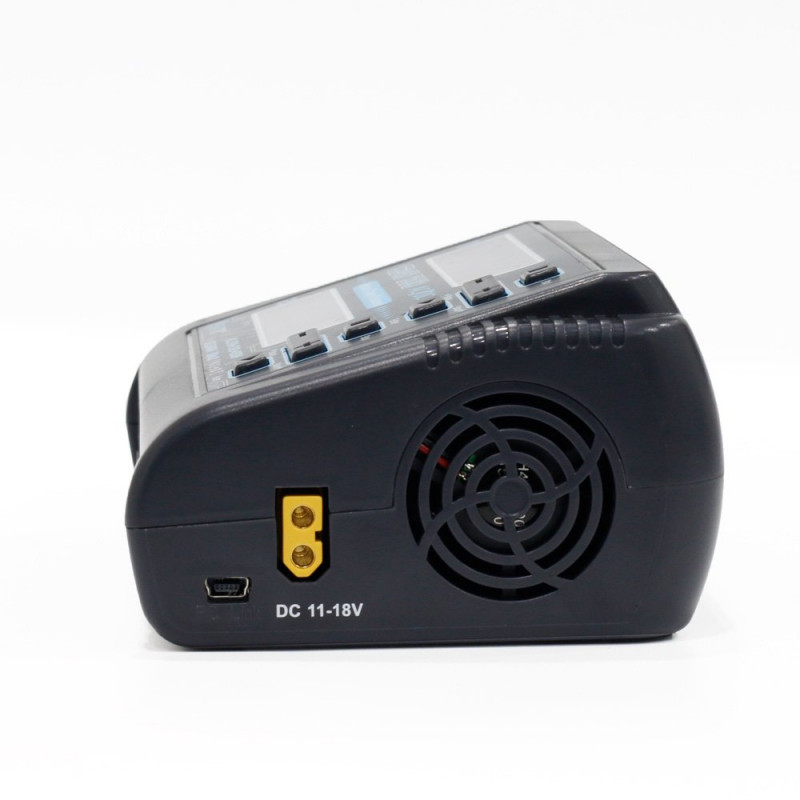

Input	AC 100-240V DC 11-18V
Charge power	AC mode 150W (CH1+CH2=150Watt) DC mode 120Wx2 =240W
Discharge power	Max 10W x 2
Charge current range	0.1-10A x 2
Discharge current range	0.1-2Ax2
Lilon/LiPo/LiFe/LiHV cell count	1-6 cells x 2
NiCd/NiMH battery cell count	1-15 cells x 2
PB Battery voltage	2-20V x 2
Smart battery	I/II/III x 2
Current drain for balancing	500mA/cell
Net Weight(gm)	486 gm
Gross Weight	948 gm
Dimension	145 x 105 x 64 mm
