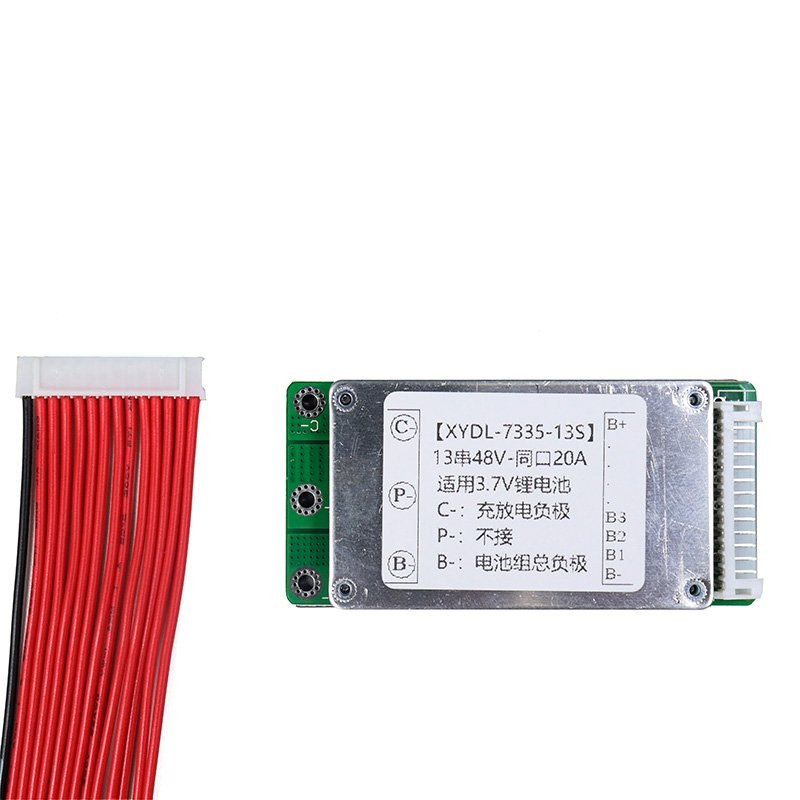

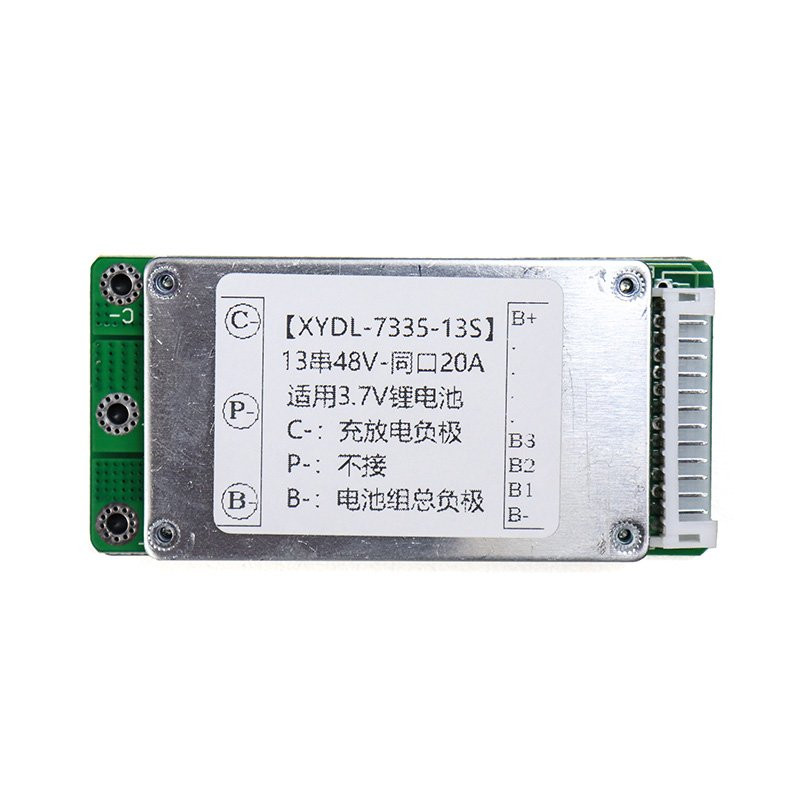

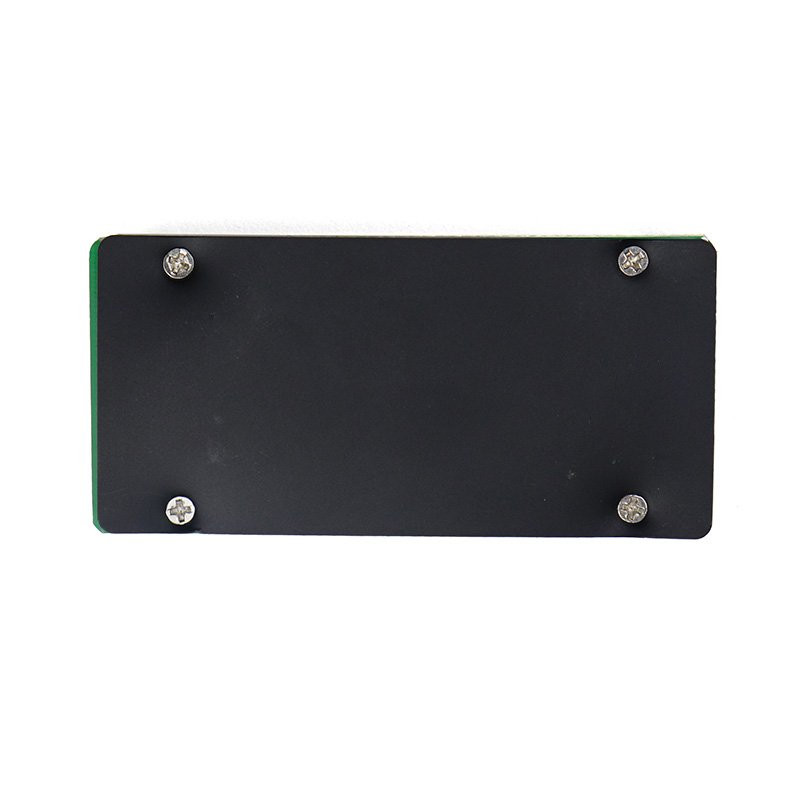

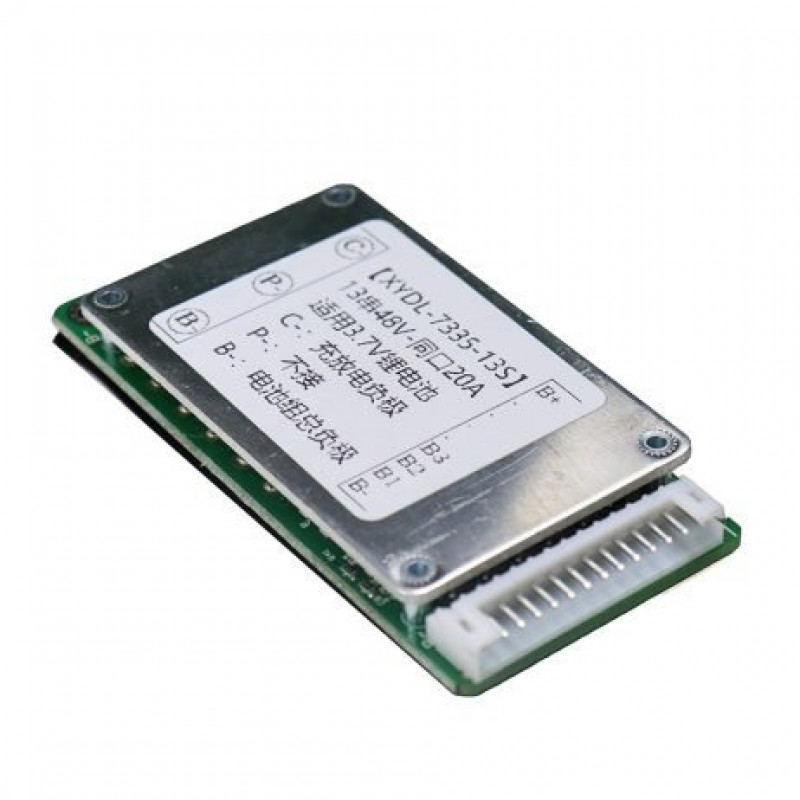

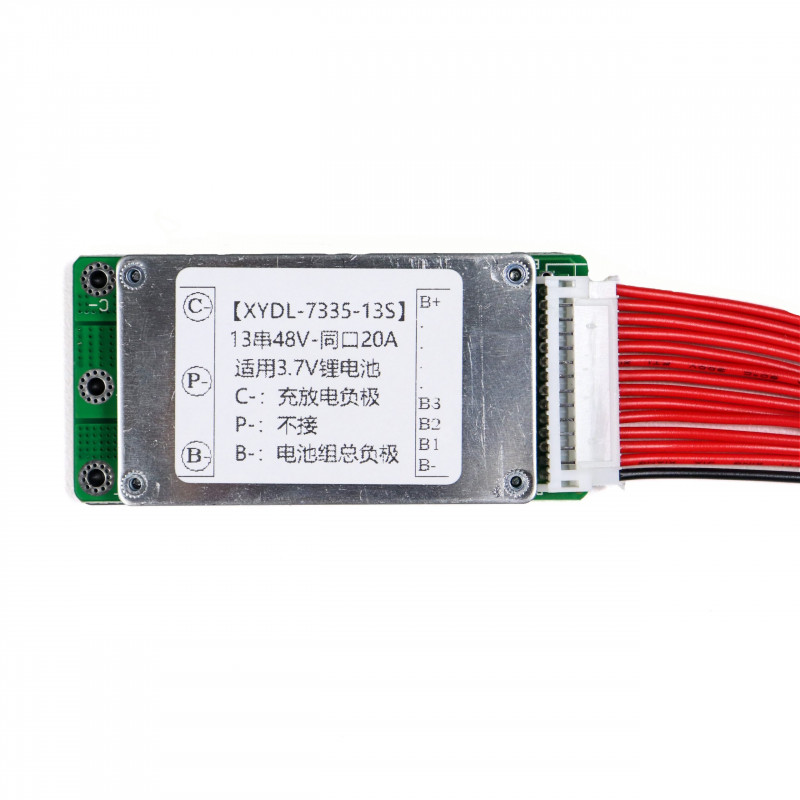

13S 48V 20A Li-ion Battery Protection Board is used for Overcharge protection, over-discharge protection function, short circuit protection function and over current protection function
Features:
- Continuous Discharging Current: 20A
- Working Current: ≤50uA
- Sleep Current(when Over-discharge): ≤10uA
- Working Temperature: -30~80°C
- Instantaneous Discharge Current: 100A
- Charging Voltage: 54.6V
- Charging Current: 20A(Max.)
- Over-charge Detect: 4.28±0.05V
Package Includes:
1 X 13S 48V 20A Li-ion Battery Protection Board
1 X Cabel Wire
Specifications:
| Continuous Discharging Current | 20A |
| Instantaneous Discharge Current | 100A |
| Charging Voltage | 54.6V |
| Charging Current | 20A(Max.) |
| Over-charge Detect: | 4.28±0.05V |
| Protect Delay | 100ms |
| Over-charge Release | 4.08±0.05V |
| Over-discharge | 2.55±0.08V |
| Over-discharge Detect Delay | 50mS |
| Release Voltage | 2.9±0.1V |
| Detect Voltage | 150mV |
| Detect Delay | 15mS |
| Current Detect | 120±5A |
| Resistance | ≤15mΩ |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 803.58 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
13S 48V 20A Li-ion Battery Protection Board
- Product Code: EC-7169
- Availability: 44
-
Rs.681.00
- (Excluding 18% GST)
