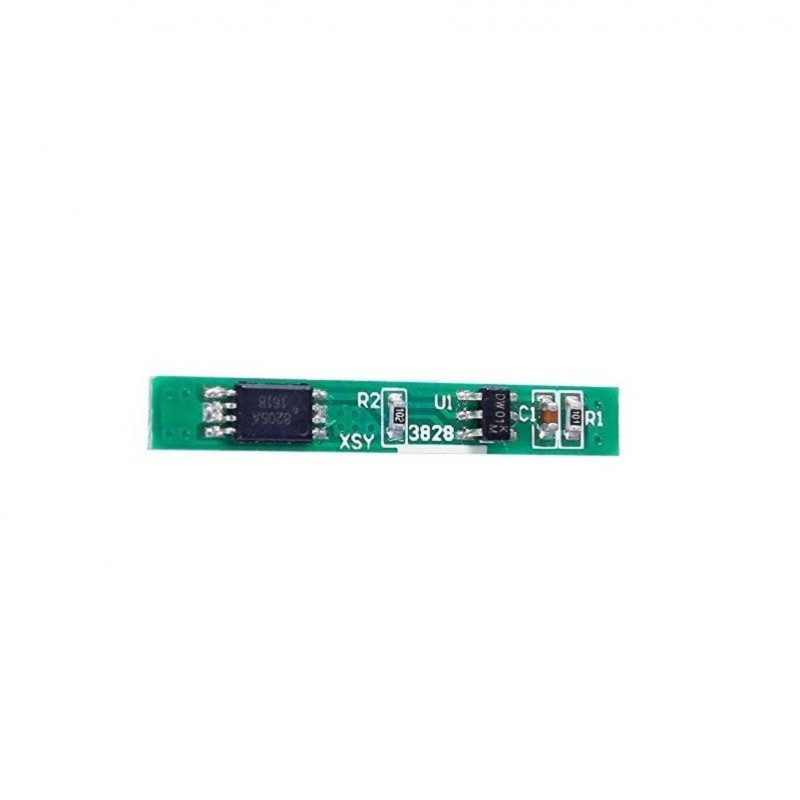

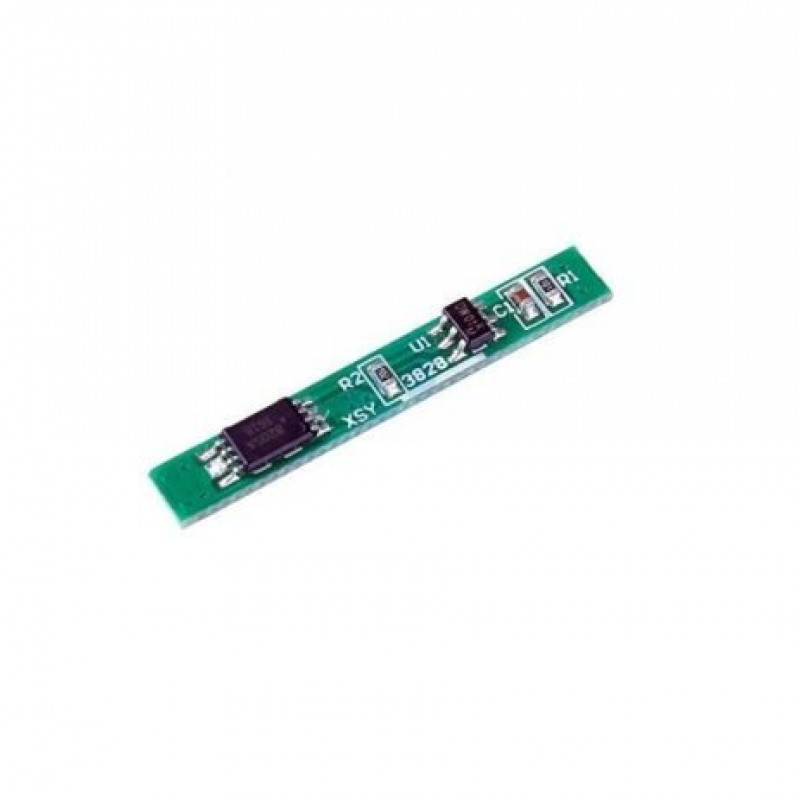

This is 1S 18650 Li-ion Lithium Battery BMS Charger Protection Board for 3.7V Battery.
Protections:
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Over-current protection

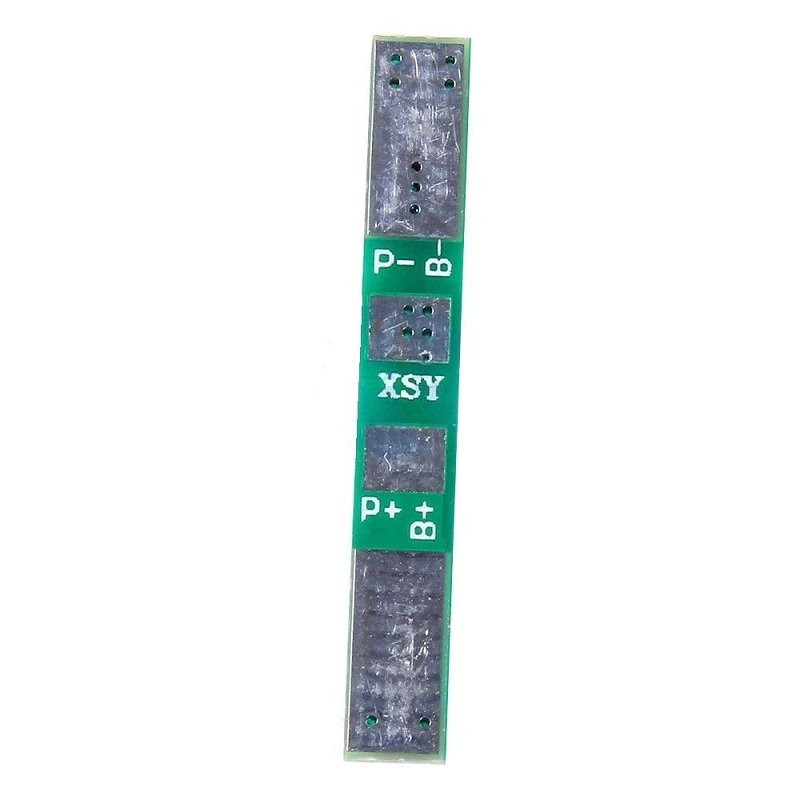

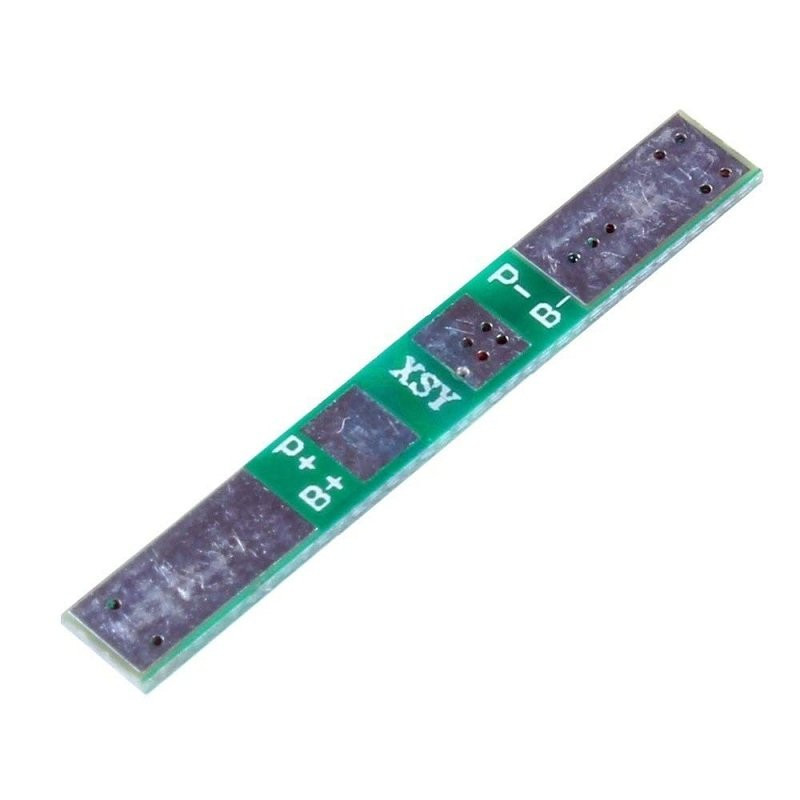

Pins description:
P-: negative of input or output power
P+: positive of input or output power
B-: negative of the battery
B+: positive of the battery
Features:
- High accuracy voltage detection circuit;
- Using high voltage device charging terminal;
- The built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit);
- The battery charge and discharge can control the MOS transistor;
Package Includes:
1 x 1S 18650 Li-ion Lithium Battery BMS Charger Protection Board for 3.7V Battery
Specifications:
Compatibility | Li-ION 3.7V Batteries (18650, 14500) |
Overcharge detection voltage | 4.25±0.05V |
Overcharge Lift the voltage | 4.23±0.05V |
Over-discharge detection voltage | 2.54±0.1V |
Over-current detection current | 3A |
Working current | 1A |
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 31.86 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
1S 18650 Li-ion Lithium Battery BMS Charger Protection Board for 3.7V Battery
- Product Code: EC-7174
- Availability: 37
-
Rs.27.00
- (Excluding 18% GST)
