Key Specifications:-
- Output Voltage 5V
- Type Enclosed Type
- Approx. Wattage 15W
- Features Standard
- Series G3(Reliable)
- Mechanical Form Enclosed
- Warranty 3 Years Warranty
- IP Level Non-Waterproof
- Input Voltage 100-240V auto-select
Features:-
- No load power consumption <0.5W
- All using 105°C long life electrolytic capacitors
- Protections: Short circuit / Overload / Over voltage / Over Temp.
- Meet EMS EN50082-2/EN61000-6-2
- heavy industry level (35~150W)
- Withstand 300VAC surge input for 5 sec.
- High operating temperature up to 70°C
- Withstand 5G vibration test
- Miniature size, high power density
- High efficiency, long life and high reliability
- LED indicator for power on
- 100% full load burn-in test
- Suitable for critical applications
- 3 years warranty
Specifications:-
| AC input voltage range | 85~264VAC, 120~370VDC |
| AC inrush current | Cold start, 65A at 230VAC |
| DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
| Overload protection | >105%, hiccup mode |
| Over voltage protection | 115%~135%, shut off |
| Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
| Working temperature | -20~+70°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 62.5x 51x 28 |
| Case No. | 971A |
| Packing | 108pcs /15.0kg |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 813.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

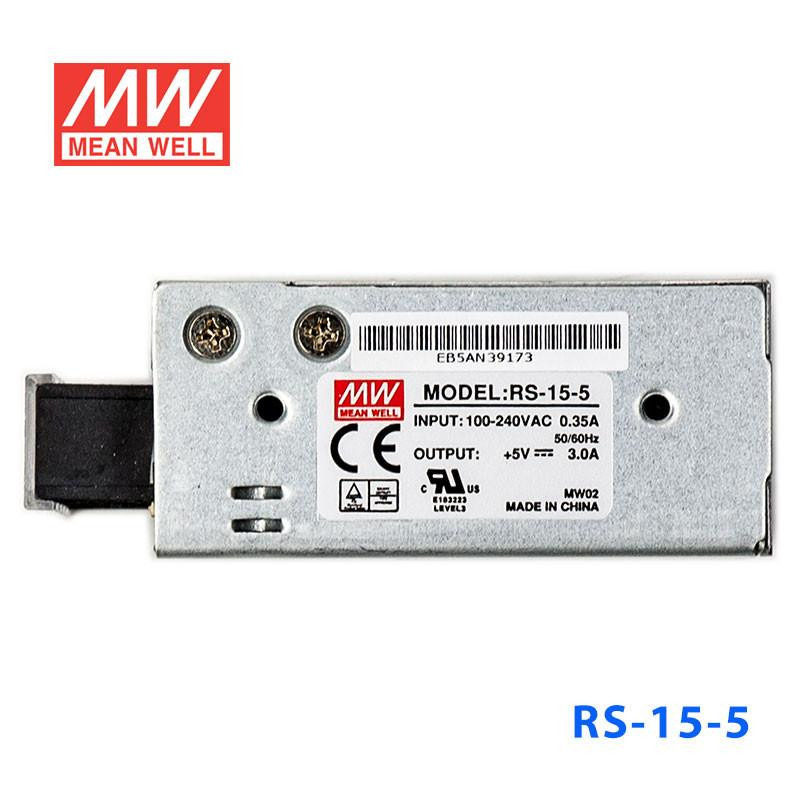

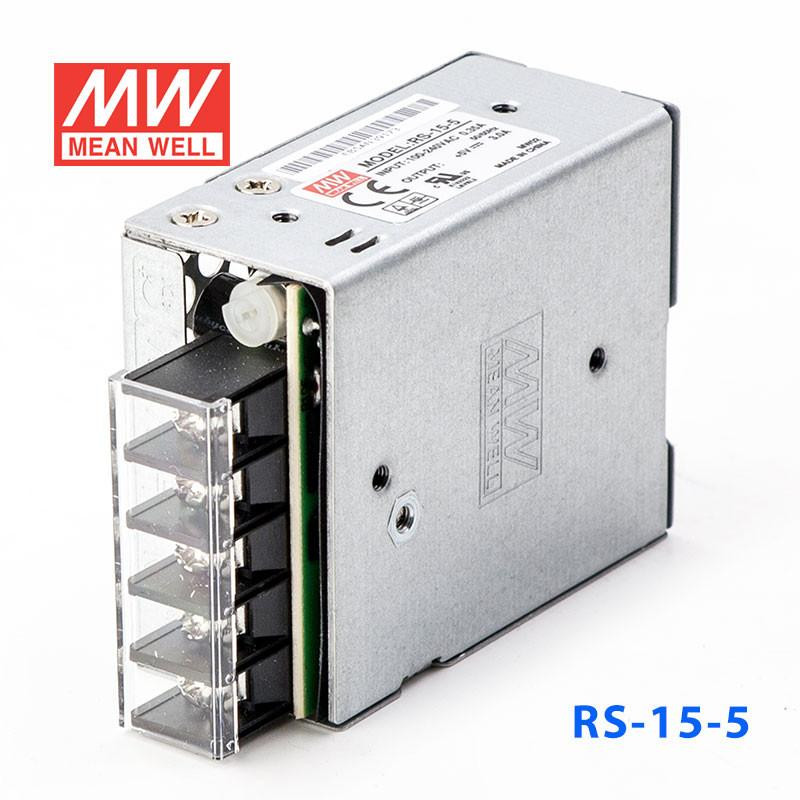

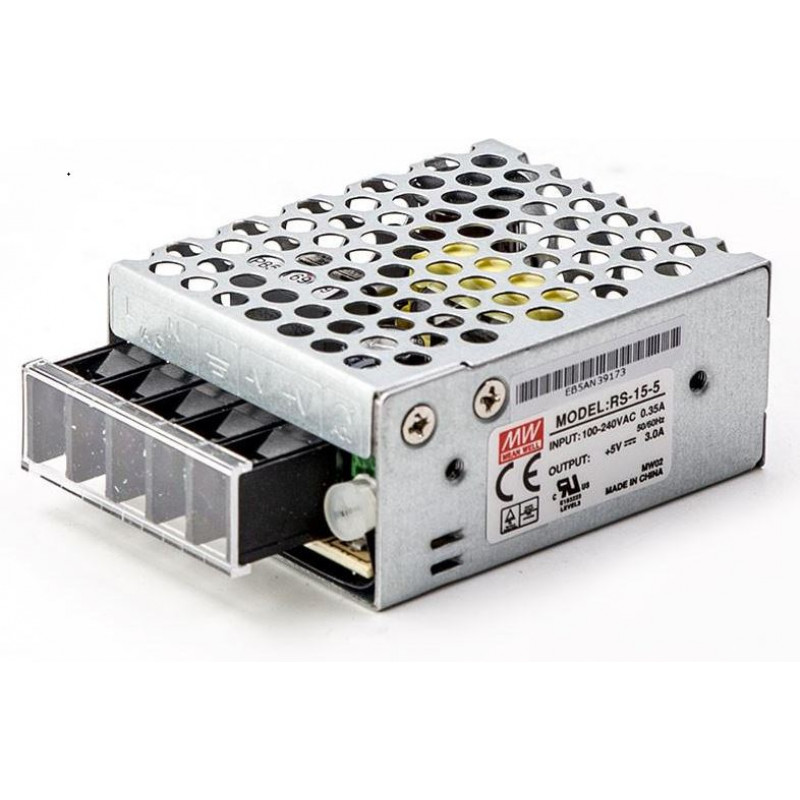

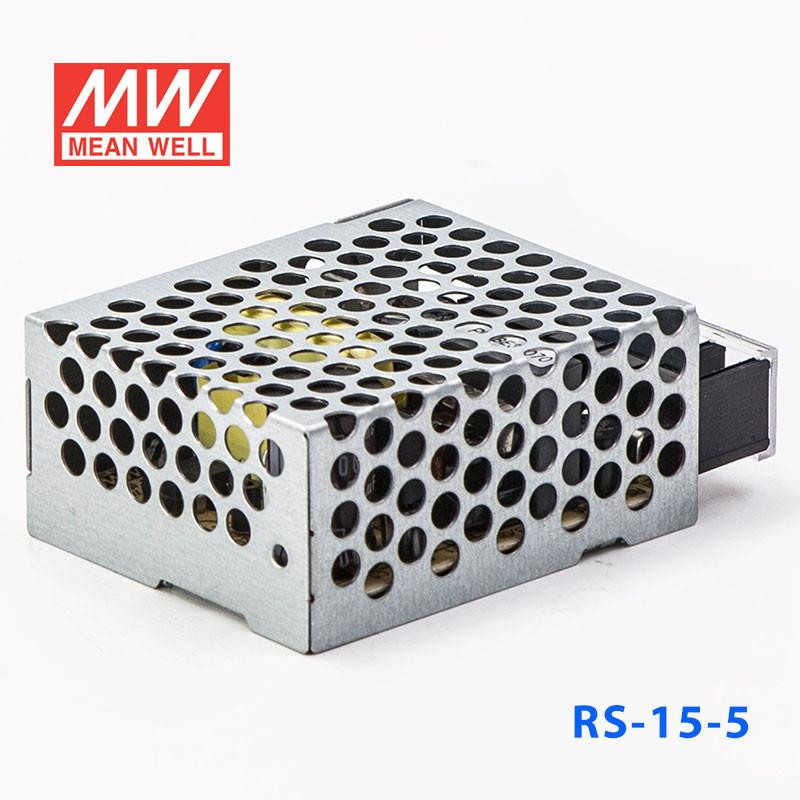

RS-15-5 Mean Well SMPS - 5V 3A - 15W Metal Power Supply
- Product Code: EC-2629
- Availability: 187
-
Rs.689.00
- (Excluding 18% GST)
