Key Specifications:-
- Output Voltage-Channel 1 5 VDC
- Output Voltage-Channel 2 12 VDC
- Output Voltage-Channel 3 -12 VDC
- Output Current-Channel 1 4A
- Output Current-Channel 2 2A
- Output Current-Channel 3 0.5A
- Number of Outputs 3 Output
- Output Power 50 W
- Type Enclosed Type Triple Output
- Features Standard
- Series RT (Reliable)
- Mechanical Form Enclosed
- Warranty 3 Years Warranty
- IP Level Non-Waterproof
- Input Voltage 88 VAC to 264 VAC, 125 VDC to 373 VDC
Features:-
- Universal AC input / Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105°C long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70°C
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications:-
Manufacturer: MEAN WELL
Output Voltage-Channel 1: 5 VDC
Output Voltage-Channel 2: 12 VDC
Output Voltage-Channel 3: -12 VDC
Number of Outputs: 3 Output
Output Power: 50 W
Open Frame/Enclosed: Enclosed
Input Voltage: 88 VAC to 264 VAC, 125 VDC to 373 VDC
Input Current 0.8A/230VAC, 1.3A/115VAC
Output Current-Channel 1: 4 A
Output Current-Channel 2: 2 A
Output Current-Channel 3: 0.5 A
Operating Temperature: -25 TO +70 DEG CEL.
Voltage Adjustable Range: 4.75 ~ 5.5V
Frequency: 47 TO 63Hz
Protection: Short circuit / Overload / Over voltage
Industry: Commercial
Mounting Style: Chassis
Length: 99 mm
Width: 97 mm
Height: 36 mm
Safety Standards: UL62368-1, TUV EN62368-1 approved
Series: RT-50
Model: RT-50B
Brand: MEAN WELL
EMC Emission: Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 02
Unit Weight: 410 g
Related Documents:-
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 1752.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

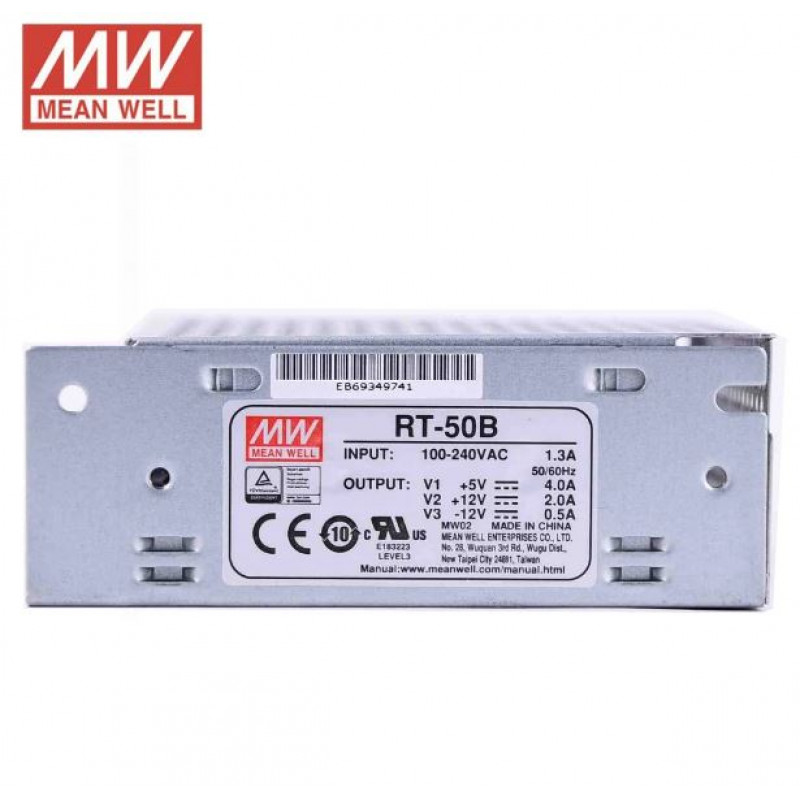

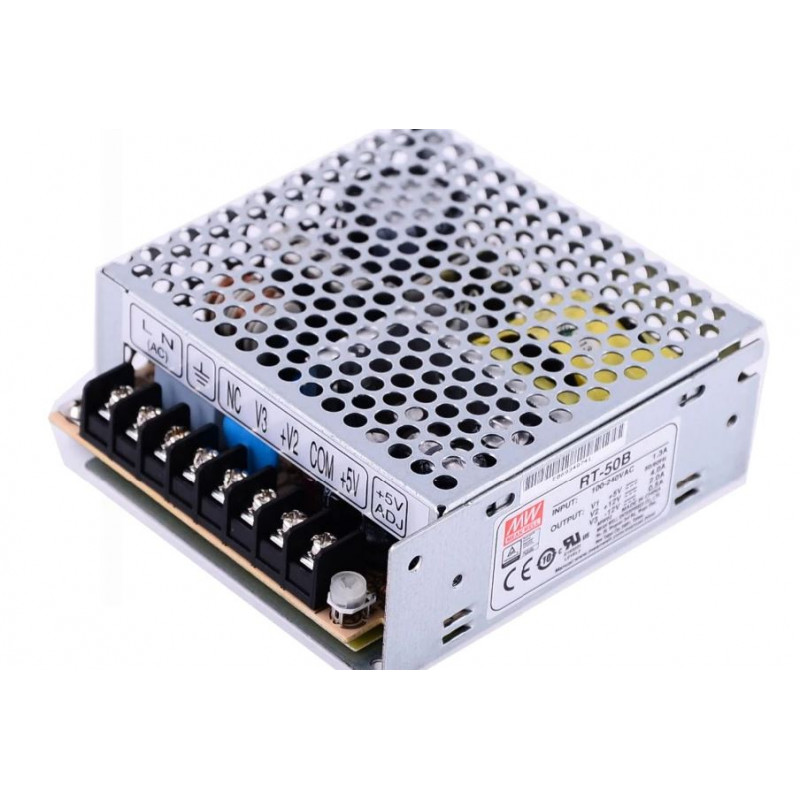

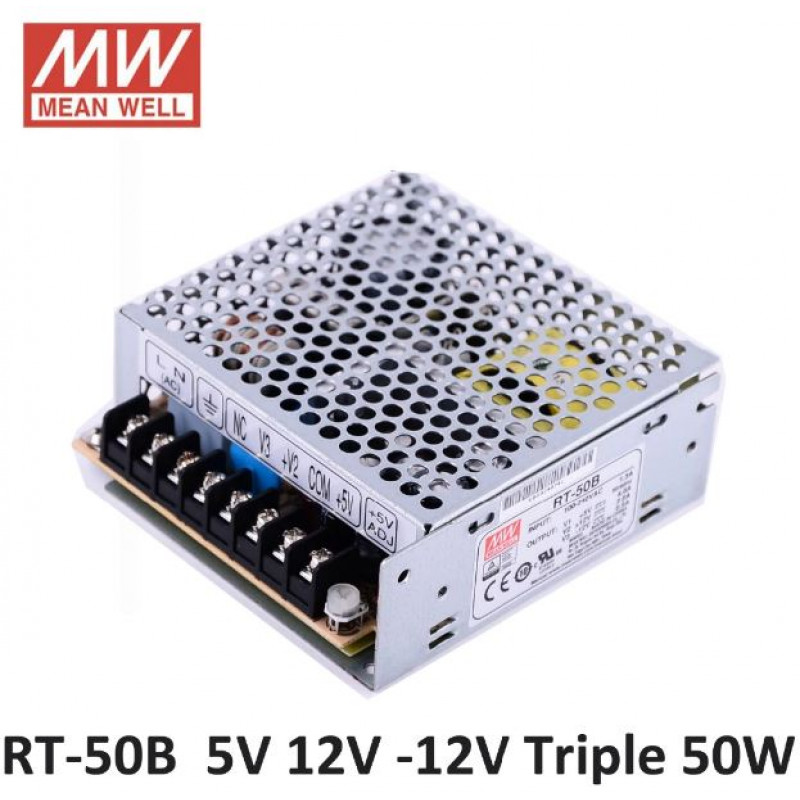

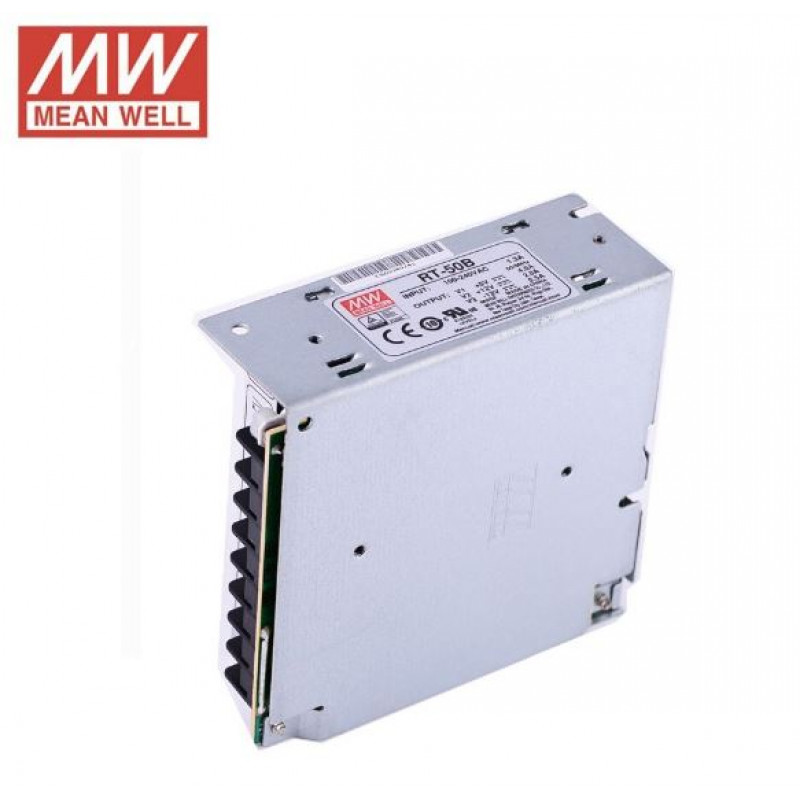

RT-50B Mean Well SMPS (5V 4A), (12V 2A) and (-12V 0.5A) - 50W Triple Output Metal Power Supply
- Product Code: EC-3400
- Availability: 194
-
Rs.1485.00
- (Excluding 18% GST)
