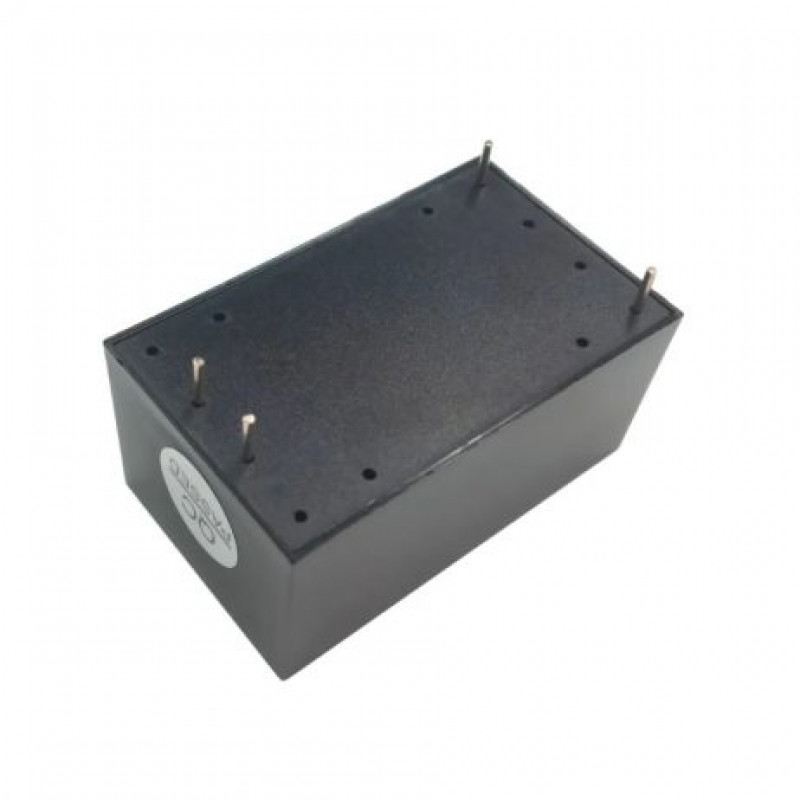

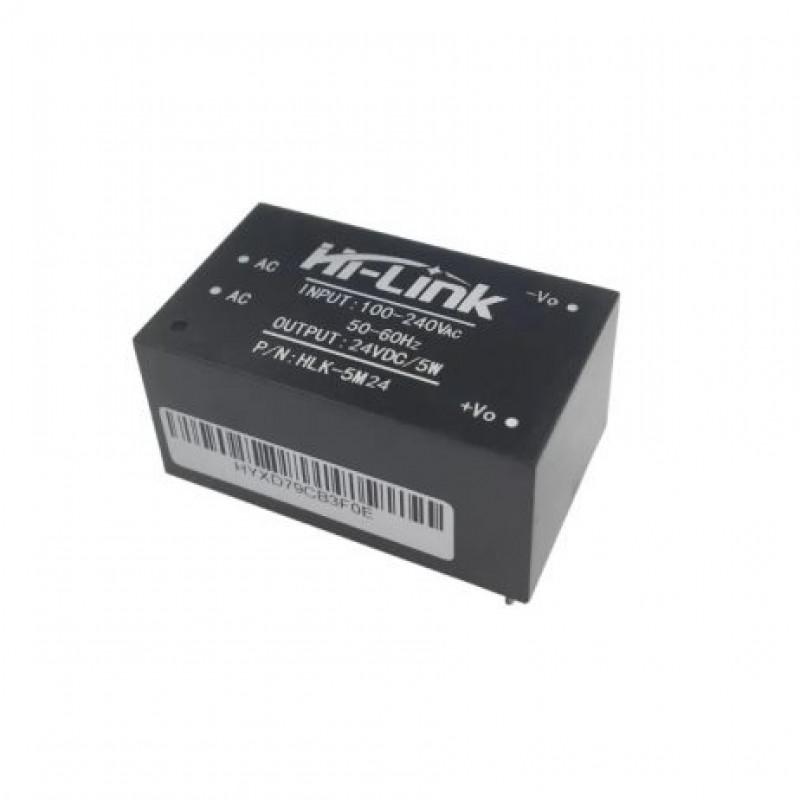

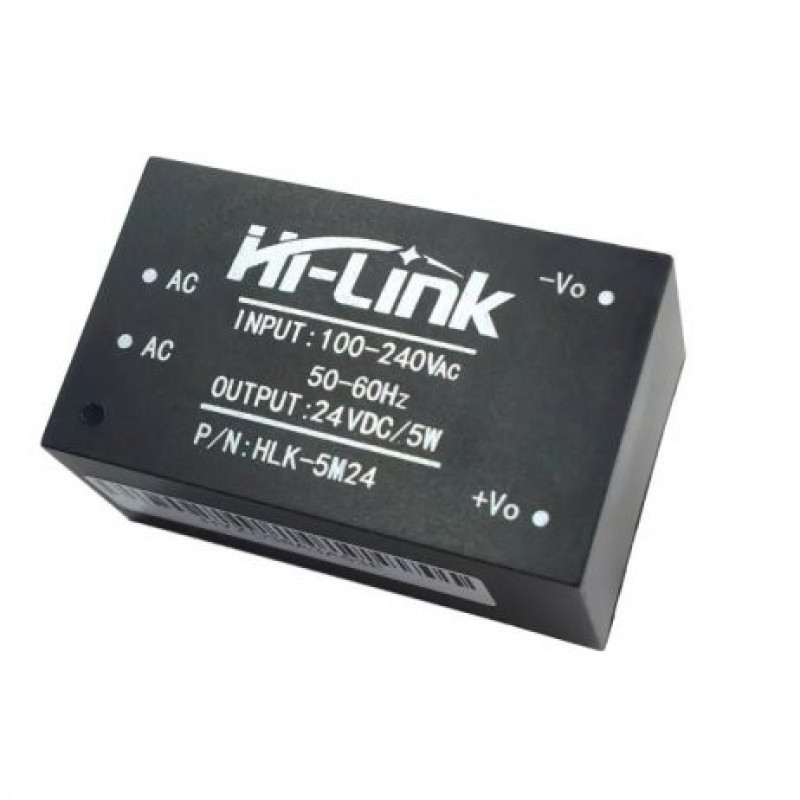

HLK-5M24 Hi-Link 24V 5W AC to DC Power Supply Module is a plastic enclosed PCB mounted isolated switching step-down power supply module. It can supply 24V DC from 100V AC 240V AC and has a power rating of 5 Watt. This makes it perfect for small projects that need 24 volt supply from mains. There are many advantages to these modules, such as low-temperature rise, low power, high efficiency, high reliability, high-security isolation, etc.
This Power Supply Module voltage source is a switching source, so you do not have to worry about fluctuations in the voltage grid. It is designed to be mounted on the PCB and is the ideal solution to power pads that you take. It is widely used in a smart home, automation and control, communication equipment, instrumentation, and other industries.
Features:
- Ultra-thin, ultra-small
- All voltage input (AC: 100 ~ 240V)
- Low ripple and low noise
- Output overload and short circuit protection
- High efficiency, high power density
- The product is designed to meet the requirements of the EMC and Safety Test
- Low power consumption, environmental protection,no-load loss <0.1W
Specifications:-
| Model No. | HLK-5M24 |
| Brand | Hi-Link |
| AC Input Voltage | 100 ~ 240 V |
| Output Current(mA) | 208mA |
| Stable Output Voltage (V DC) | 24V |
| Output Power(Watt) | 5 |
| Efficiency | 69% |
| Color | Black |
| Dimensions (mm) LxWxH | 44 x 20 x 25 |
| Weight(g) | 28 |
Package Includes:
1 x HLK-5M24 Hi-Link 24V 5W AC to DC Power Supply Module
| Brand/Manufacturer | Hi-link |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 318.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
HLK-5M24 Hi-Link 24V 5W AC to DC Power Supply Module
- Product Code: EC-4684
- Availability: 465
-
Rs.241.00
- (Excluding 18% GST)
