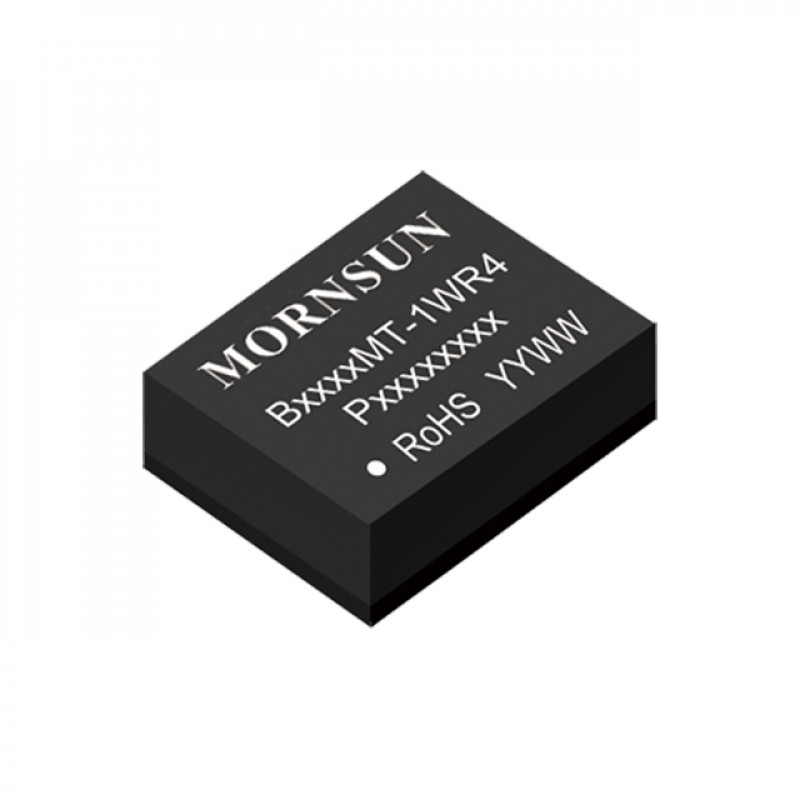

This B0505MT-1WR4 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module from Mornsun is specially designed for applications where an isolated voltage is required in a distributed power supply system and especially suitable in applications such as digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.

Equipped with numerous features, including a subminiature thin DFN package, high efficiency and an operating temperature of -40°C to +125°C.

Features:

1. Meet UL, CE, CB requirements.
2. Ultra-small, ultra-thin DFN package (9.00 x 7.00 x 3.10mm)
3. Isolation capacitance as low as 8pF
4. I/O isolation test voltage 3k VDC
5. Operating ambient temperature range: -40℃ to +125℃
6. High efficiency up to 85%
7. Continuous short-circuit protection
8. IEC62368/UL62368/EN62368 approved
9. AEC-Q100 approved

Specifications:-

Model Number:            B0505MT-1WR4

Input Voltage range:    4.5-5.5 Vdc

Nominal voltage:         5 Vdc

Output voltage:           5V

Output current:           200/20(mA)

Wattage:                    1W

Isolation Voltage:        3 kVdc

Package:                    Ultra-Thin DFN Package

Size:                          9.00mm(Length) X 7.00mm(Width) X 3.10mm (Height)

Weight:                      0.5gm

Package Includes:-

1 x B0505MT-1WR4 Mornsun 5V to 5V DC-DC Converter 1W Power Supply Module

Related Documents:-

 Mornsun B0505MT-1WR4 Datasheet
