Features:
- High efficiency up to 96%
- No-load input current as low as 0.3mA
- Operating ambient temperature range: -40 to +85
- Support the negative output
- Output short-circuit protection
- Pin-out compatible with LM78XX linear regulators
- EN62368 approved
Specifications :-
DC-DC CONVERTER
I/p Voltage range:6-36vdc
Nominal voltage:24Vdc
O/p voltage:3.3V
O/p current:1000(mA)
wattage:1W
Isolation: No
Package: SIP
Package Includes:
1 x K7803M-1000R3 Mornsun 3.3V Output DC-DC Converter 1W Power Supply Module - 3-SIP Package
Download DATASHEET :
Download| Brand/Manufacturer | Mornsun |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 388.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

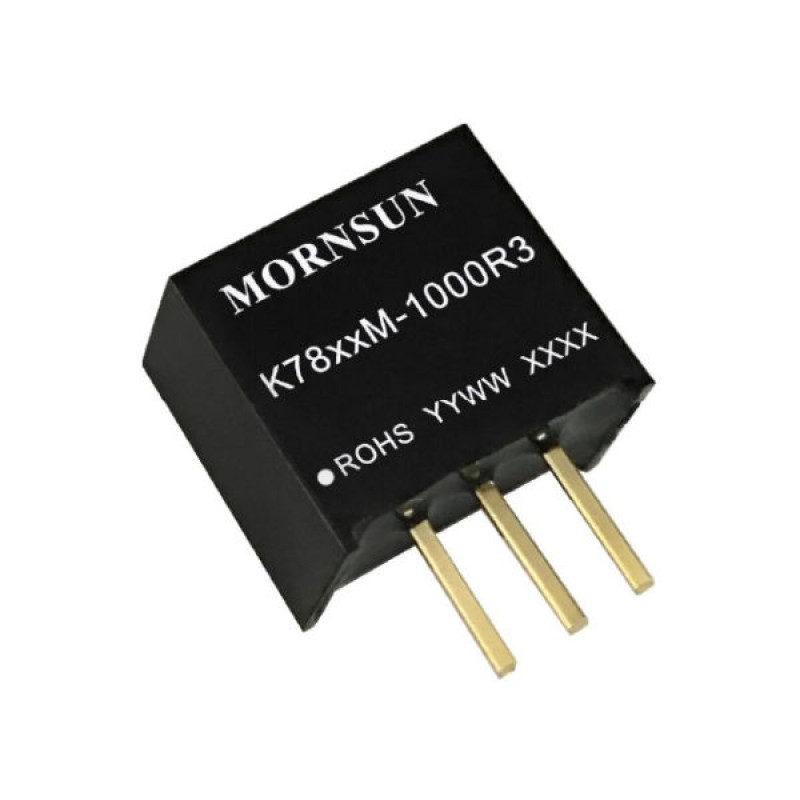

K7803M-1000R3 Mornsun 3.3V Output DC-DC Converter 1W Power Supply Module - 3-SIP Package
- Product Code: EC-9512
- Availability: 2
-
Rs.329.00
- (Excluding 18% GST)
