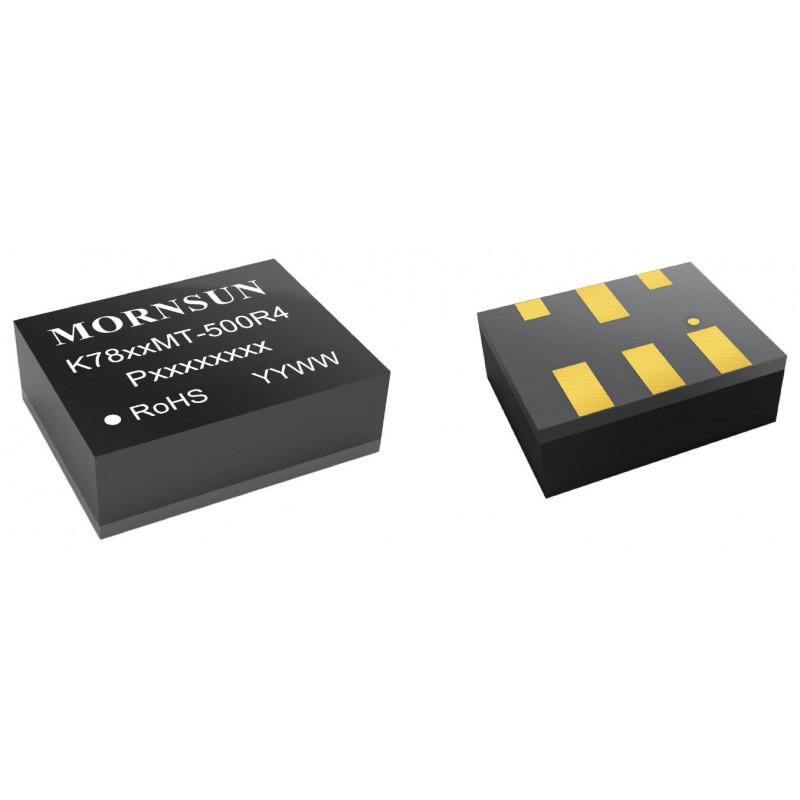

  • K7803MT-500R4 Mornsun +3.3V/-3.3V Output DC-DC Converter 0.5W Power Supply Module - Ultra Small DFN SMD Package

FEATURES :

  • Ultra-small, ultra-thin DFN package(9.00 x 7.00 x3.10mm)
  • Operating ambient temperature range: -40 to+105
  • High efficiency up to 92%
  • No-load input current as low as 0.1mA
  • Output short-circuit protection
  • AEC-Q100 approved (under testing)



Specifications :-

DC-DC Converter

I/p Voltage range:4.5-36vdc

Nominal voltage:24Vdc

O/p voltage:3.3V

O/p current:500(mA)

wattage:0.5W

Isolation:No

Package:DFN


Package Includes:

1 x K7803MT-500R4 Mornsun +3.3V/-3.3V Output DC-DC Converter 0.5W Power Supply Module - Ultra Small DFN SMD Package


Download DATASHEET :


Download


Brand/Manufacturer Mornsun
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 270.22 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

K7803MT-500R4 Mornsun +3.3V/-3.3V Output DC-DC Converter 0.5W Power Supply Module - Ultra Small DFN SMD Package

  • Product Code: EC-9515
  • Availability: 14
  • Rs.179.00
  • (Excluding 18% GST)
