These modules are unique in that they combine both a DC-DC converter to accept a wide input voltage range coupled with an LDO linear regulator to provide a well-regulated output.
Features:
- 5V Output
- 8 to 40V Input
- 700mA continuous current independent of input voltage
- Up to 1A intermittent current
- Short circuit and thermal protection built-in
- Small package compatible with standard 3 pin TO-220 regulator pinout
Specification:
- VIN Input Voltage Range 8 to 40V
- IO Maximum Output Current 700mA
- IPEAK Peak Surge Current 1000mA
- VO Output Voltage 5V
- IO Max Output Current (Continuous) 700mA
- Iq Quiescent current 5mA typical
- Dimensions L x W x H (not including header) 25 x 16 x 5.8mm
Package Includes:
1 x 5V DD38LOSA DC-DC Converter,5W Power Supply Module
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 388.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

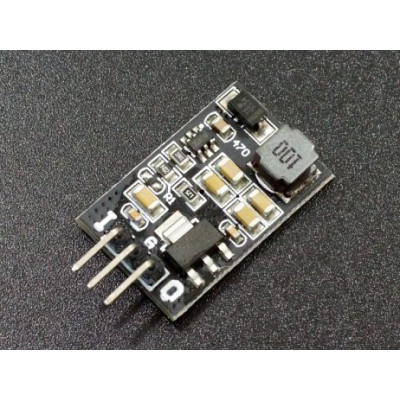

5V DD38LOSA DC-DC Converter 5W Power Supply Module
- Product Code: EC-7909
- Availability: 2
-
Rs.384.00
- (Excluding 18% GST)
