Wide input voltage range AC 85-265v 50/60Hz, output DC 24V 6A, the output power is 100W. Perfectly designed and well constructed, small and compact size with an indicator. Made of double-sided PCB, good stability and reliability; more suitable for power supply in industrial control systems. The power supply has overcurrent protection, overload and short circuit protection.
Features:
- The power supply has overcurrent protection, overload protection and short circuit protection
- AC85 ~ 265V wide voltage input, DC 24V power
- Small size, with indicator light
- The output power is up to 100W
- Double-sided PCB design, performance is more stable, more reliable
Package Includes:
1 x 100W AC-DC 85-265V to, 24V 6A Switching Board
Specifications :-
| Output Voltage (VDC) | 24 |
| Frequency(Hz) | 50Hz / 60Hz |
| Operating Temperature Range (C) | -40 to 85 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 600.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

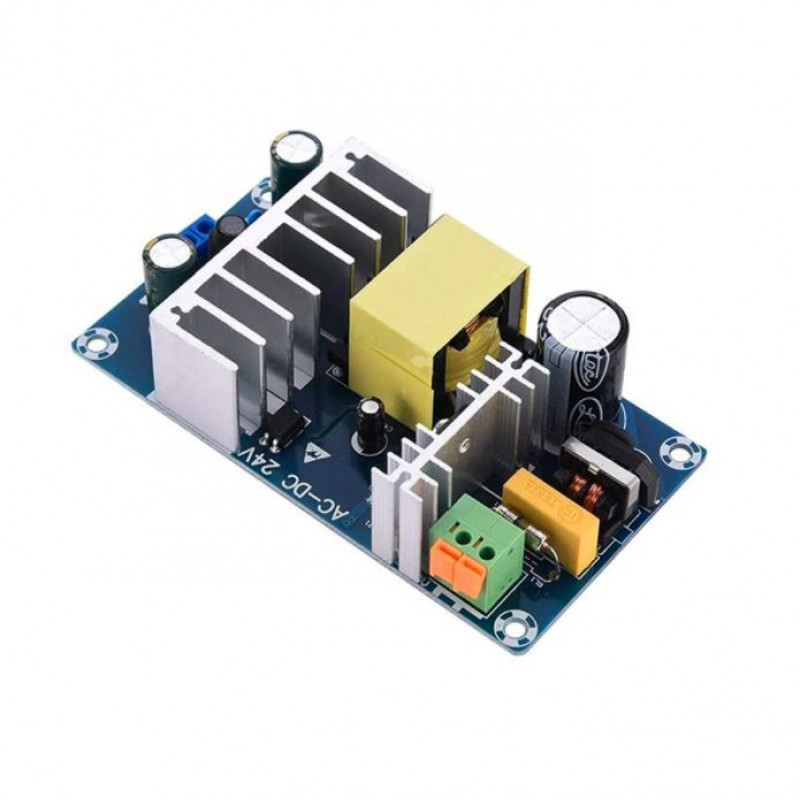

100W AC-DC 85V-265V to 24V 4A-6A Switching Power Board
- Product Code: EC-9371
- Availability: 30
-
Rs.509.00
- (Excluding 18% GST)
