Pultruded carbon fiber square tube(Hollow) manufactured from 100% unidirectional carbon fiber, which gives them excellent strength along their length but does make them vulnerable to crushing forces.
Pultruded tubes are ideal for scale aircraft, gliders, helicopter or any construction that requires strength, rigidity, and lightness. The Pultrusion process allows incredible tiny diameter tubes to be produced.
Pultrusion :
Pultrusion is a method of manufacturing continuous lengths of a fibre-reinforced section by pulling continuous strands of carbon fiber through resin and a former before curing the resin all in one process.
Features:
- Made of Carbon Fiber material
- High Strength
- Stable dimension and UV resistant
- High Corrosion Resistance
- Electrical & Thermal Non-Conductivity
Package Includes:
1 x Pultruded Square Carbon Hollow Fiber Tube 6x6mm(OD) x 5mm(ID) x 1000mm(L)
Specifications :-
Production process | Pultruded |
Thickness of material(mm) | 0.5 |
Different densities | 1.5g/cm^3 |
Glass Transition Temperature | 130C |
Inner Diameter (mm) | 5 |
Outer Diameter(mm) | 6 x 6 |
Length (mm) | 1000 |
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 565.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

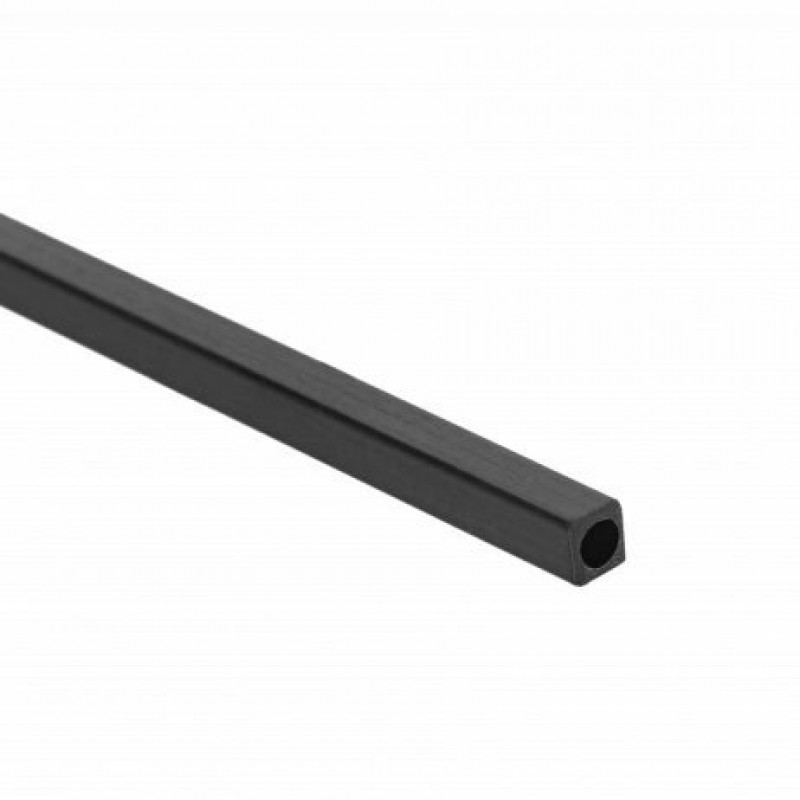

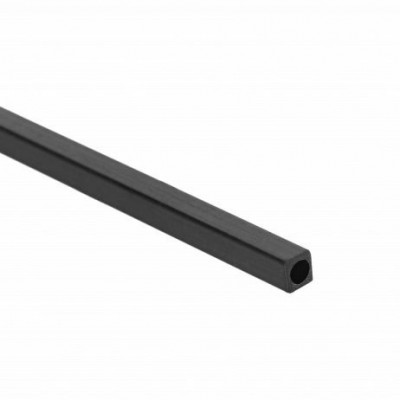

Pultruded Square Carbon Hollow Fiber Tube 6x6mm(OD) x 5mm(ID) x 1000mm(L)
- Product Code: EC-8315
- Availability: 95
-
Rs.254.00
- (Excluding 18% GST)
