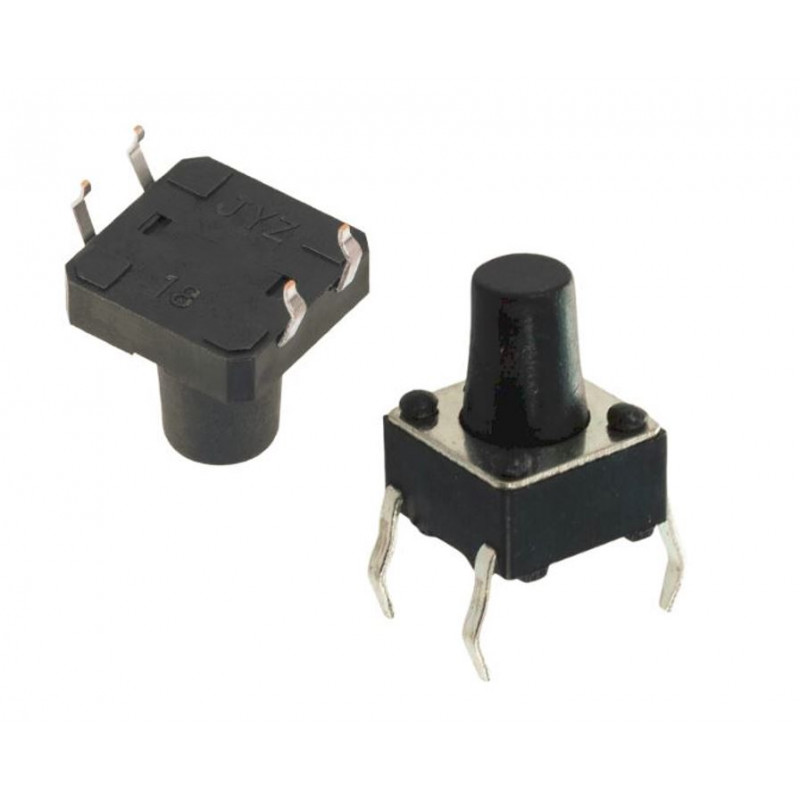

Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch - 10mm Height.

12x12x10 mm Tactile Push Button Switch is widely used as a standard input “button” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Features and Specifications:-

• Operating Voltage : 12V
• Operating Current : 50mA
• Tactile/Microswitch
• Through-hole design
• Shaft Shape : Round
• Contact Material : Brass
• Contact Resistance : 50mΩ
• Insulation Resistance : 100MΩ
• Operating Temperature Range : -20°C to +70°C
• Operation Force : 3-5N
• Body Material : Plastic
• Pin Count : 4-pin
• Length : 12mm
• Width : 12mm
• Height : 10mm
• Weight : 1gm

Package Includes:-

1 x Push Button Switch - 12mm - 4 pin - Tactile/Micro Switch - 10mm Height
