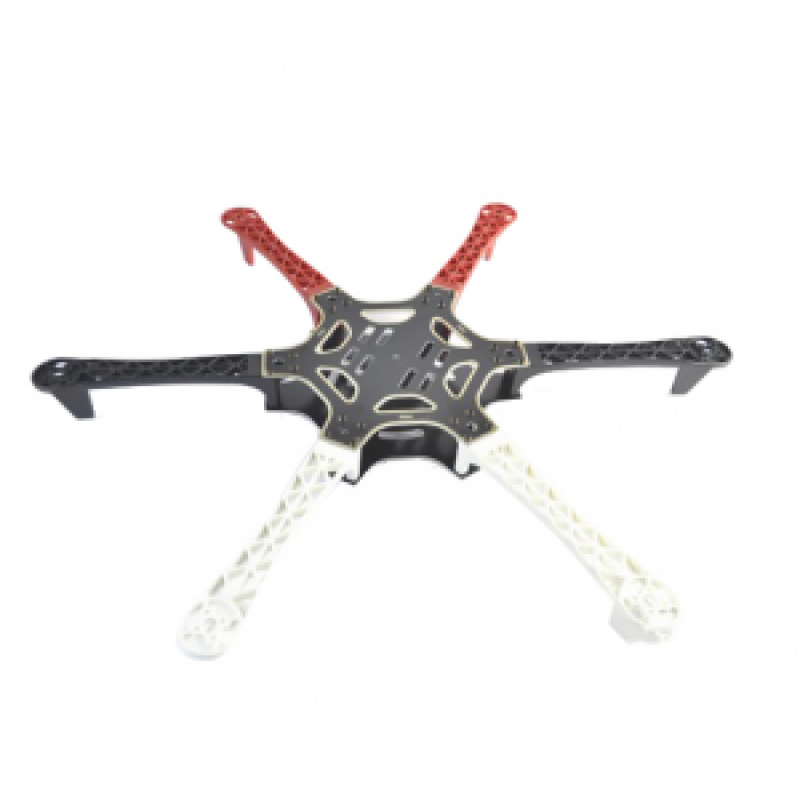

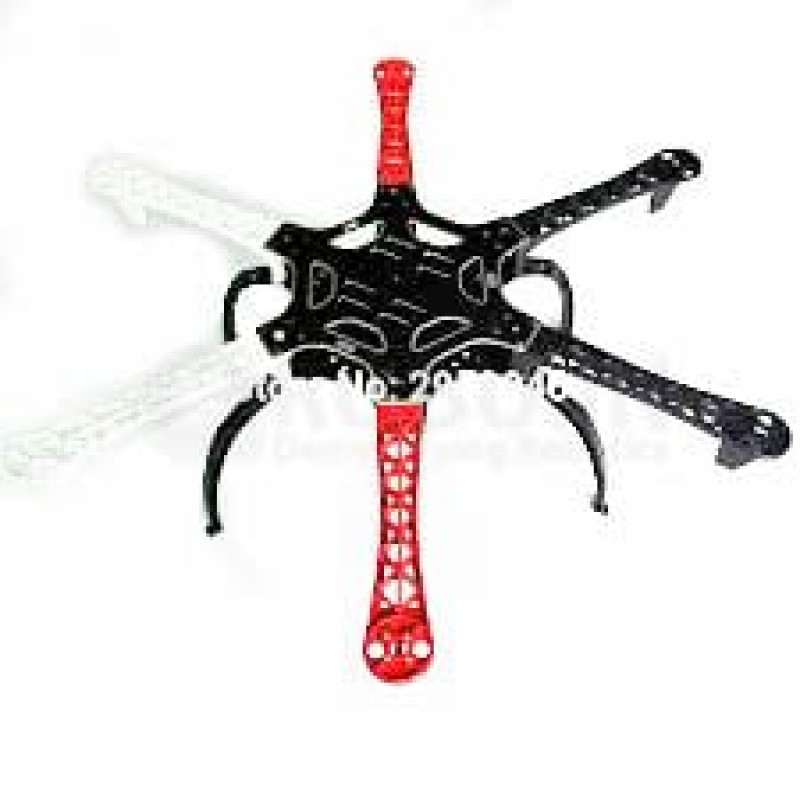

This is Hexacopter Frame which employs 6 arms to get into the air. There are several advantages of a hexacopter frame over a quadcopter one, justifying the extra price tag.

For 6 arms, of course, there are more motors with a hexacopter meaning more power, meaning bigger batteries. This increase in batteries leads to an increase in flight time, which is also nice. Due to these extra motors, a hexacopter is also more stable than your quadcopter equivalent.

Another great advantage of using hexacopters is if for any reason your quadcopter loses a motor, it goes down but with a hexacopter, on the other hand, in the majority of cases you will be able to land safely with one or maybe even two motors down; an extra inbuilt guarantee on your beloved copter.

This F550 Hexa-Copter Frame is made from Glass Fiber which makes it tough and durable. They have the arms of ultra-durable Polyamide-Nylon which are the stronger molded arms having a very good thickness so no more arm breakage at the motor mounts on a hard landing. The arms have support ridges on them, which improves stability and provides faster forward flight.

The arms of the frame are colored as 2-red, 2-white, and 2-black which can guide you to fly in the right direction. The design allows the whole take-off weight to be controlled at about 1200-2400 gm.

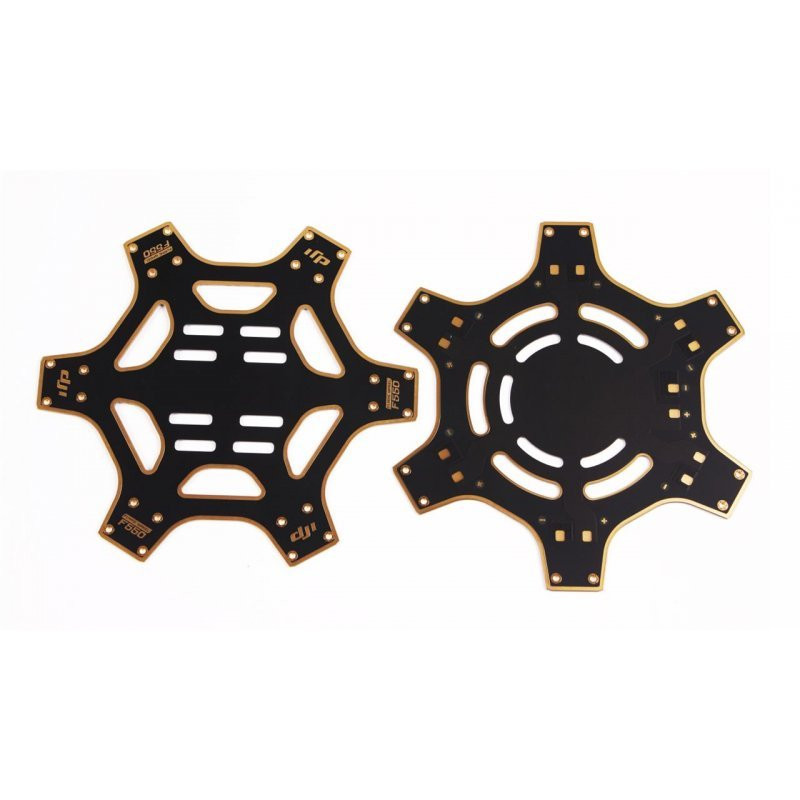

TheF550 Glass Fiber Mini Quadcopter Frame is strong, light, and has a sensible configuration including a PCB(Printed Circuit Board) with which you can directly solder your ESCs to the Quadcopter. So, making the Quadcopter build fast and easy. So, it avoids the use of extra PDB(Power Distribution Board) and makes the mounting clean and neat. The F550Quadcopter Frame is highly flexible frame during mounting of various components like flight controller, battery etc.

The frame has the wheelbase of 550mm and weighs around 620gm. It features mounting tabs at the front and rear end on the bottom plate of the mainframe for mounting cameras and other accessories.

It comes with pre-threaded brass sleeves for all of the frame bolts, so attaching the arms to the mainframe is done within few minutes. Also, it requires one size of bolt for the overall build and thus a unique one-size hex wrench which makes hardware mounting very convenient. This feature ofQ450 Quadcopter Frame makes them so easy to assemble and disassemble.

Such lighter weight, higher strength Aero dynamic structure of this F550frame featuring PA66 arms with glass fiber integrated frame make it the first choice of our customer.


Note: The dimensions and weight may have 2% error.


Features :

  1. Made by advanced engineering material, super strong & smooth
  2. Easy to assemble and disassemble.
  3. The frame is tough and durable.
  4. The main glass fiber frame has good strength.
  5. The arm equips support ridges for better and faster forward flight.
  6. Featurespre-threaded brass sleeves.
  7. In-built power distribution board.


Package Includes :

1 x F550 quadcopterFrame(Top and Bottom) with Integrated PCB.

6 x F550 arms (Red+White+Black).

2 x Accessories set.


Specifications :-

Model

F550

Material

Glass Fiber + Polyamide Nylon

Wheelbase (mm)

550

Weight (gm)

620

Arm Size (L x W) mm

220 x 40

Motor Mounting Hole Dia. (mm)

3

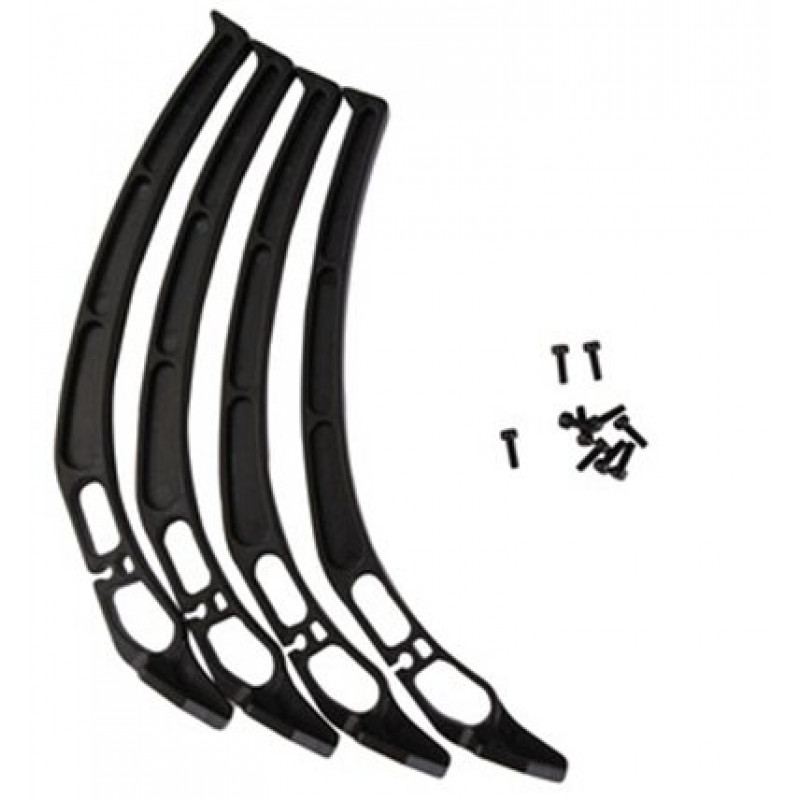

Landing Gear Material

ABS Plastic

Landing Gear Height (mm)

200

Landing Gear Color

Black

Landing Gear Weight (gm)

75

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2465.02 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

F550 Hexa-Copter Frame, Landing Gears and Integrated PCB Kit

  • Product Code: EC-5814
  • Availability: 32
  • Rs.1849.00
  • (Excluding 18% GST)
