If you are new in multirotor/drone hobby area and want to try out some basic multirotor designs so as to enhance your basic knowledge about multirotors!!! Don't wait and get this combo of 615 Magnetic Micro Coreless Motor for Micro Quadcopters 2xCW & 2xCCW.

These lightweight brushed DC coreless motors are the best choice for your small drone, offering you an excellent affordable price when compared with costly BLDC motors.

This 615 Magnetic Micro Coreless Motor is very compact and lightweight DC motor nicely crafted for perfectly matching with your small 100mm like multirotor frames.

They are rated at 60000 RPM which is more than needed to lift and push your drone to the target. These are less noisy with low resistance. The only drawback of using coreless is the amount of torque they provide, as they are High Speed and Low Torque motors.


Instruction :

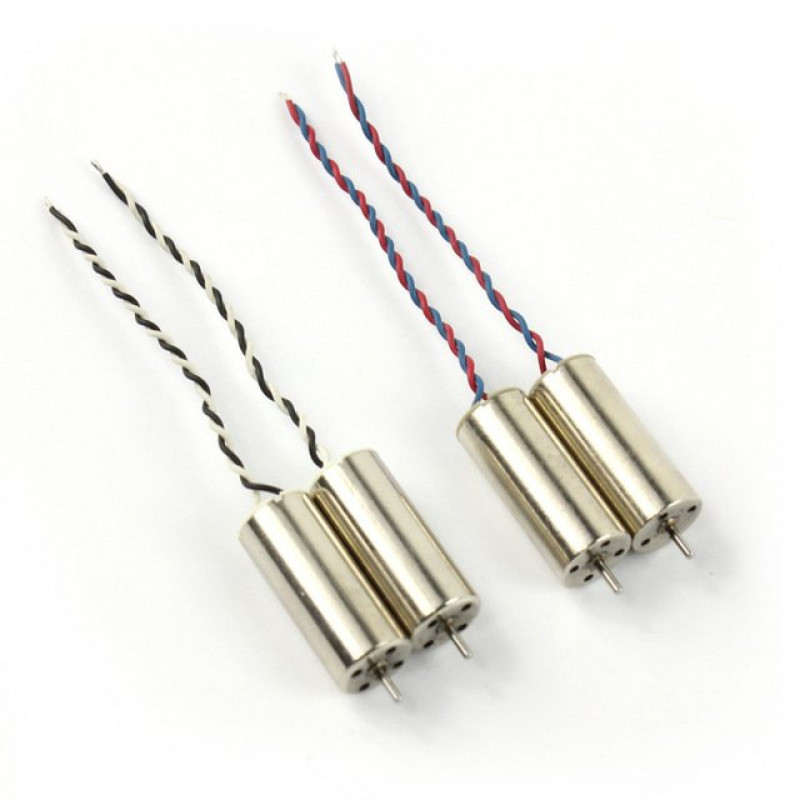

615 Magnetic Micro Coreless Motor with Red and the Blue wire is CW rotation motor & Black and the White wire is CCW rotation motor.


Features :

  1. 615 Coreless motor is High Speed and Low Torque motor.
  2. Less noisy operation.
  3. Offers low resistance.
  4. They are equipped with high-quality magnets.
  5. This coreless motor supports 1S battery.


Package Includes :

2 x 615 Magnetic Micro Coreless Motor (CW)

2 x 615 Magnetic Micro Coreless Motor (CCW)



Specifications :-

Model

615

Rated Speed (RPM)

60000

Rated Voltage(V)

3.7

Rated RPM

41000

Rated Load Current (mA)

580

Operating Temperature (C)

-20 to 60

Shaft Diameter (mm)

1

Compatible Propellers Size (inch)

2 ~ 2.5

Motor Color

Silver

Motor Material

Metal

Motor Diameter(mm)

6

Motor Length (mm)

15

Cable Length (cm)

6



Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 777.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

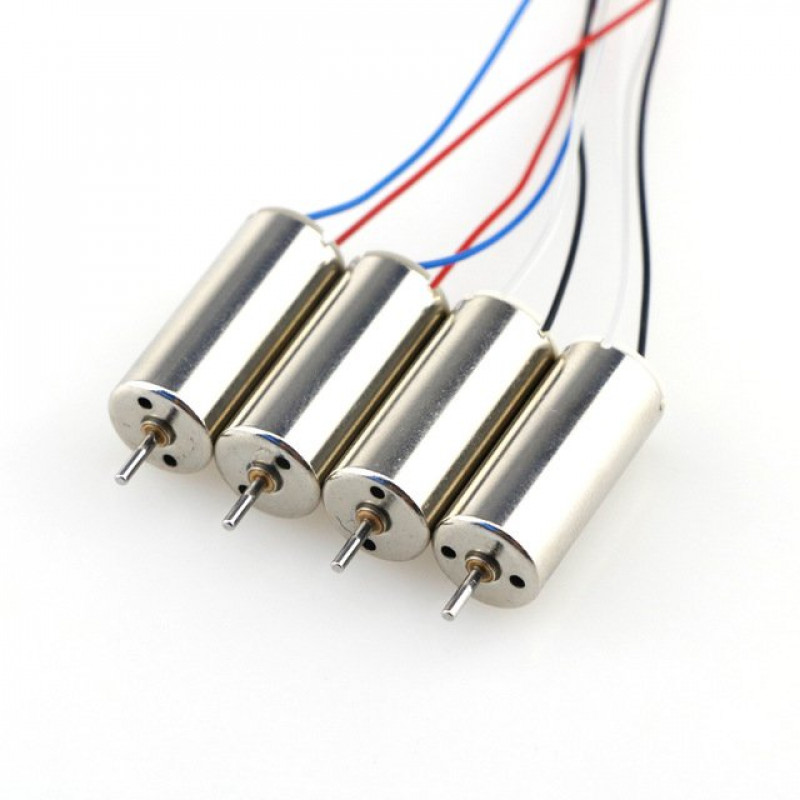

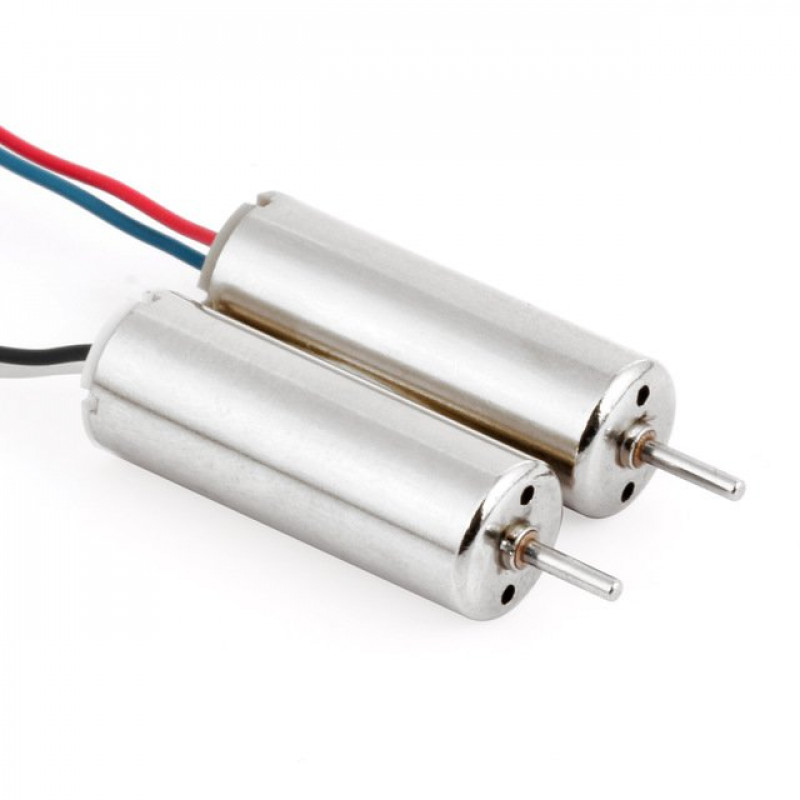

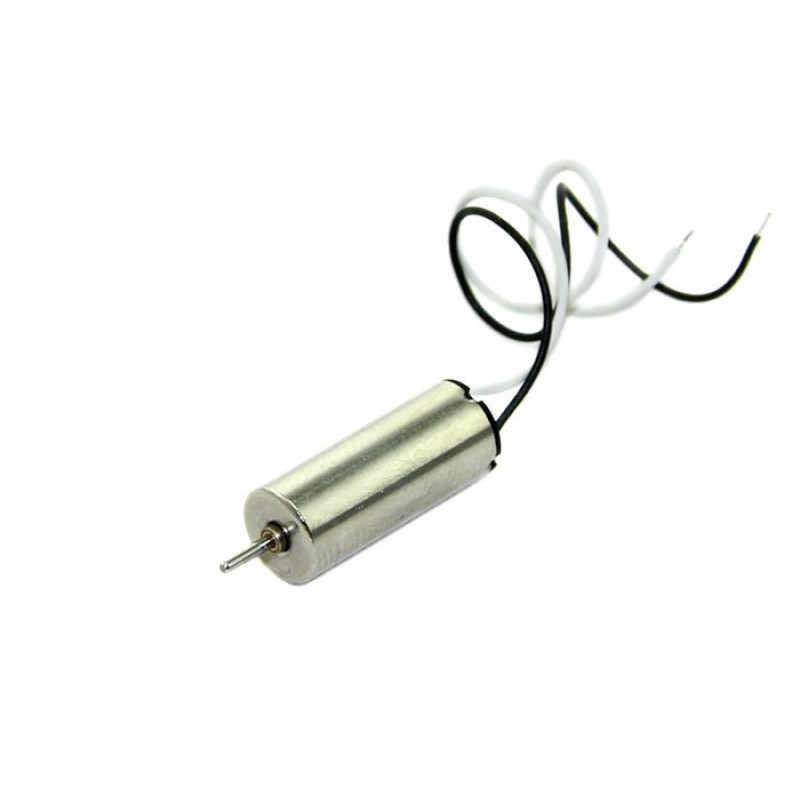

615 Magnetic Micro Coreless Motor for Micro Quadcopters - 2xCW and 2xCCW

  • Product Code: EC-6027
  • Availability: 10
  • Rs.744.00
  • (Excluding 18% GST)
