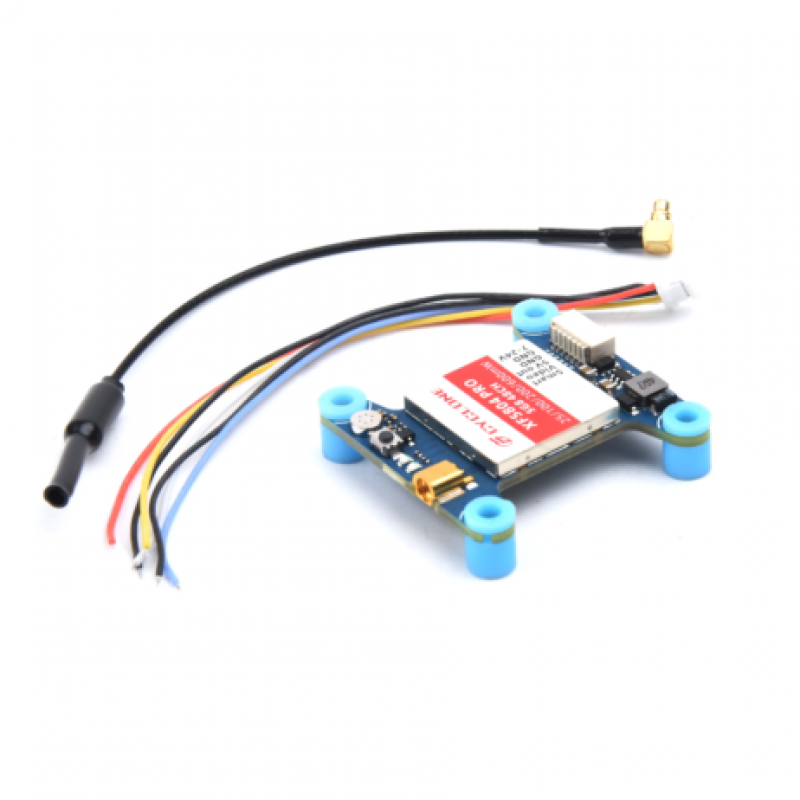

This is Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter.

XF5804 5.8G 48CH Long Range Tiny little Noise and Compact FPV Transmitter Support Smart Audio OSD Configuration.PIT/25/200/400mW/600mW Switchable VTX FPV Video Transmitter. Installs In Stack with MMCX Antenna for Micro FPV Racing Drone Quadcopter. Variable transmit power from 25mW to 600 mW. Use for 25mW for a race and then easily switch to 3=300 mW for freestyle.


Features:

  1. Output power @transmission distance:
    1. 0.5km@25mW
    2. 1km@200mW
    3. 2km@600mW
  2. Power transmission:25mW/200mW/400mW/600mW.
    PIT maintenance station mode is also supported.
    1. Supports the standard 48-channel set;
    2. Video format: NTSC/PAL
  3. Suitable for CC3D NAZE32 F3 F4 Flight Controller(Installs In Stack).
  4. Parameter setting mode: Press / OSD / betaflight

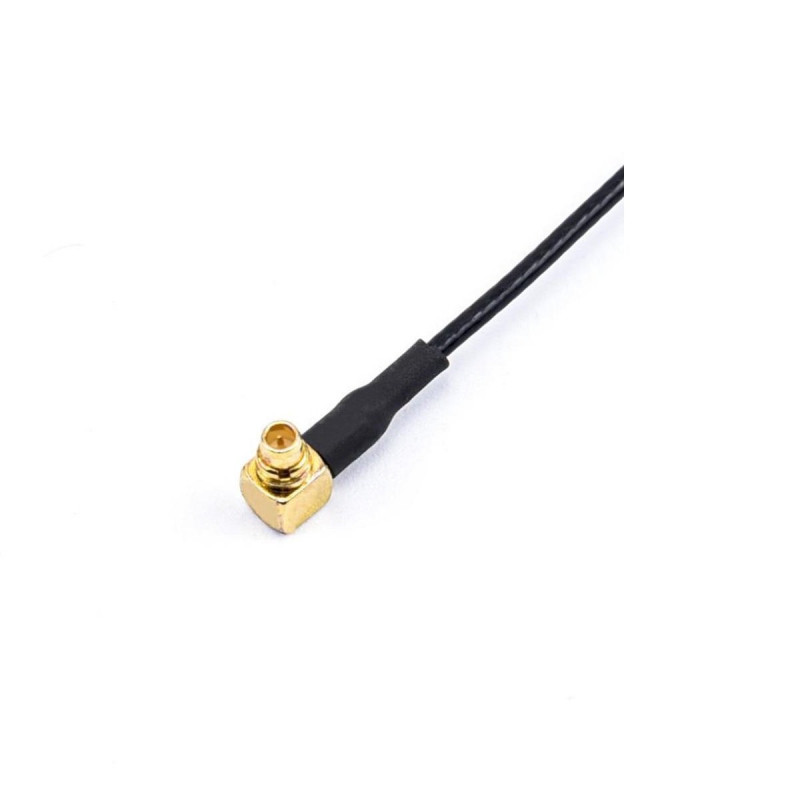

  5. Antenna Connector: MMCX
  6. Cable connector: JST.6pin
  7. Installation hole distance: 30.5mm,

Package Includes :

1 x Cyclone XF5804 PRO

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

Cyclone XF5804 PRO 5.8G 48CH 25/200/600mw Switchable Transmitter

  • Product Code: EC-25481
  • Availability: 27
  • Rs.1661.00
  • (Excluding 18% GST)
