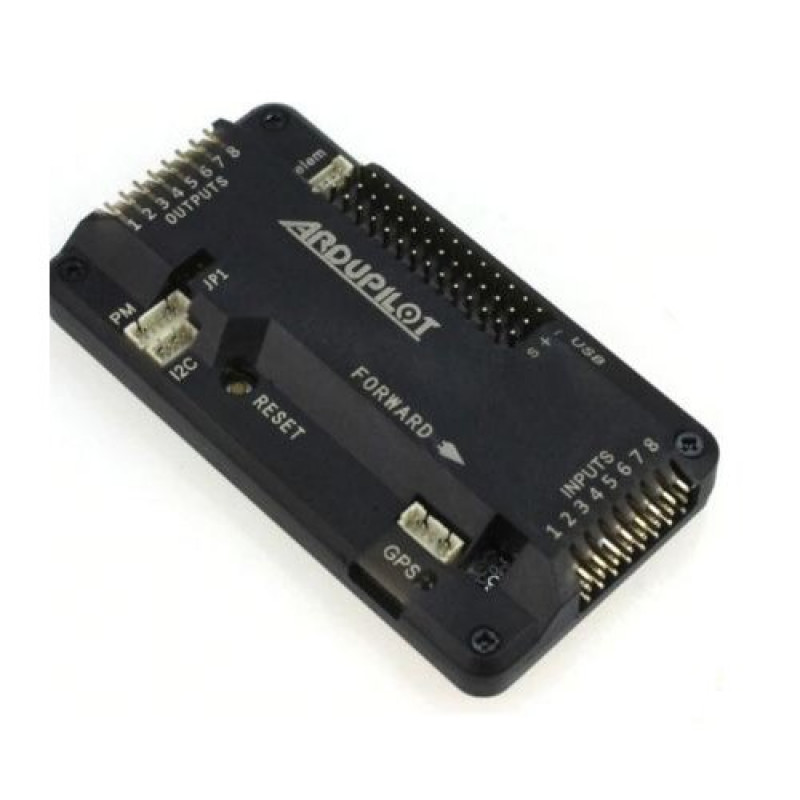

APM 2.8 Multicopter Flight Controller is an upgraded version of 2.5, 2.6; for FPV RC Drone. The sensors are exactly the same as the APM 2.6 flight controller; however, the module has the option to use an external compass via a jumper. This makes the APM 2.8 ideal for use with multi-copters and rovers.
The APM 2.8 Multicopter Flight Controller is a complete open source autopilot system. This is the best selling technology that won the prestigious Outback Challenge UAV competition. It allows the user to turn any fixed, rotary-wing. In addition, it turns multirotor vehicle (even cars and boats) into a fully autonomous vehicle. meanwhile, it is capable of performing programmed GPS missions with waypoints.
Powerful ground control software features:
The downloadable mission planner software is used to configure and control your Ardupilot board:
- Point-and-click waypoint entry, using Google Maps.
- Select mission commands from drop-down menus.
- Download mission logs files and analyzes them.
- Configure APM settings for your airframe.
- Interface with a PC flight simulator to create a full hardware-in-the-loop UAV simulator.
- See the output from APMs serial terminal.
Features :
- Straight Needle
- Arduino Compatible!
- Onboard 4 MegaByte Dataflash chip for automatic data logging.
- Optional off-board GPS, auBlox LEA-6H module with Compass.
- One of the first open-source autopilot systems to use Invensenses 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmels ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.
Package Includes :
1 x APM 2.8 Multicopter Flight Controller.
2 x Connecting Wires.
Specifications :-
| Model | APM 2.8 |
| Power supply | LP2985-3.3. |
| Port | MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output). |
| Input Voltage (V) | 12~16 VDC |
| Sensors | 3-Axis Gyrometer |
| Processor | ATMEGA2560 and ATMEGA32U-2 |
| Micro-SD Card Slot | No |
| Dimensions (mm) LxWxH | 70 x 45 x 15 |
| Weight (gm) | 82 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 6842.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

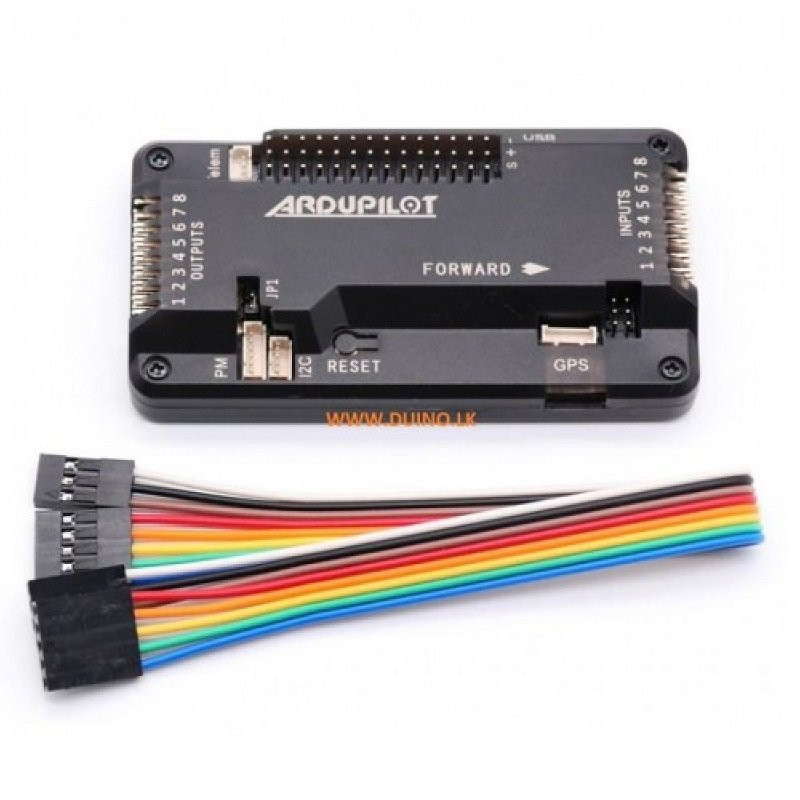

APM 2.8 Flight Controller with Built-in Compass
- Product Code: EC-5849
- Availability: 8
-
Rs.4099.00
- (Excluding 18% GST)
