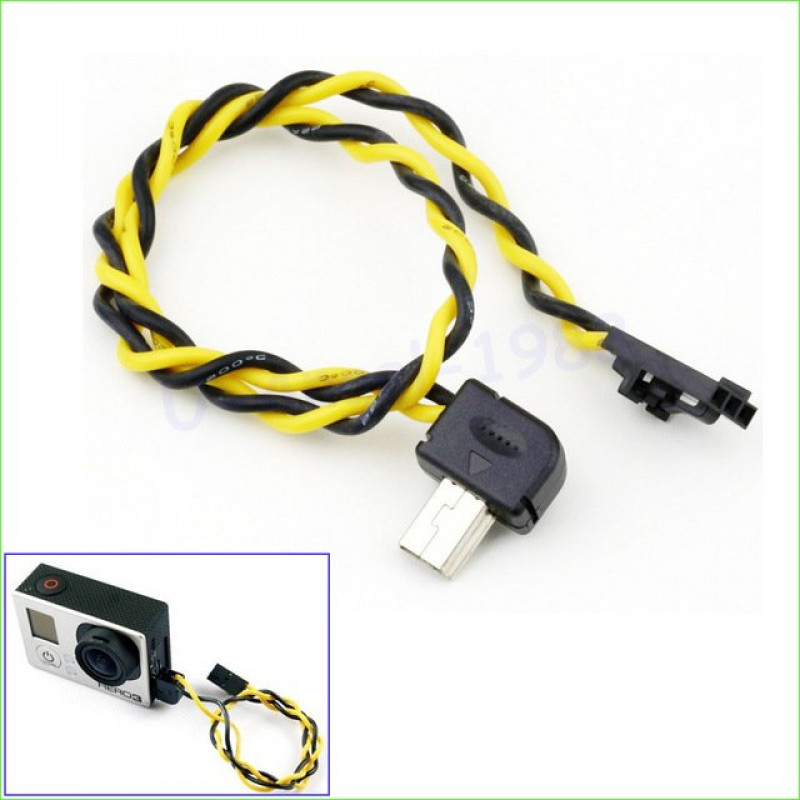

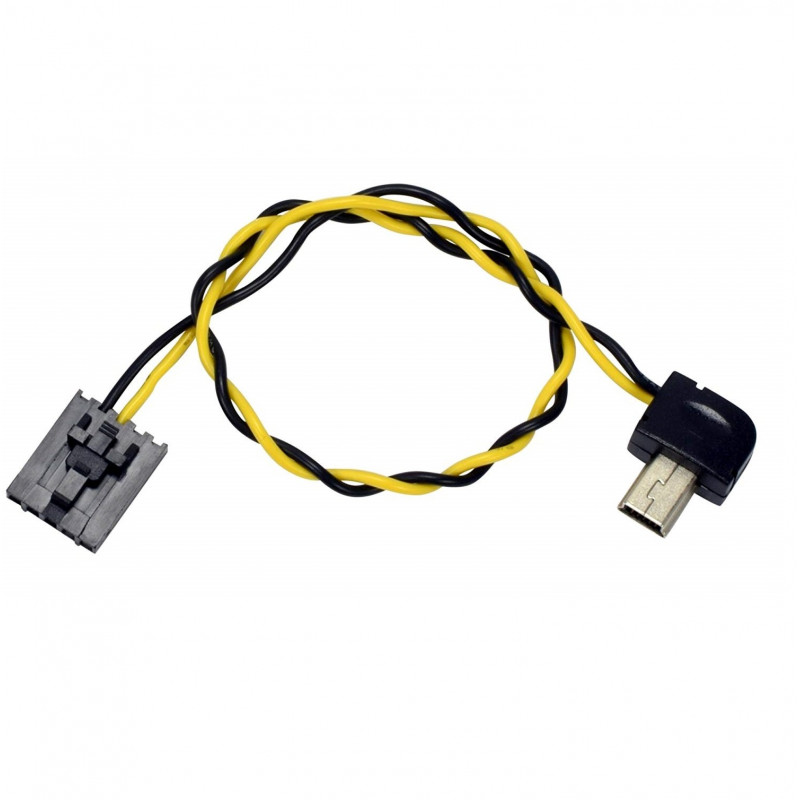

Mini USB (90 Connector) to FPV AV Video Output Cable for GoPro Hero 3 is a 100% Brand new and high-quality cable. It features Video/Audio output from the cameras USB port to your video transmitter or monitor. This cable has a 90 degree USB connector so you can fit the cable more securely to the camera without extruding plug.

You will also be able to fit your camera into a more tight space. This cable works with all video transmitters, such as Fatshark. The yellow pin goes to video signal pin on the VTX and the black pin goes to Ground on the VTX.

Very easy to setup

1. USB connector is used to connect to the USB port on your GoPro Hero3 Camera.
2. The 3 pin female connector is for AV video output

Typical application:

Video output from your GoPro Hero 3 USB port to your video wireless transmitter. (Connect your GoPro Hero 3 directly to FPV transmitter)

Special feature:
90 degree USB connector makes it easier and securer to fit the cable to the camera, also save spacing.

USB 90 Degree to Video Conversion Cable for GoPro Hero 3 Camera

Wiring: Yellow for Video out, Black for GND
Wire type and gauge: 22AWG silicon wire.

Package Includes:

1 x Mini USB (90 Connector) to FPV AV Video Output Cable for GoPro Hero 3

Only the cable is included. The GoPro Camera is not included.

Specifications :-

Wire Size	22 AWG
Wire Length	25 CM
