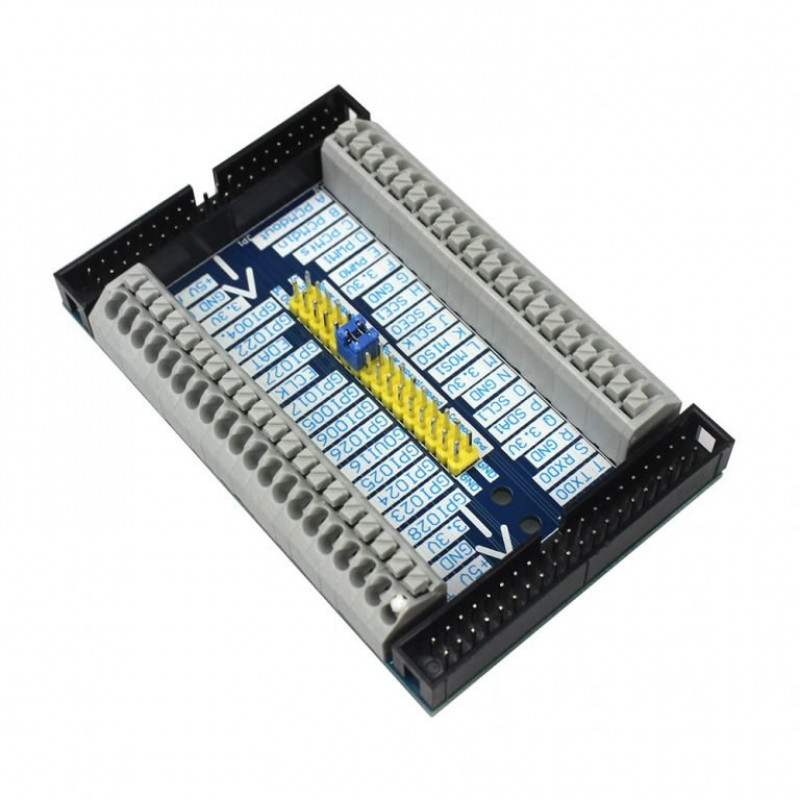

Raspberry Pi 3 GPIO Board Multifunctional Cascade Expansion Extension Board is used for extending the GPIO pins. This board gives high reliability with raspberry pi.
This module is used to extend the 40 GPIO pins of the Raspberry to another set of 220 pins and 8 pins in parallel accessible in the terminal blocks in which test leads are pushed. The electronic chart offers great reliability with the Raspberry and is very easy to connect thanks to its existing accessories but not included.
The module offers a set of mini bridges to configure the GPIO. The press to release the two terminal blocks of 20 connections is very easy to use.
Characteristics :
Communication connections: 1 TXD0 (broadcast) and 1 RXD0 (reception)
Power connections: 5 of 3.3V, 2 of 5V and 5 of GND
Pulse width modulation (PWM) connections: 2
GPIO connections: 11
PCM audio connections: 3
Connections with clock (CLK): 2
Peripheral serial bus interface (SPI) connections: 1
Input master / slave output connections (MISO): 1
Connections system validation chip (SCE): 2
I2C port connections: 8 (SDA, SCL, GOUI, EDAT, MOSI)
Package Includes :
1 x Raspberry Pi 3 GPIO Board Multifunctional Cascade Expansion Extension Board Module.
Specifications :-
Dimensions in mm (LxWxH) | 92x60x17 |
Weight (gm) | 50 |
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 777.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Raspberry Pi 3 GPIO Board Multifunctional Cascade Expansion Extension Board Module
- Product Code: EC-5408
- Availability: 8
-
Rs.679.00
- (Excluding 18% GST)
