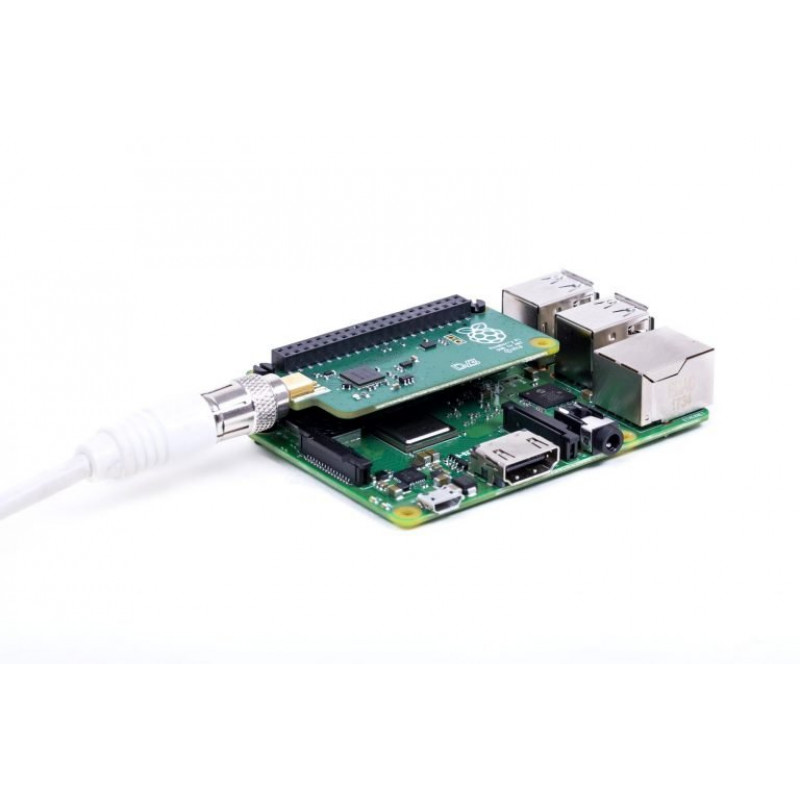

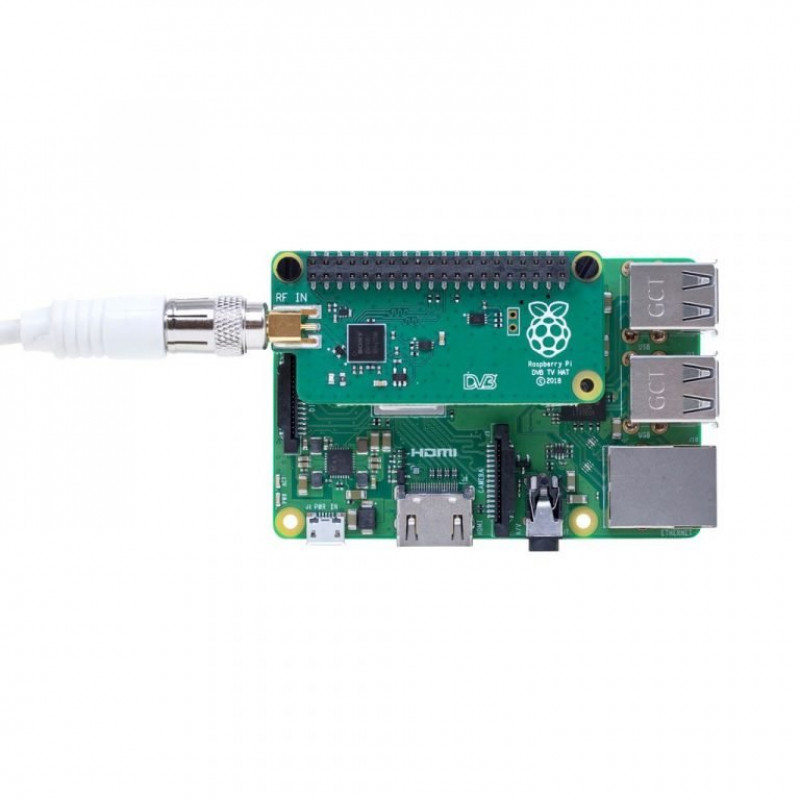

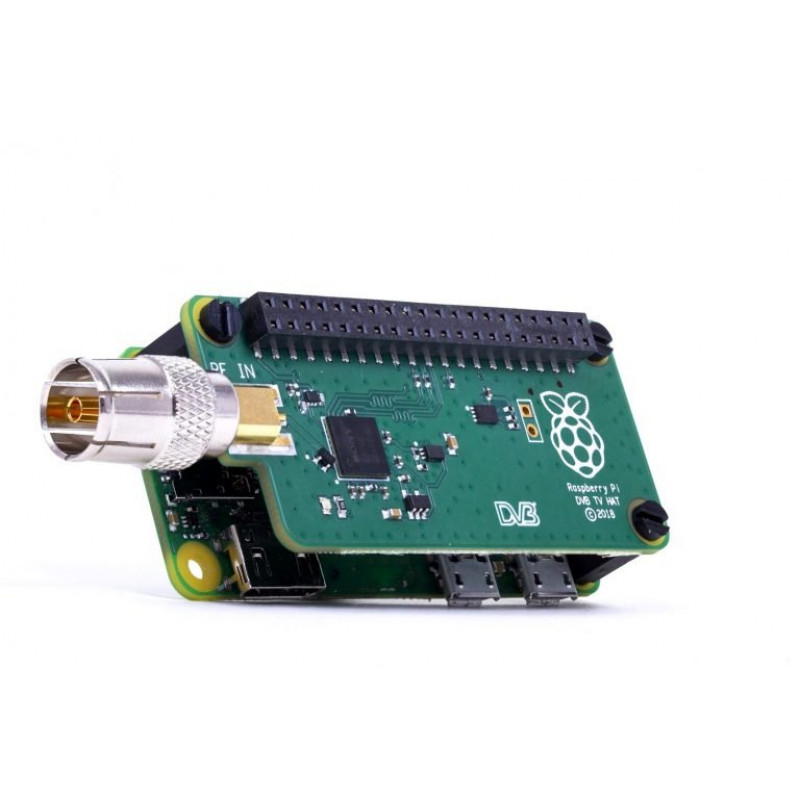

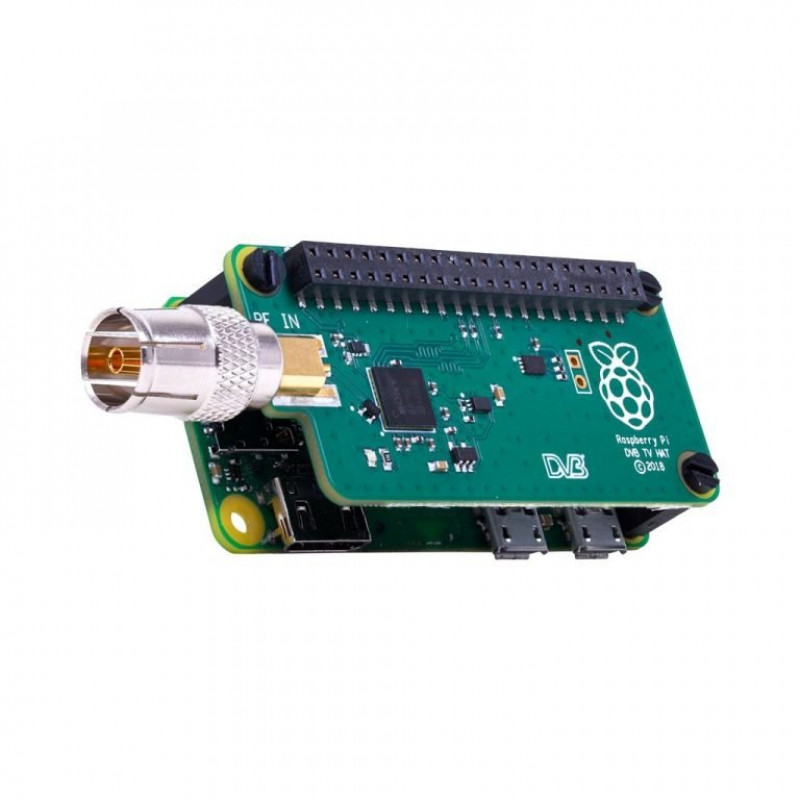

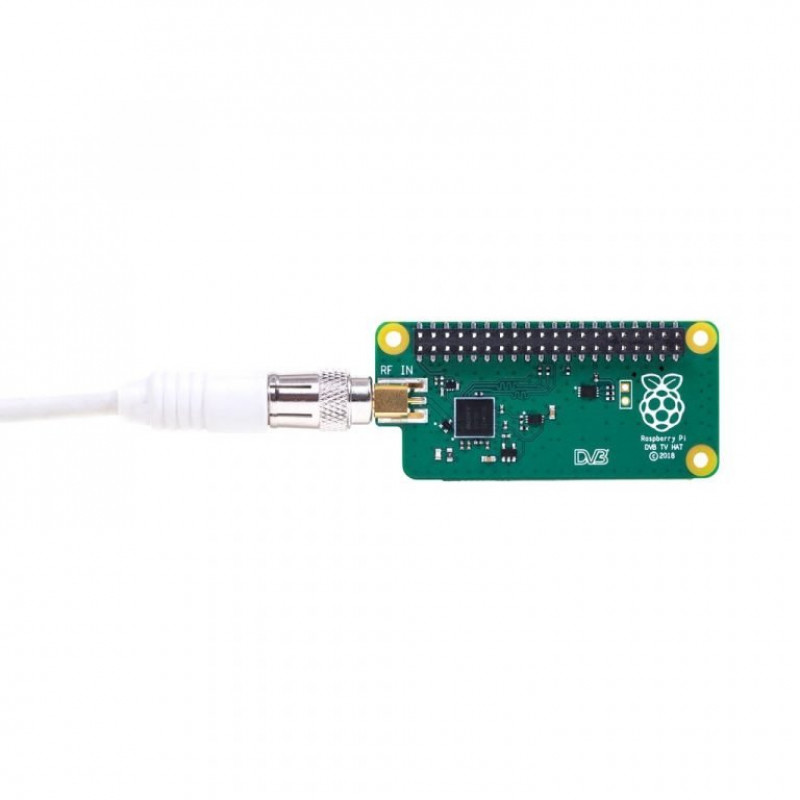

The Raspberry Pi TV HAT allows you to receive digital terrestrial TV broadcast systems which include DVB-T and DVB-T2 on a Raspberry Pi.
With the board, you can receive and view TV on a Raspberry Pi or create a TV server that allows you to stream received TV over a network to other devices. The TV HAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network). Performance, when receiving and viewing TV on a Pi, can vary and it is recommended to use a Raspberry Pi 2, 3 or 3+ to do this.
The board comes with a set of mechanical spacers, a 40-way header and an Aerial adaptor. The Raspberry Pi TV HAT is a DVB-T2 Digital TV receiver add-on for the Raspberry Pi, compatible with the Raspberry Pi 3 Model B+ or Raspberry Pi Zero W(and older Raspberry Pi 2 & 3 models)
The TV HAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network),however, when receiving and viewing TV directly on a Raspberry Pi it is recommended to use a Raspberry Pi 3 Model B+(or older Raspberry Pi Model 3) to do this.
The TV HAT features a Sony CXD2880 TV tuner supporting DVB-T and the second generation DVB-T2 TV standards.
Software:
The software we recommend for decoding TV streams and viewing content is TV Head end. Instructions for setting guide to Getting started with the TV HAT.
Media player support
- Kodi
- OMXplayer
- LibreELEC
Related Links:
More detailed information on Raspberry Pi hardware
Raspberry Pi TV HAT product brief
Raspberry Pi TV HAT mechanical drawing
Download the latest version of Raspbian here.

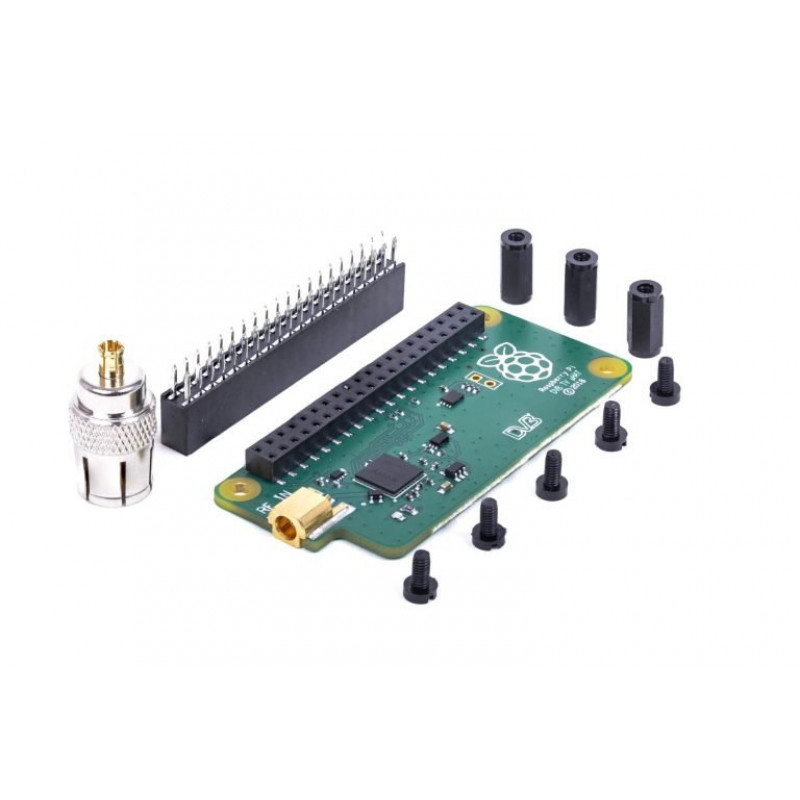

Package Includes:
1 xRaspberry Pi TV HAT
1 x Set of mechanical spacers
1 x 40-way GPIO header

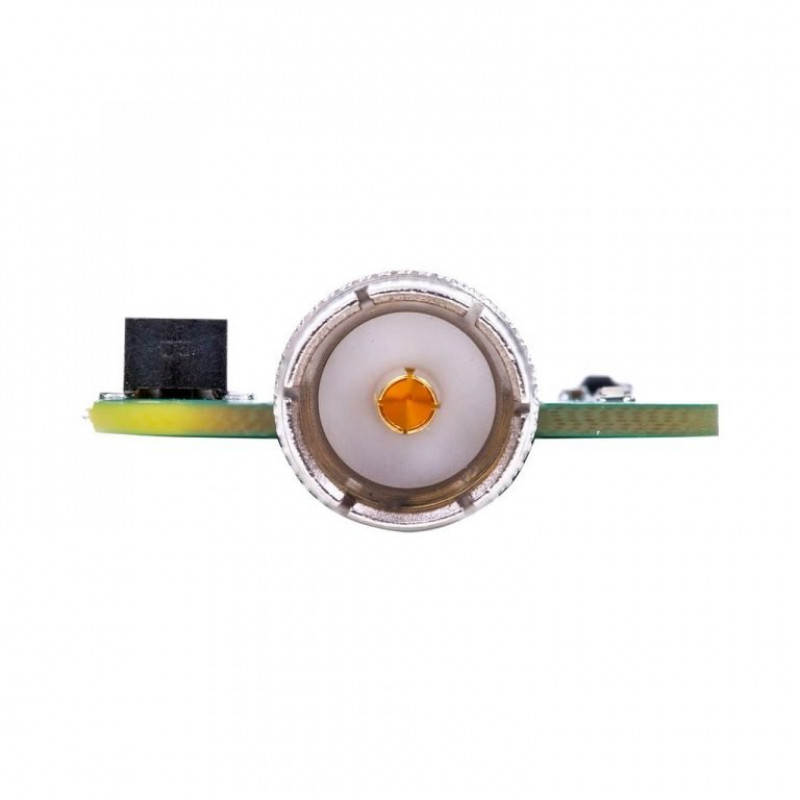

1 x Aerial adaptor.
Please Note. DVTD Antenna is not included in Package
Specifications :-
| TV Tuner Hardware | Sony CXD2880 |
| Supported TV standards | DVB-T2, DVB-T |
| Reception frequency | VHF III, UHF IV, UHF V |
| Channel bandwidth | DVB-T2: 1.7MHz, 5MHz, 6MHz, 7MHz, 8MHz |
| Operating Temperature | 0 50'C |
| OS Compatibility | Kodi, LibreELEC, OMXplayer |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 2578.3 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

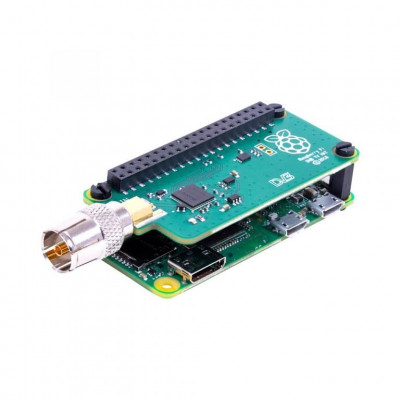

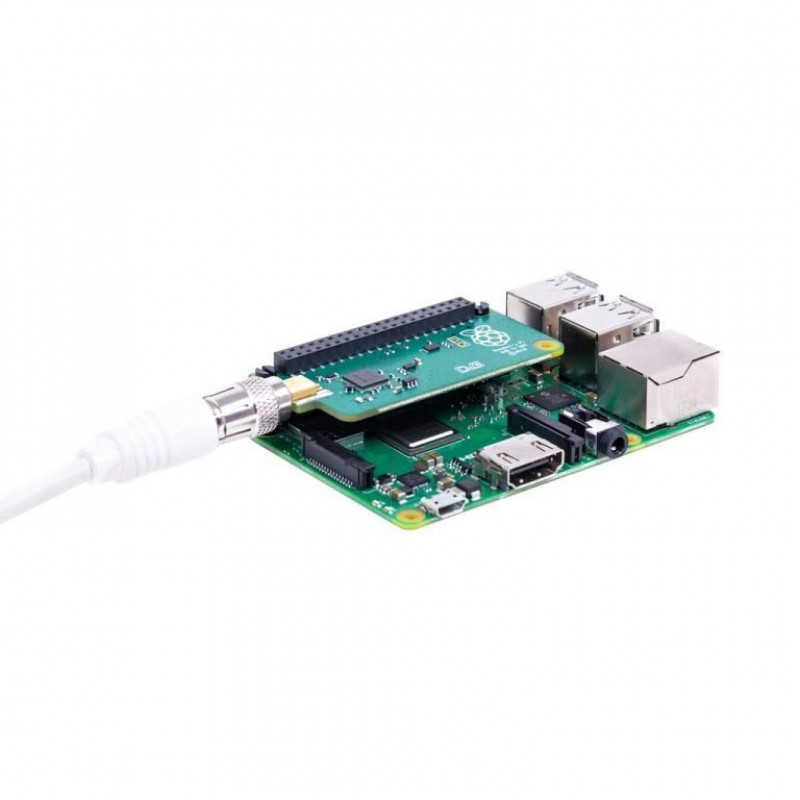

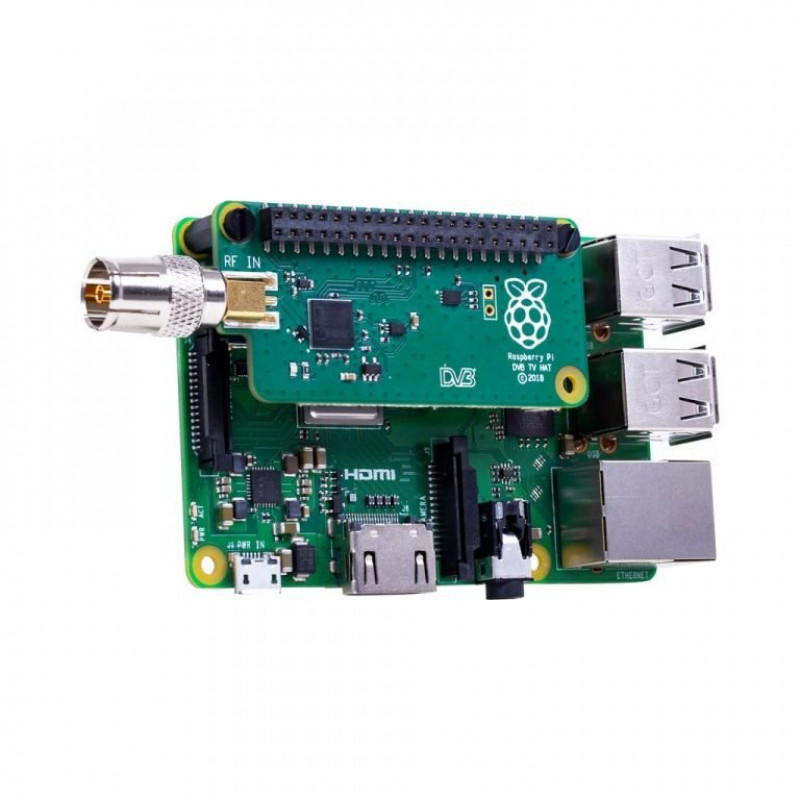

Raspberry Pi TV HAT
- Product Code: EC-5386
- Availability: 7
-
Rs.2185.00
- (Excluding 18% GST)
