These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.


Appliance:

  • Consumer Electronics: Satellite Boxes, set-top boxes
  • Telecommunications: CATV, CATV Networks.


Features:

  1. F Connector,Straight/180, Male Plug,Compression RG59 Cable,75ohm,Brass plating nickel
  2. Compact Design for less installation space required;
  3. Easy quick connect and disconnect coupling;


Electrical Characteristics

  1. Impedance 75 ohm
  2. Frequency Range: 0~3Ghz
  3. VSWR: Straight type 1.2max / R/A type 1.3max
  4. Withstanding Voltage: 500 V rms
  5. Working Voltage: 170 V rms
  6. Center Contact Resistance 10 m
  7. Outer Contact Resistance 5 m
  8. Insulation Resistance 1000 m
  9. RF Leakage -100dB min @1GHz

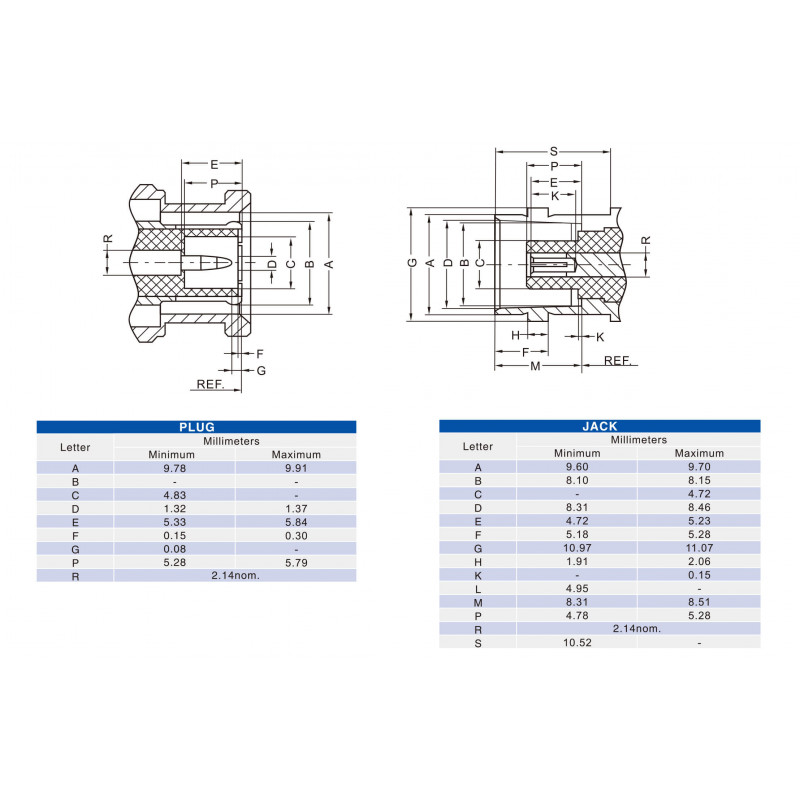

Mechanical Characteristics

  1. Coupling: 3/8-32 thread
  2. Cable Retention: 20 lbs min.
  3. Durability(mating) 500 cycles


Environmental Characteristics

  1. Temperature Range: -40C ~ +60C


Package Includes:

1 x F RG6 Connector Compression Type


Specifications:

Brand

ElecBee

Orientation

Straight

Gender

Male

Mounting Type

Cable

Termination Style

Solder Type

Function

Other

Polarity

Standard

Body Material

Zinc Alloy

Body Plating

Nickel Plating

Impedance

75 ohms

Shield Termination

Compression


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 145.14 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

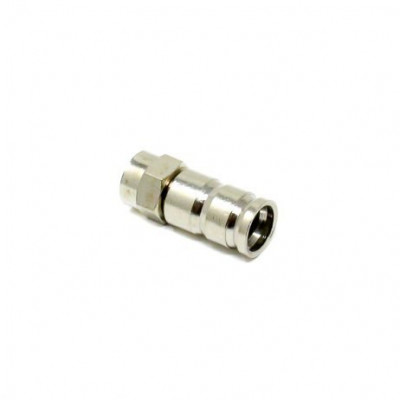

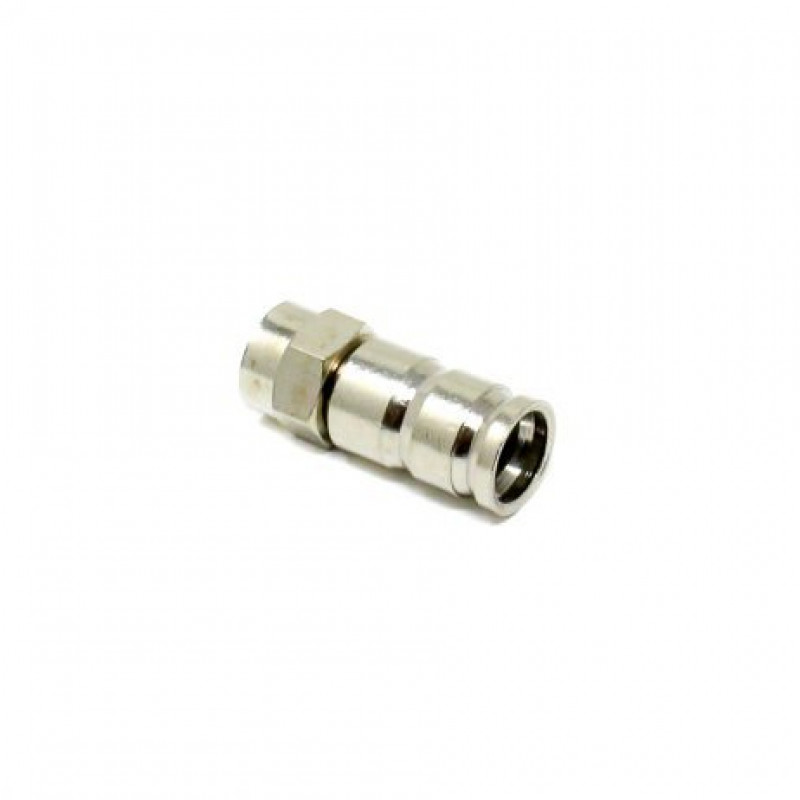

F RG6 Connector Compression Type

  • Product Code: EC-5723
  • Availability: 18
  • Rs.138.00
  • (Excluding 18% GST)
