These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.
Main Application of MCX Connectors:
- Consumer Electronics: GPS, HDTV, Wireless Internet TV and Audio, smartphone antenna port,
- Aerospace and Defense: GPS and Hand-held Device
- Medical: Telemetry
- Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
- Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
- Industrial: Machine to machine communications
Features:
- MCX Connector,Female/Socket,Straight/180,Crimp Type
- 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space
- Snap-on Interface ideal for quick Installation and discount
- High cost-effective with excellent broadband performance and low reflections
Electrical Characteristics
- Impedance 50 ohm
- Frequency Range: 0-6GHz
- VSWR: Straight type: 1.25 max
- Dielectric Withstanding Voltage: 1000 V rms
- Working Voltage: <170V rms
- Center Contact Resistance: 5mohm
- Outer Contact Resistance: 2.5mohm
- Insulation Resistance:5000 ohms min
Mechanical Characteristics
- Coupling:Snap-on/Snap-off
- Contact Retention:4 lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics:Teflon -65C ~ +165C
- Vibration:MIL-STD-202 Meth.204
- Corrosion Resistance:MIL-STD-202 Meth. 101
Package Includes:

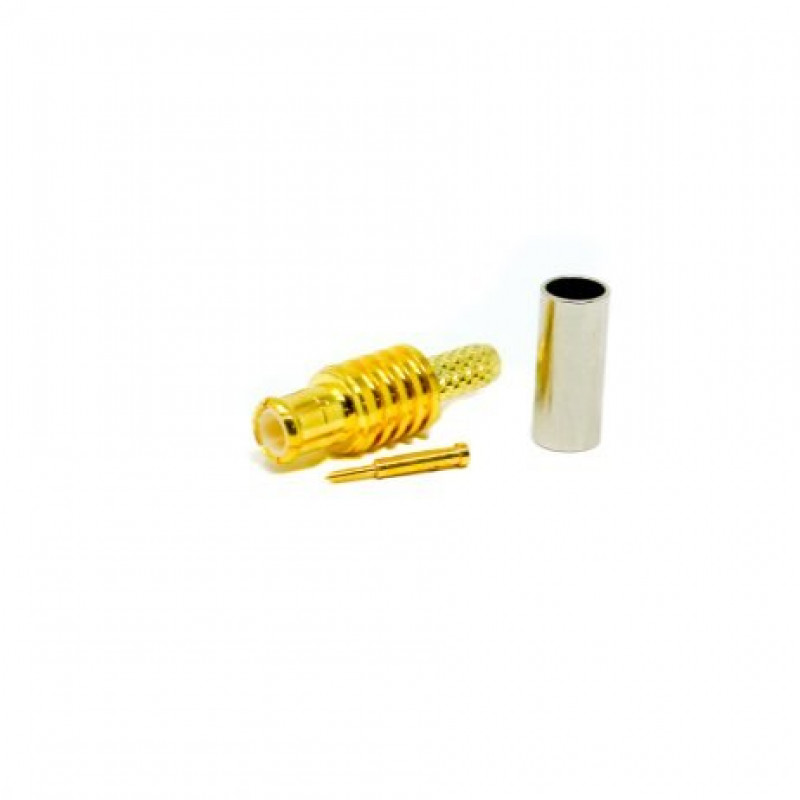

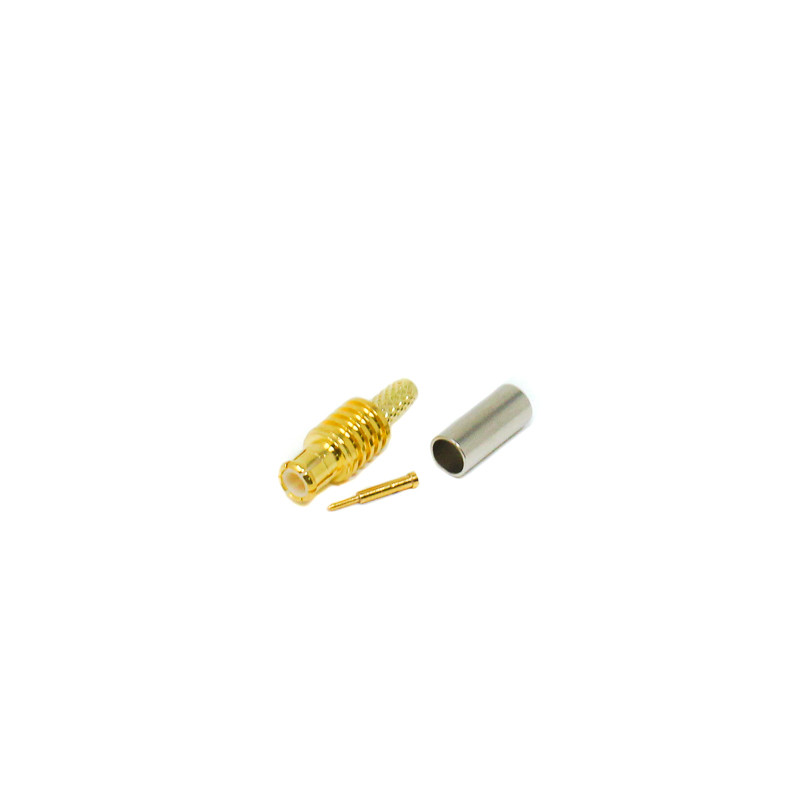

1 x MCX Connector Female Straight Gold Plated Crimp Type For Cable
Specifications:
| Brand | ElecBee |
| Orientation | Straight |
| Gender | Male |
| Mounting Type | Cable |
| Termination Style | Solder Type |
| Mounting Feature | None |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper Alloy |
| Body Plating | Gold Plating |
| Impedance | 50 ohms |
| Shield Termination | Crimp |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 187.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

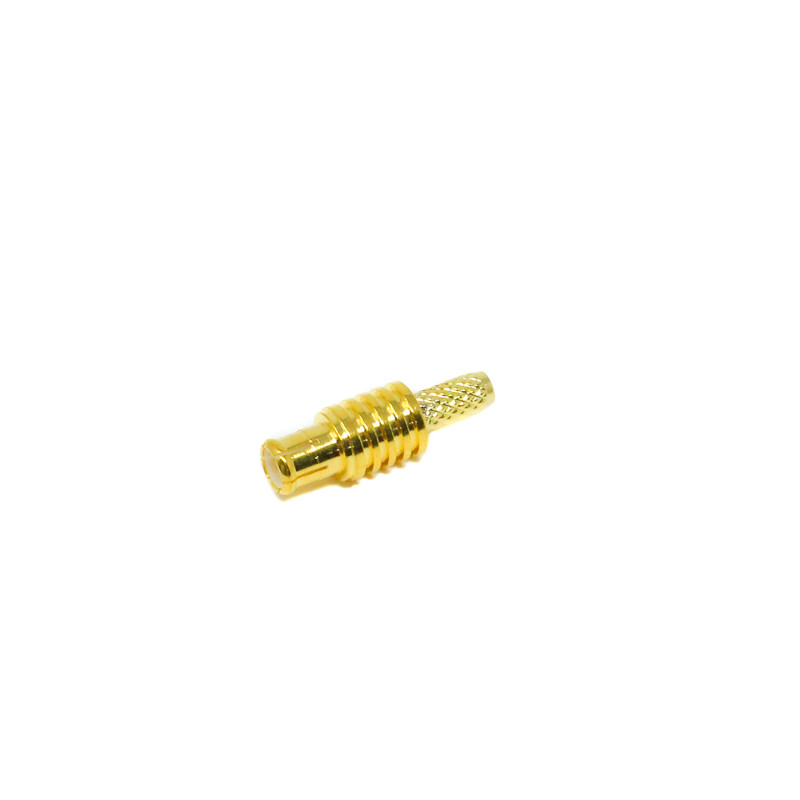

MCX Connector Female Straight Gold Plated Crimp Type For Cable
- Product Code: EC-5730
- Availability: 36
-
Rs.143.00
- (Excluding 18% GST)
