These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.

Main Application of MCX Connectors:

• Consumer Electronics: GPS, HDTV, Wireless Internet TV and Audio, smartphone antenna port,
• Aerospace and Defense: GPS and Hand-held Device
• Medical: Telemetry
• Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
• Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
• Industrial: Machine to machine communications

Features:

1. MCX Connector,Male/Plug,Straight/180,Crimp Type,Gold Plated;
2. 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
3. Snap-on Interface ideal for quick Installation and discount
4. High cost-effective with excellent broadband performance and low reflections.

Electrical Characteristics

1. Impedance 50 ohm
2. Frequency Range: 0-6GHz
3. VSWR: Straight type: 1.25 max
4. Dielectric Withstanding Voltage: 1000 V rms
5. Working Voltage: <170V rms
6. Center Contact Resistance: 5mohm
7. Outer Contact Resistance: 2.5mohm
8. Insulation Resistance: 5000 ohms min

Mechanical Characteristics

1. Coupling:Snap-on/Snap-off
2. Contact Retention:4 lbs min.
3. Mating Durability: 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Environmental Characteristics:Teflon -65C ~ +165C
2. Vibration:MIL-STD-202 Meth.204
3. Corrosion Resistance:MIL-STD-202 Meth. 101

Package Includes:

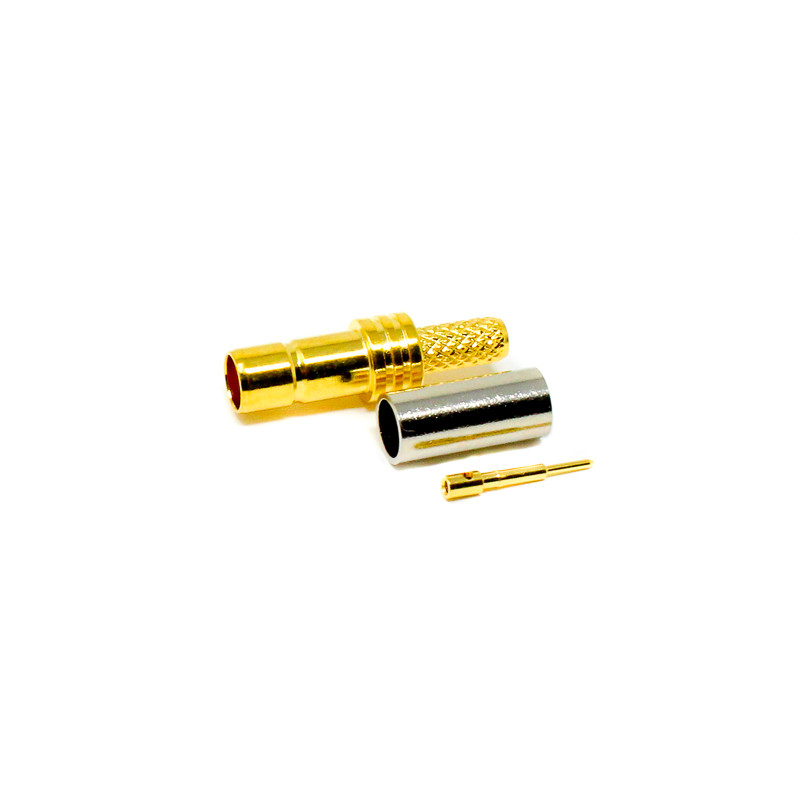

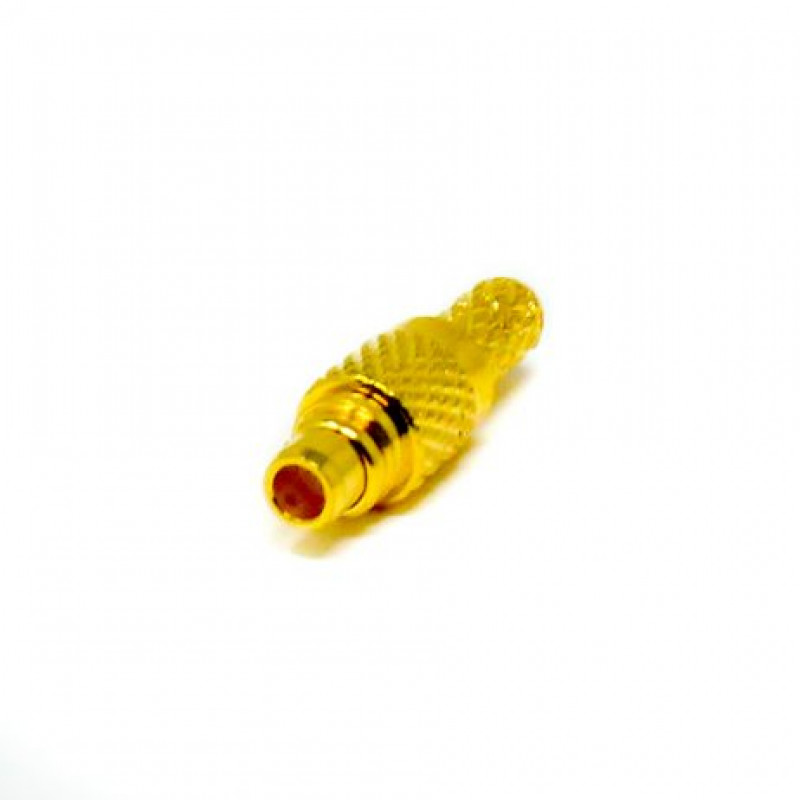

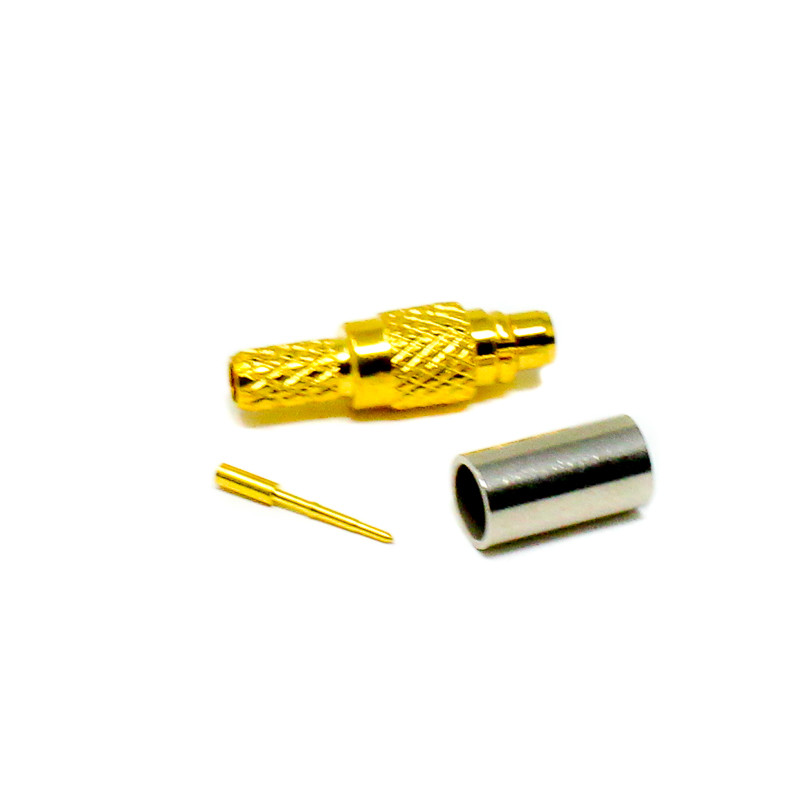

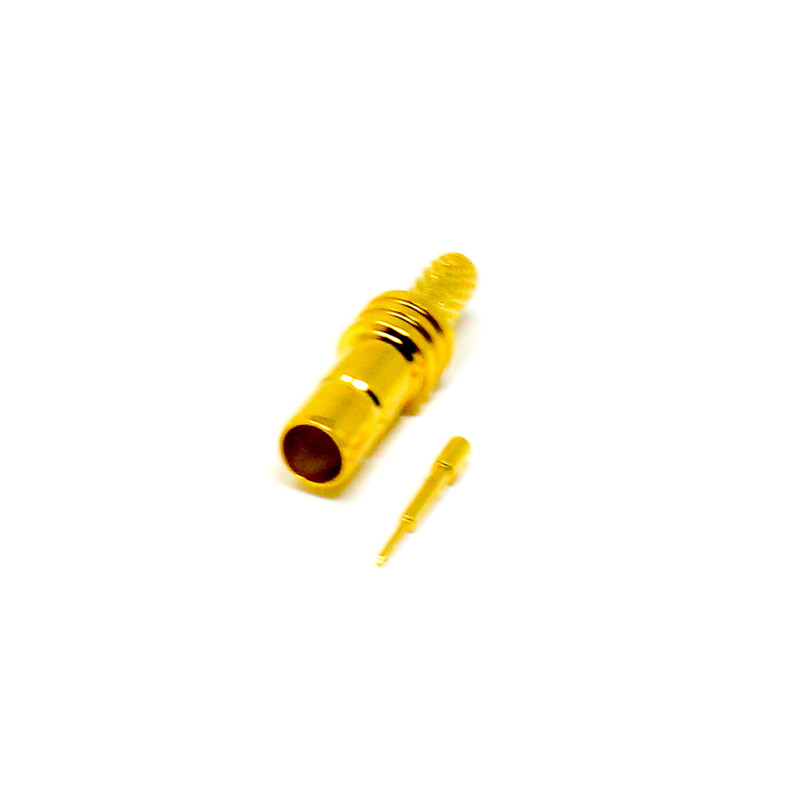

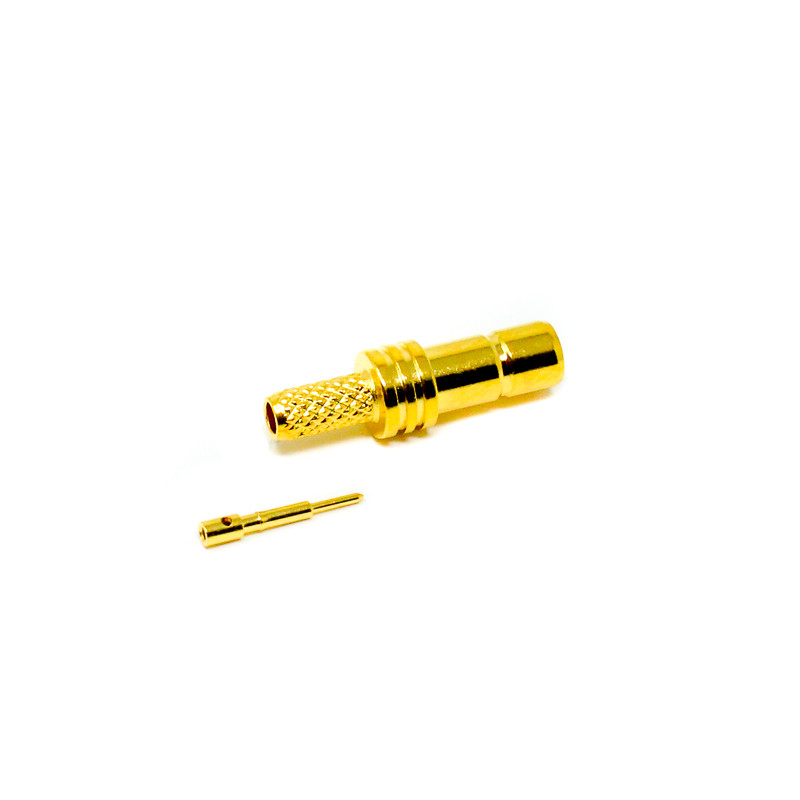

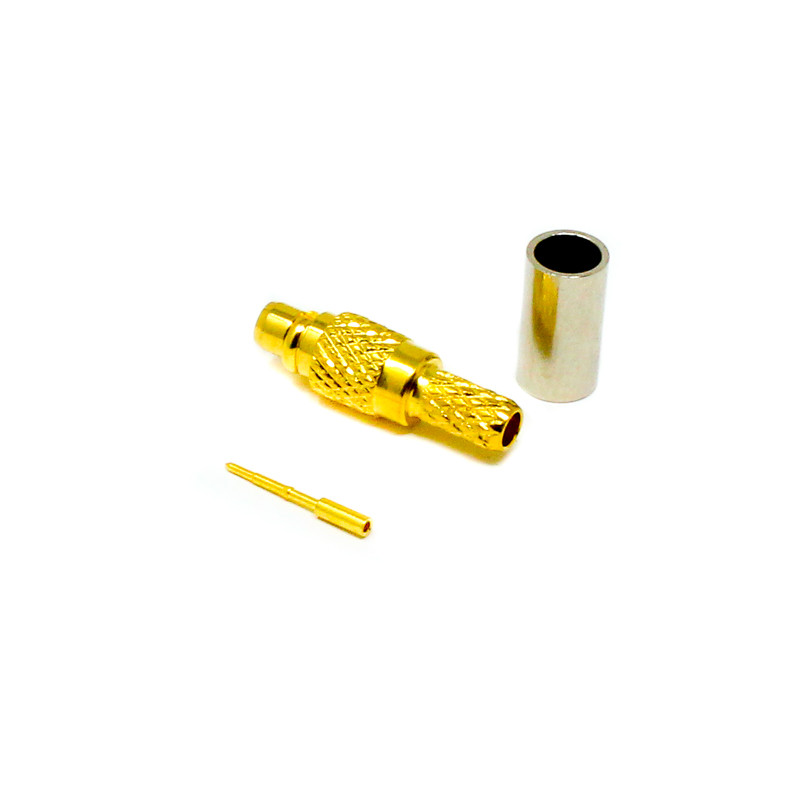

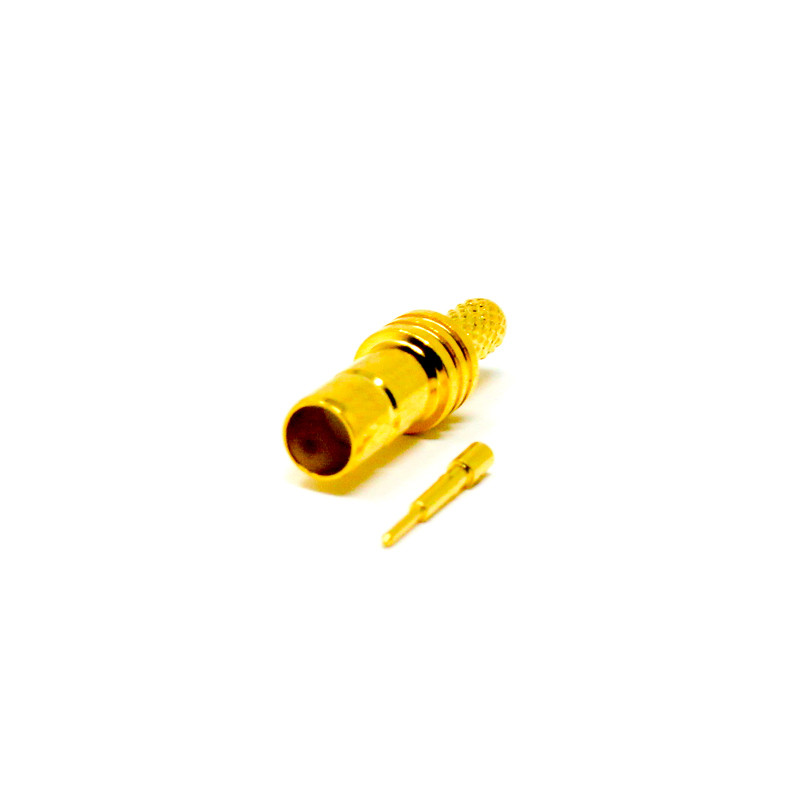

1 x MCX RF Connector Male Straight Gold Plated Crimp for Cable
