These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.
Main Application of MCX Connectors:
Consumer Electronics: GPS, HDTV, Wireless Internet TV and Audio, smartphone antenna port,
Aerospace and Defense: GPS and Hand-held Device
Medical: Telemetry
Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
Data/Communications: Wireless-LAN, Wireless-PAN(Bluetooth), Wireless-WAN
Industrial: Machine to machine communications
Features:
- Pcb Mount, Straight/180,50, jack/female, Through Hole;
- 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
- Snap-on Interface ideal for quick Installation and discount;
- High cost-effective with excellent broadband performance and low reflections.
Electrical Characteristics
- Impedance 50 ohm
- Frequency Range: 0~6 Ghz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V RMS
- Working Voltage: 335 V RMS
- Center Contact Resistance 5.0 m (Milliohms max.)
- Outer Contact Resistance 1.0 m (Milliohms max.)
- Insulation Resistance 1000 m
Mechanical Characteristics
- Coupling:Snap-on/Snap-off
- Contact Retention:4 lbs min.
- Mating Durability: 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics:Teflon -65C ~ +155C
- Vibration:MIL-STD-202 Meth.204
- Corrosion Resistance:MIL-STD-202 Meth. 101
Package Includes:

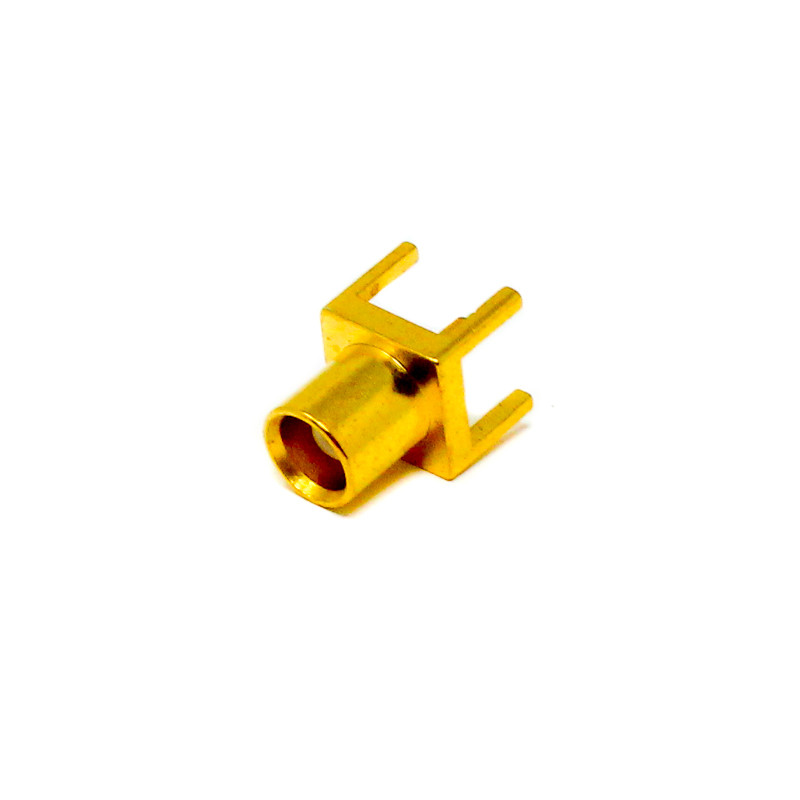

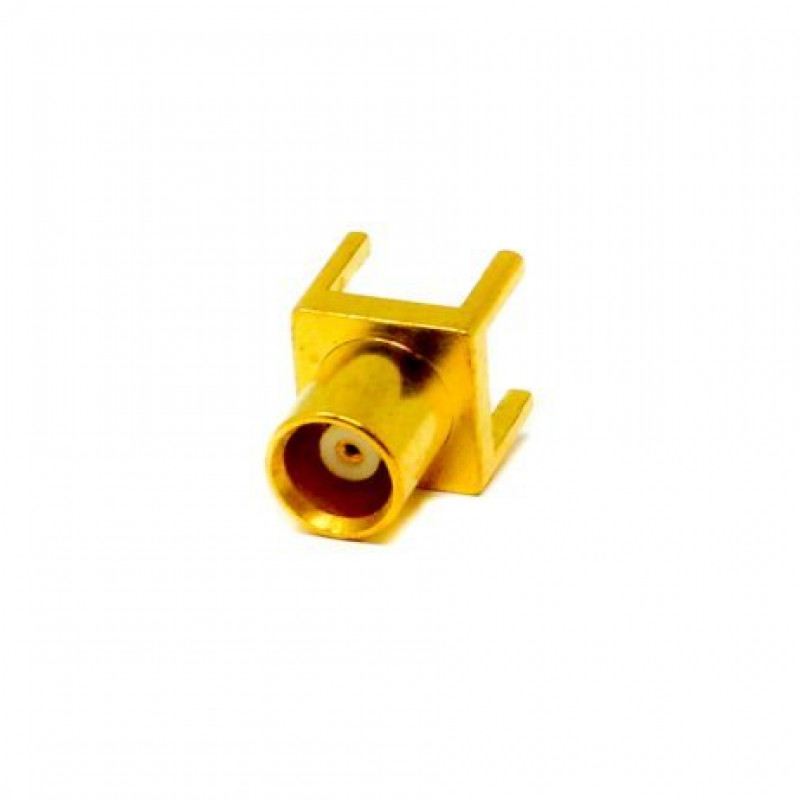

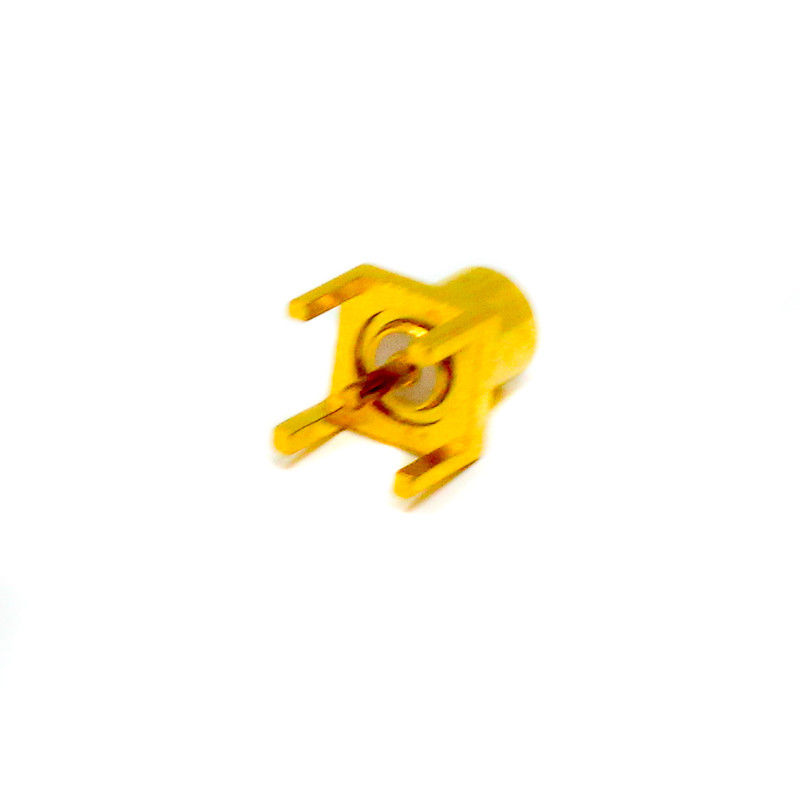

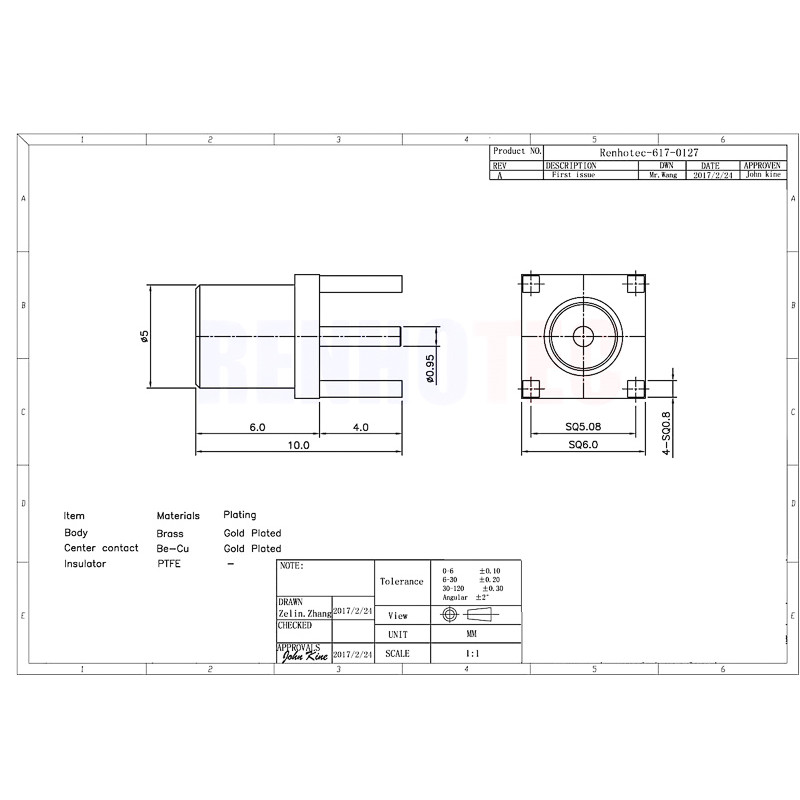

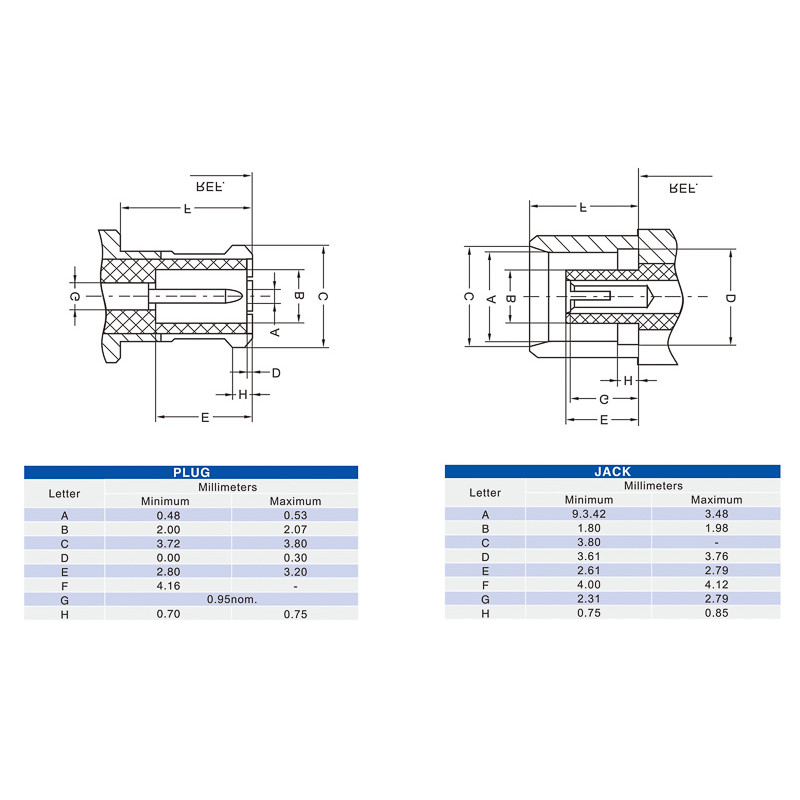

1 x MCX Straight Connector Coax Female Through Hole For PCB
Specifications:
| Brand | ElecBee |
| Orientation | Straight |
| Gender | Female |
| Mounting Type | PCB Mount |
| Termination Style | Solder Type |
| Mounting Feature | Through Hole |
| Function | Other |
| Polarity | Standard |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Impedance | 50 ohms |
| Shield Termination | NA |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 167.56 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MCX Straight Connector Coax Female Through Hole For PCB
- Product Code: EC-5733
- Availability: 42
-
Rs.127.00
- (Excluding 18% GST)
