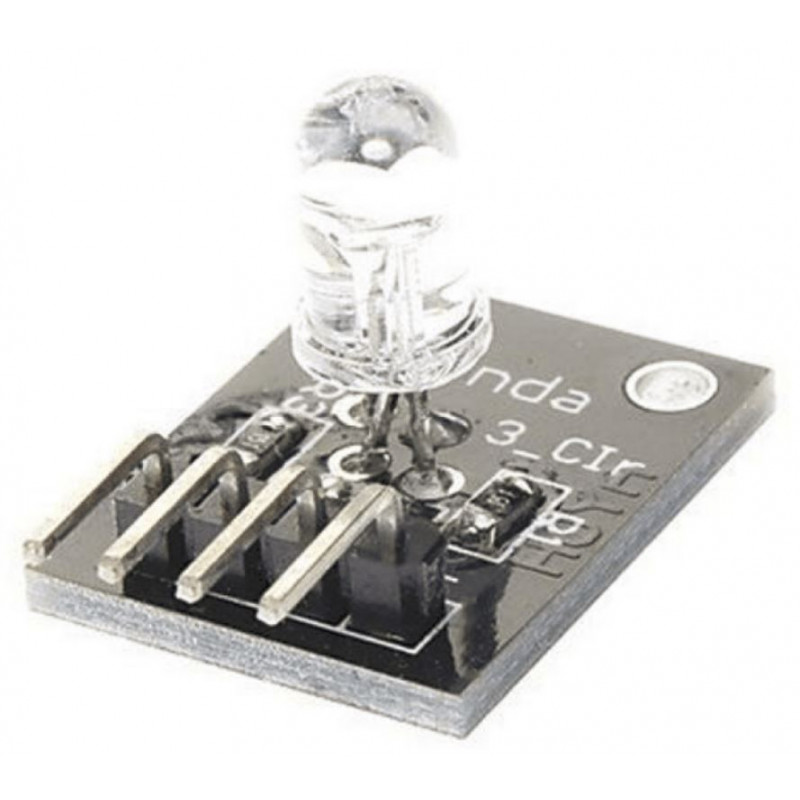

This module consists of a 5mm RGB LED and three 150Ω limiting resistors to prevent burnout. Adjusting the PWM signal on each color pin will result in different colors.
This is a DIP 3 Color LED Module. Through the PWM adjusting, three primary colors can be mixed to obtain different colors.

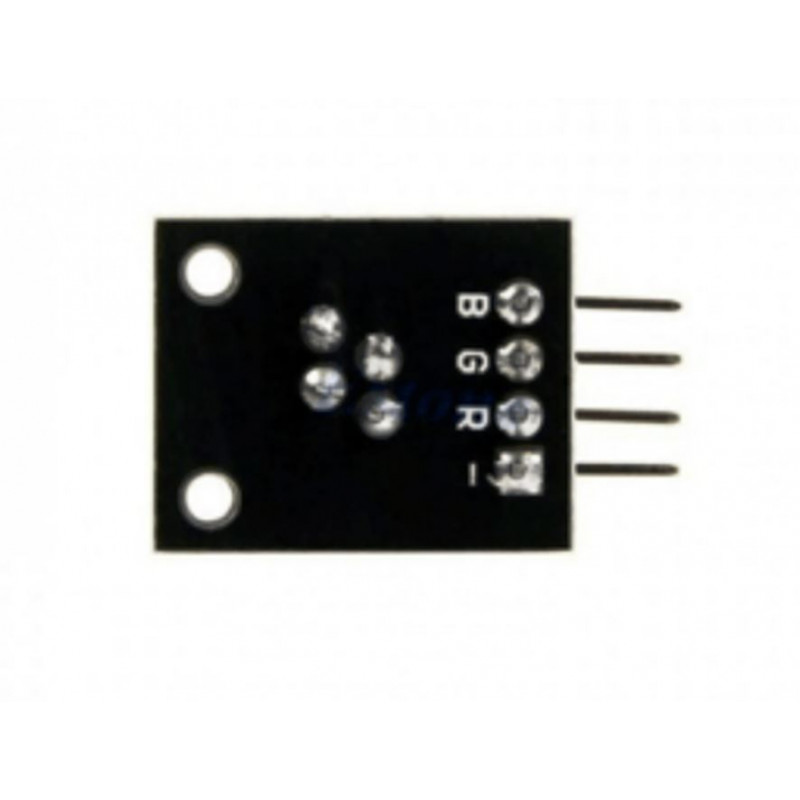

Connect the red pin (R) on the KY-016 to pin 11 on the Arduino. Blue (B) to pin 10, green (G) to pin 9 and ground (-) to GND. Notice that you do not need to use limiting resistors since they are already included on the board.
Features and Specifications:-
- The use of plug-in full-color LED.
- RGB trichromatic limiting resistor to prevent burnout.
- With a variety of single-chip interface.
- Through the PWM adjusting, three primary colors can be mixed to obtain different colors
- The working voltage: 5V
Package Includes:-
1 x RGB 3 Color LED Module
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 82.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
RGB 3 Color LED Module
- Product Code: EC-11629
- Availability: 75
-
Rs.65.00
- (Excluding 18% GST)
