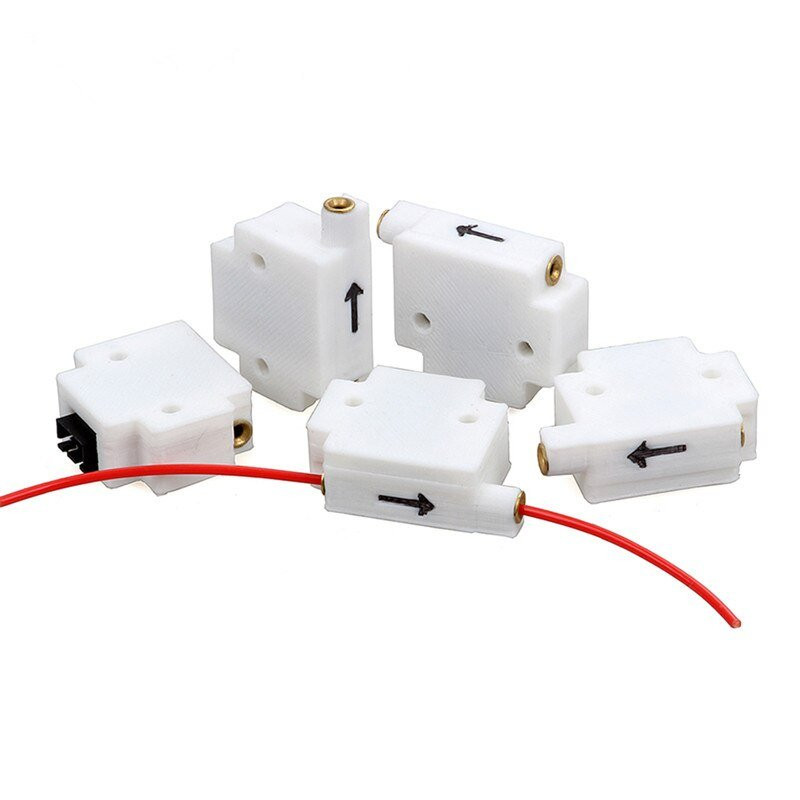

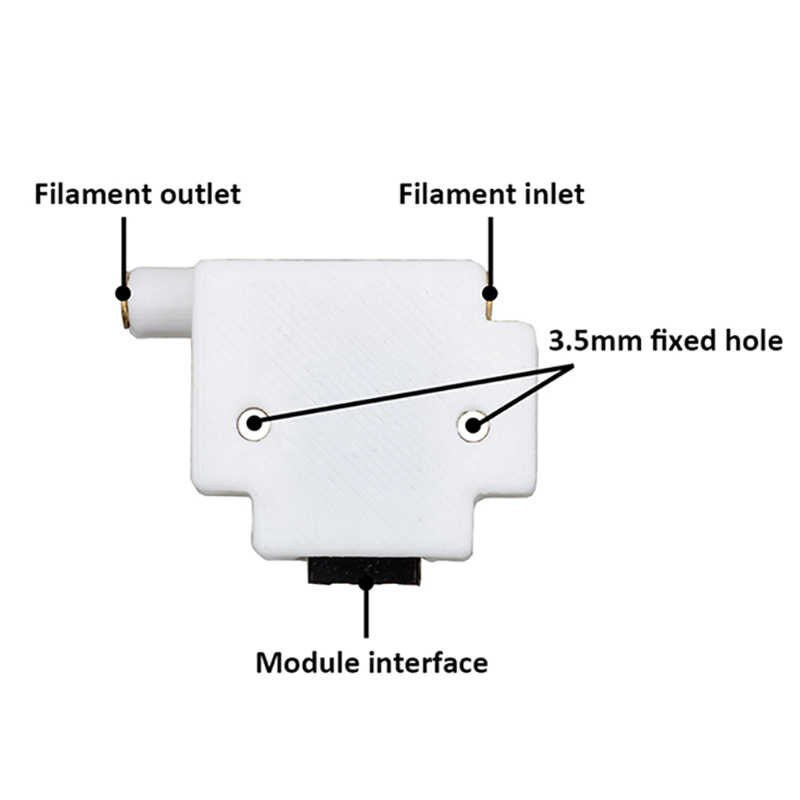

FES V1.0 Filament Fault Detection Switch for 1.75mm Filament is also known as filament detection sensor. It is used to detect ABS, PLA or any other filament continuity before feeding to the printer extruder. When the filament crosses the module and press the slide, enter the high level and the lights are off.
When there is no filament, the switch will hit, then enter a low level and the light is on, the buzzer sounds to give you advice. In such a situation, add the filament and it will remain printed.
Wiring:
- Red: Vcc
- Black: GND ground
- White: Signal
Package Includes:
1 x FES V1.0 Filament Fault Detection Switch

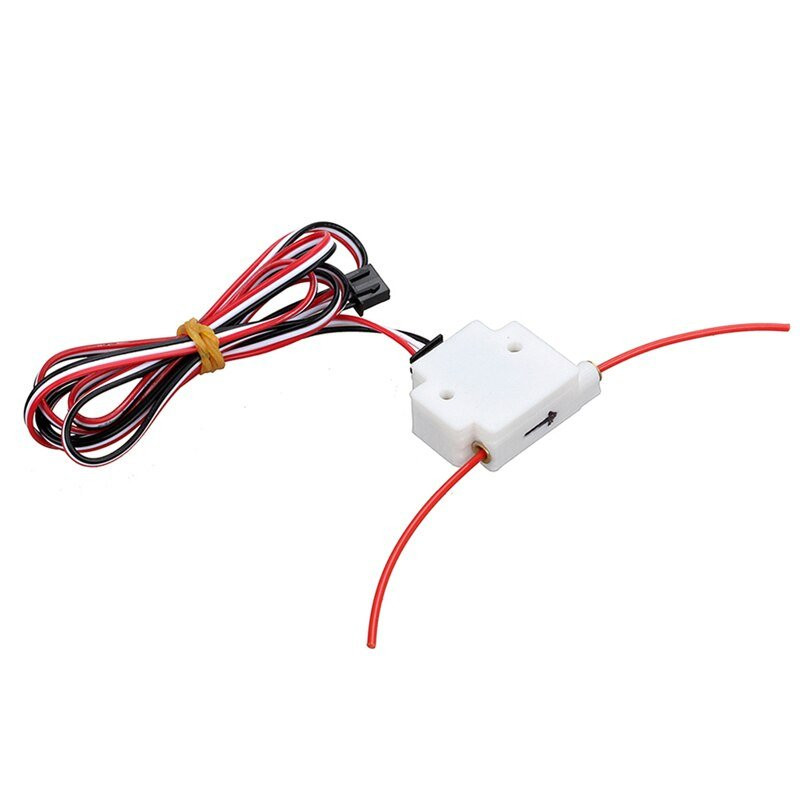

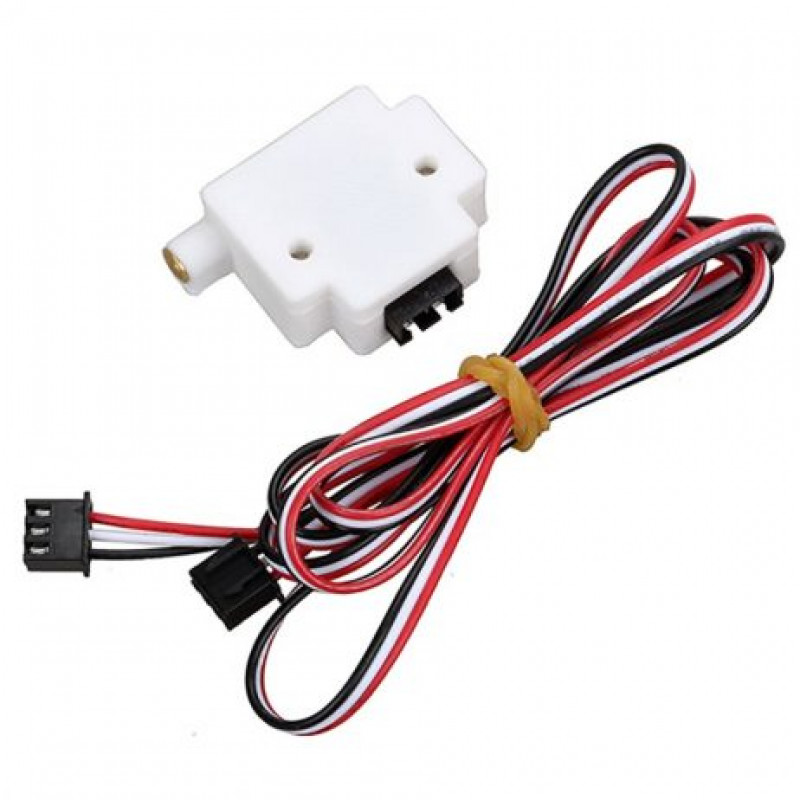

1 x MKS 3 pin Connecting Wire-(50cm)
Specifications :-
| Module Type | Switch |
| Function | Filament Detection Sensor |
| Colour | White |
| Length (mm). | 40 |
| Width (mm) | 30 |
| Height (mm) | 18 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 388.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
FES V1.0 Filament Fault Detection Switch for 1.75mm Filament
- Product Code: EC-6936
- Availability: 8
-
Rs.469.00
- (Excluding 18% GST)
