eSUN filaments are high-quality professional grade filaments and are compatible with all FDM printers such as MakerBot, RepRap, UP, Afinia, Flash Forge and all FDM 3D Printers.
eSun ePC 1.75mm 3D Printing Filament 0.5kg Natural is a flame retardant polycarbonate filament which finds its use in applications where heat resistance along with low flammability is a key factor. ePC comes in natural color, is highly transparent, is flame retardant to UL94: V-2 levels, prints at temperatures of 235-260 C, is environmentally friendly and non-toxic.
Additionally, the ePC is highly malleable and is easy to process. Shrinkage rate of the ePC filament is about the same as the ABS filament. Also, the ePC had good thermostability and high distortion temperature.
Print Settings
- Hot end: 230C
- First Layer: 230C
- Print Base temperature: 80
- Print Speed30-60 mm/s
- MoveSpeed90-150mm/s
- Nozzle Type: Hardened/Disposable
- Nozzle Diameter: >0.5mm (0.6mm recommended)
- Heated bed: 80C (Use of Elmers purple glue stick for adhesion is recommended)
- Min layer time: 5 seconds
- Stainless steel nozzle is needed.
Features:
- Environmentally friendly.
- Smooth printing, odorless.
- High Strength, High Rigidity, Good Toughness, Wear-Resisting, Fitting to 3D print industrial parts.
- It has shrink rate about the same as ABS, and high distortion, high accuracy without a warped edge.
- High flame resistance, Flame-retardant level: UL94-V2.
Package Includes:
1 x eSun ePC 1.75mm 3D Printing Filament 0.5kg Natural
Specifications :-
| Brand | eSun |
| Material | ePC |
| Filament Diameter (mm) | 1.75 |
| Filament Weight and Length | 0.5Kg/ 165 Meter |
| Heating Bed Temperature (C) | 110 |
| Density ( g/cm) | 1.2 |
| Melt Flow Index (g/10min) | 45(300C/1.2kg) |
| Dimensional Accuracy (mm) | 1700.1 |
| Roundness Accuracy (mm) | 0.5 |
| Spool Size (mm) | Hub Diameter: 32 |
| Bending Strength (MPa) | 80 |
| Elongation at Break (%) | 160 |
| Flexural Modulus (MPa) | 2333 |
| Print Temperature (C) | 235 260 |
| Tensile Strength (MPa) | 57 |
| Distortion Temp (C,0.45MPa) | 93 |
| Impact Strength ( kJ/m) | 48 |
| Color | Natural |
| Spool Dimensions | Inner diameter: 50 mm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1816.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

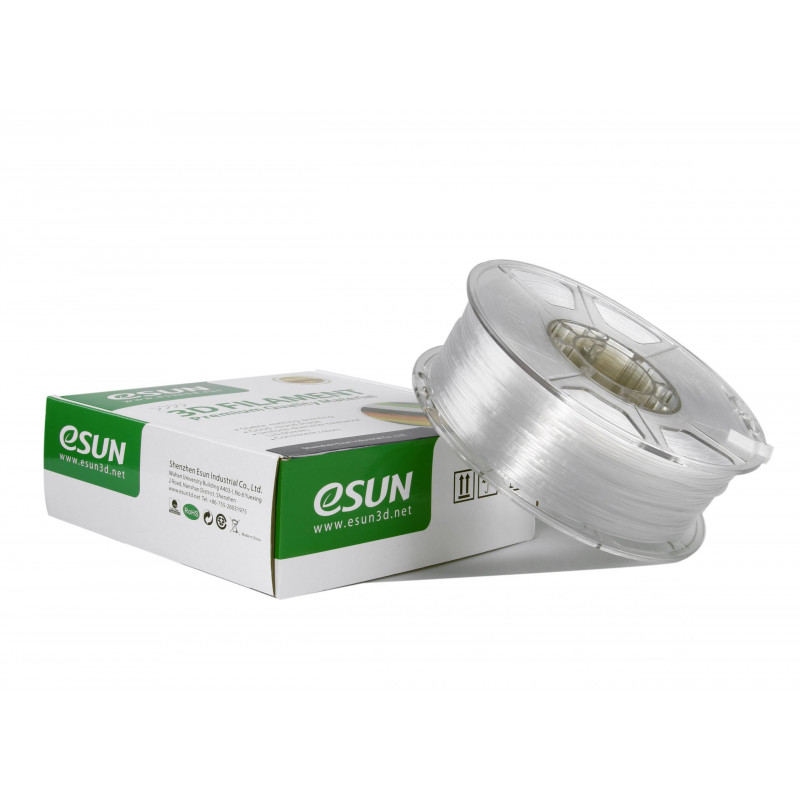

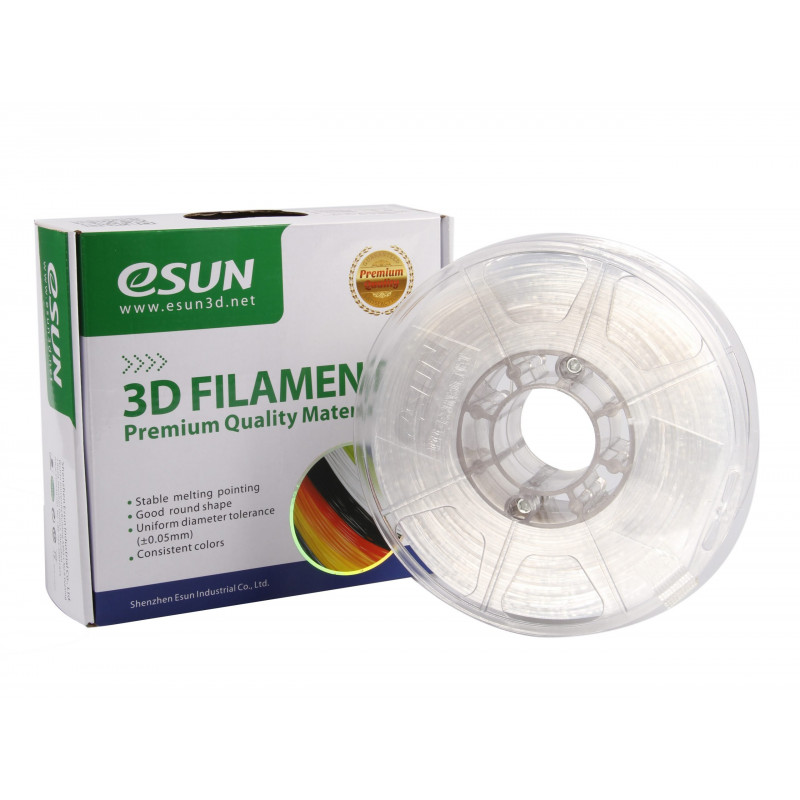

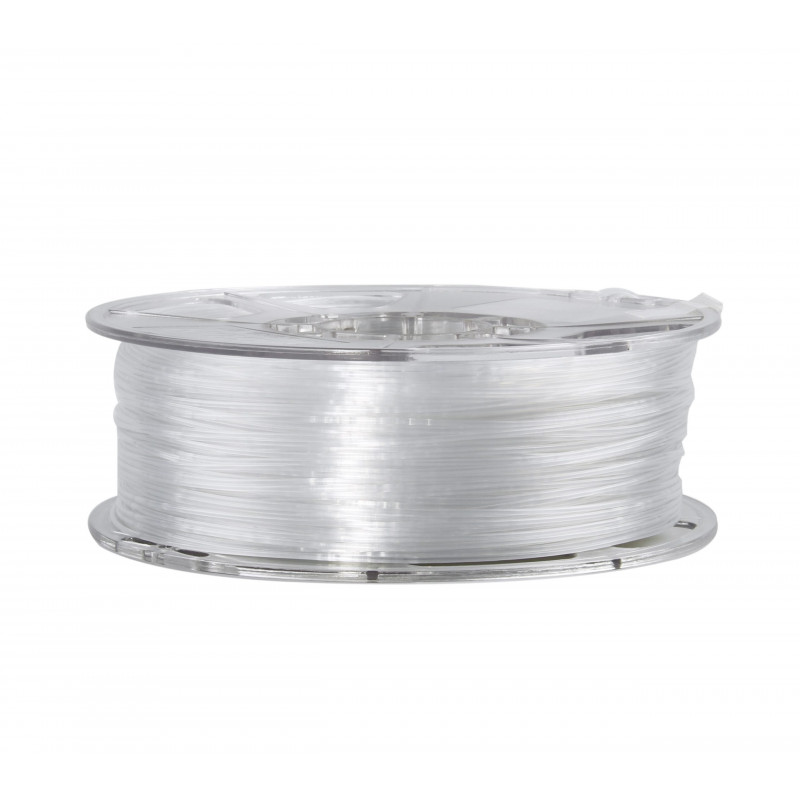

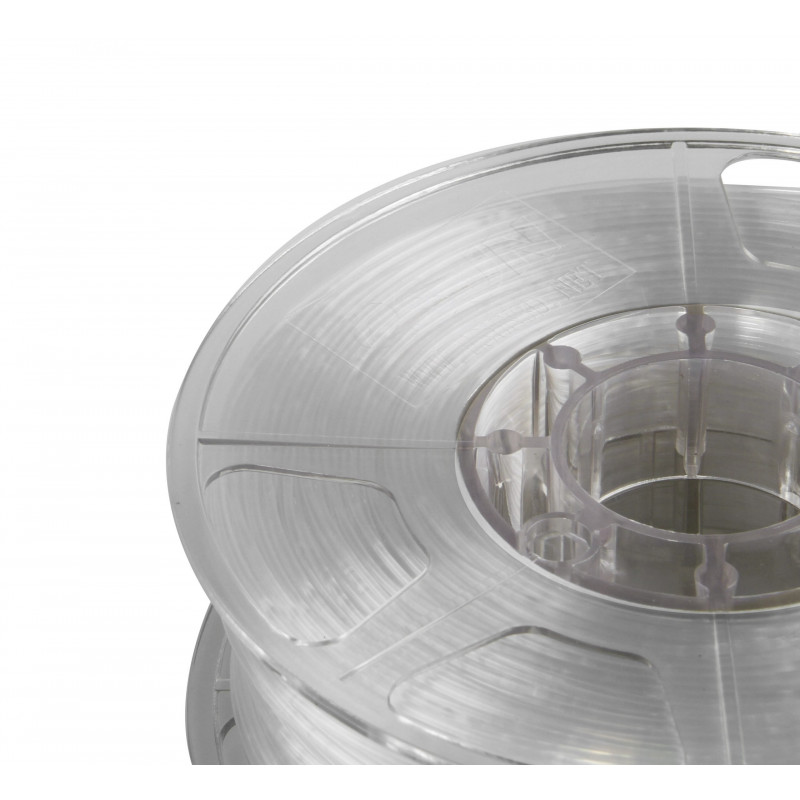

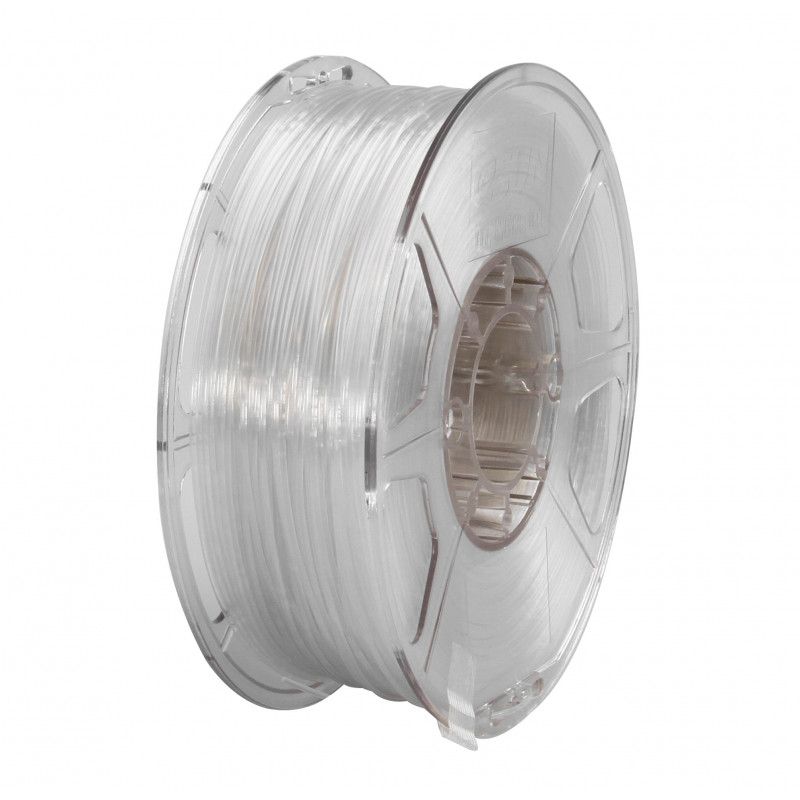

eSun ePC 1.75mm 3D Printing Filament 0.5kg-Natural
- Product Code: EC-7050
- Availability: 12
-
Rs.1599.00
- (Excluding 18% GST)
