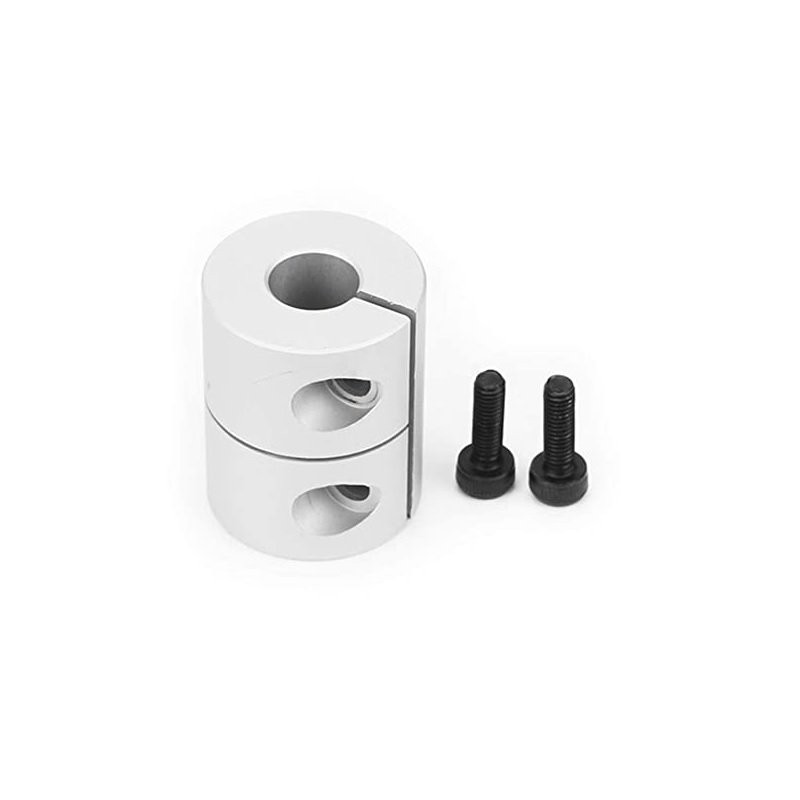

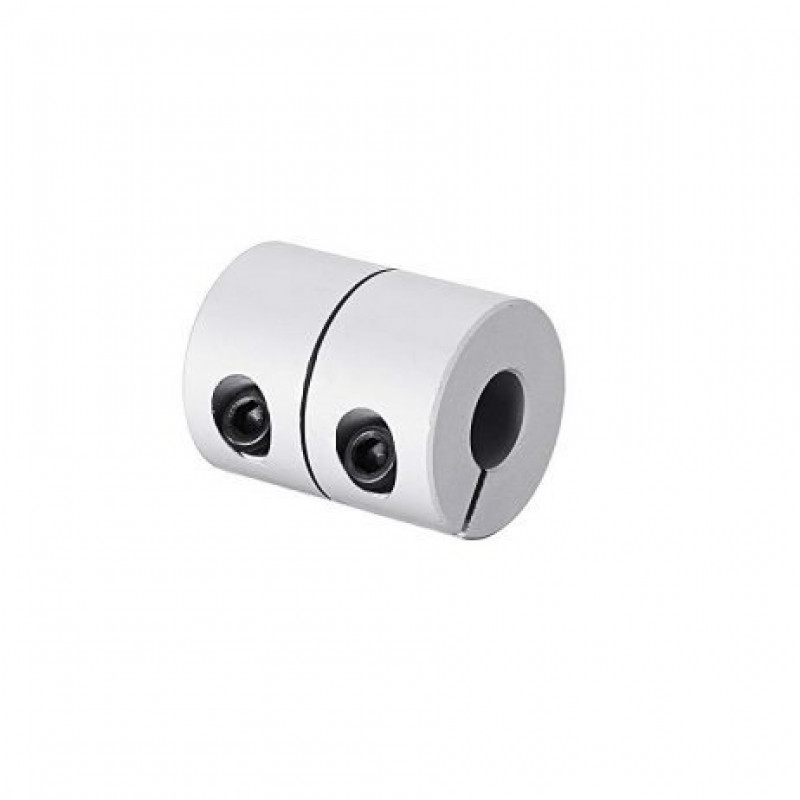

This flexible type of motor coupling by Creality can connect your driving shaft with the driven shaft while it is very efficient in eliminating any misalignment to the possible extent. Minimum backlash is another great advantage of this Flexible coupling? Bore:5x8mm
This Flexible coupling with an outer diameter of 20mm and a length of 25mm is machined aluminum coupling.
The screws that clamp the shafts will be tightened, but not too much. These types of clamping couplings will not damage the shafts.
This 3d Printer coupling kit is corrosion resistant which also makes it more attractive in look. By careful installation and maintenance of couplings, substantial savings can be made to reduce maintenance costs and annoying downtime.
Please note that the bore diameters of this product are d1=5mm and d2=8mm.
Features:
- Exhibits good strength.
- Hardened Mild Steel couplings.
- Fit for all CNC projects
Package Includes:
1 x Creality -Coupling
Specifications :-
| Material | Aviation Alluminium |
| Outer Diameter (OD)(mm) | 20 |
| Bore Diameter [d1] (mm) | 5 |
| Bore Diameter [d2] (mm) | 8 |
| Length (mm) | 25 |
| Weight (gm) | 30 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 565.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Creality -Coupling
- Product Code: EC-8126
- Availability: 8
-
Rs.492.00
- (Excluding 18% GST)
