This is Aluminum GT2 Timing Double Head Pulley 20 Tooth 5mm Bore For 6mm Belt. For precise motion control, GT2 belts and pulleys offer excellent precision at a great price. This pulley is meant for use with GT2 6mm wide belts only MXL belts will slip due to the different tooth profile.
This pulley has 20 teeth, and a 5 mm inner bore. Two set screws can be used to attach it firmly to any 5 mm diameter shaft. Full aluminum construction means these are very light and very durable.
Package Includes :
1 x Aluminum GT2 Timing Double Head Pulley For 6mm Belt 20 Tooth 5mm Bore
2 x (M3x4) Grub screws
Specifications :-
| Material | Aluminium |
| Inner Diameter (ID) (mm) | 5 |
| Outer Diameter (OD)(mm) | 16 |
| Compatible With | M3x4 |
| Length (mm) | 28 |
| No. of teeth | 20 |
| Weight (gm) | 6 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 115.64 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

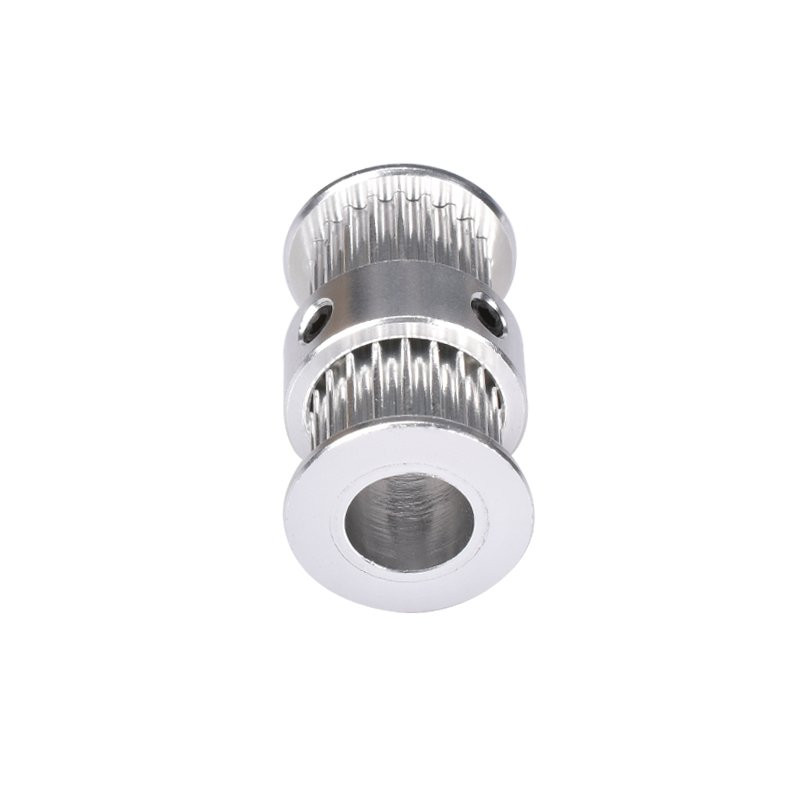

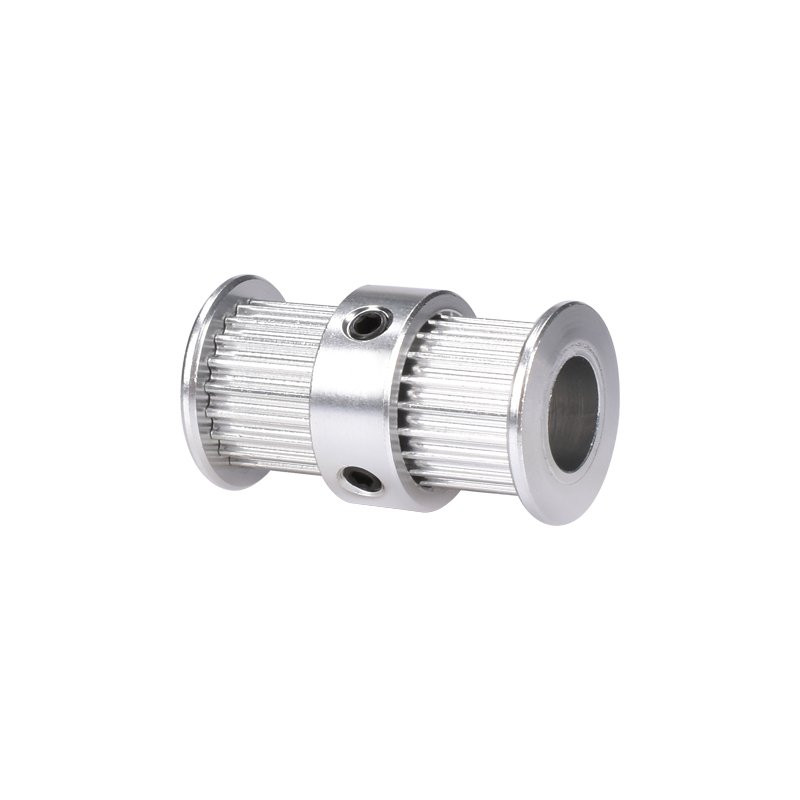

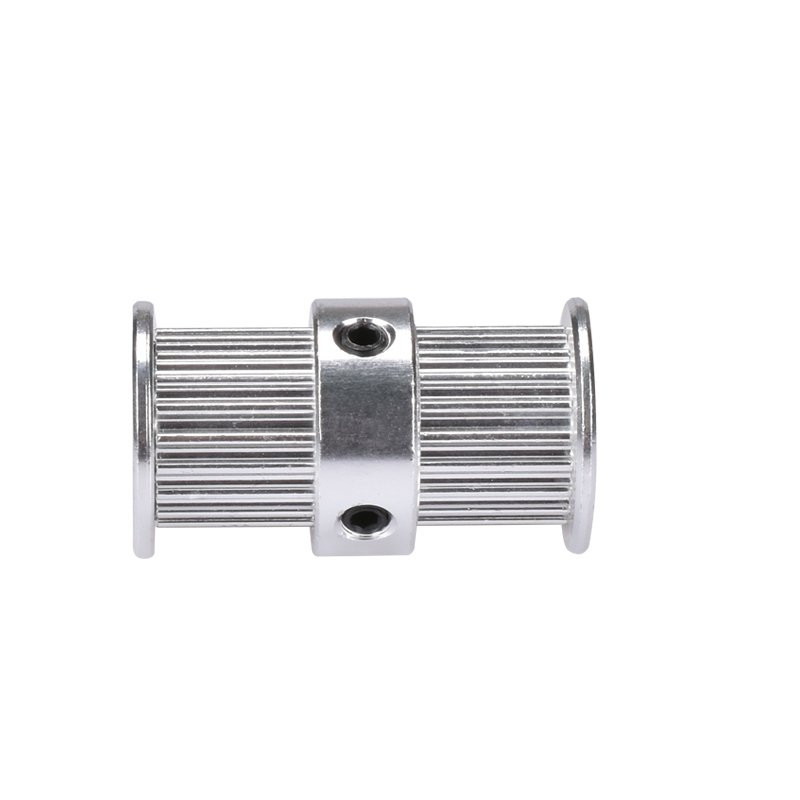

Aluminum 20 teeth GT2 Timing Double Head Pulley 5mm Bore for 6mm Belt
- Product Code: EC-7137
- Availability: 5
-
Rs.122.00
- (Excluding 18% GST)
