This is GT2-6mm Belt Width 16 Teeth 6mm Bore Timing Pulley with 16 Teeth, 4mm bore diameter. Aluminum 16T GT2 timing pulley has a high-quality shiny surface appearance and robust construction, longer working life. The rounded teeth of this tooth and belt are engaged together longer providing a smoother transition between teeth, good performance for 3D printers.
Applications include a 3D printer, CNC, and other robotics with timing belt pulley, GT2 timing belt pulley system especially suited for linear movement and positioning, and its good for GT2 6mm Width Belt.
Note: This Pulley has a 5.7 mm Bore diameter but it fits perfectly to the 6 mm Motor Shaft due to shaft and Pulley dimensions tolerance.
Features:
- High-Quality Aluminium
- Excellently Machined
- Durable and practical
- Minimizes the chance of the belt slipping
- Easy to use
Package Includes:
1 x GT2- For 6mm Belt Width 16 Teeth 5.7 mm Bore Timing Pulley
2 x (M3x3)Grub screws(fitted inside pulley) -2pcs.
Specifications :-
| Material | Aluminium |
| Bore Diameter (B)(mm) | 5.7 |
| Outer Diameter (OD)(mm) | 13 |
| Compatible With | 6mm shaft |
| No. of teeth | 16 |
| Length (mm) | 14 |
| Weight (g) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 149.86 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

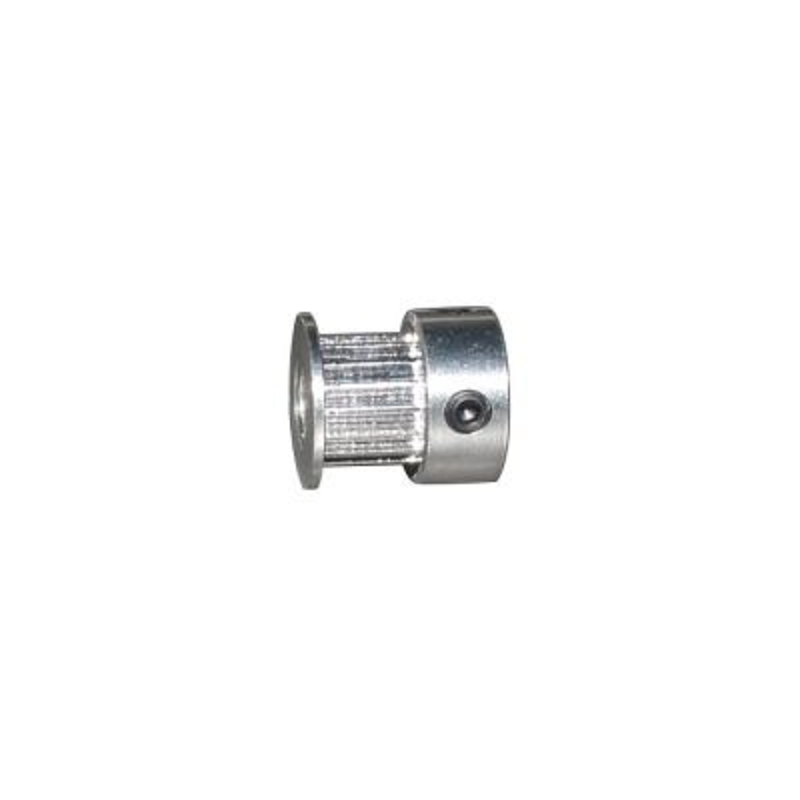

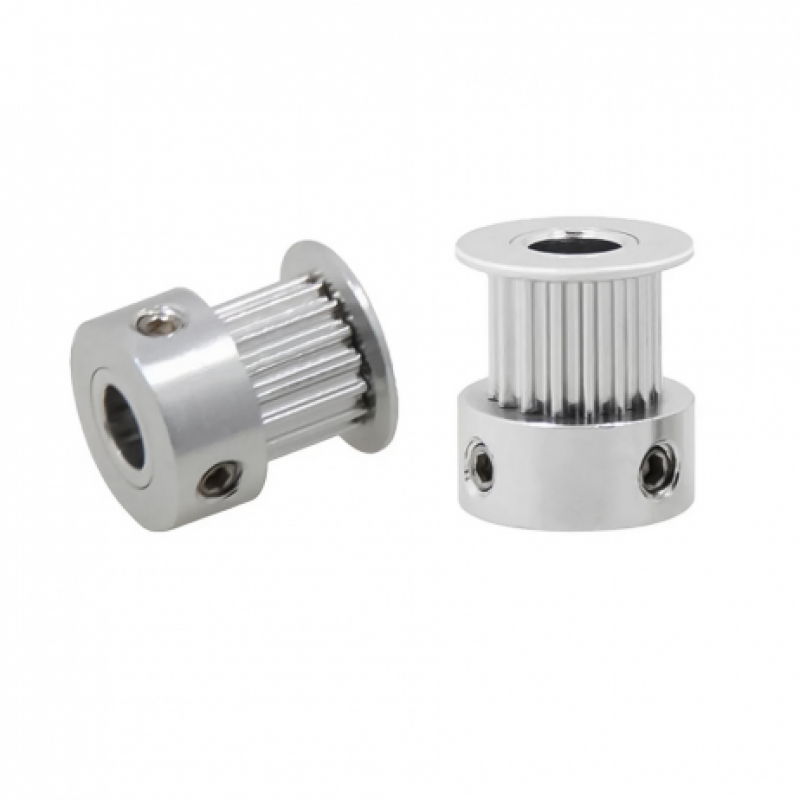

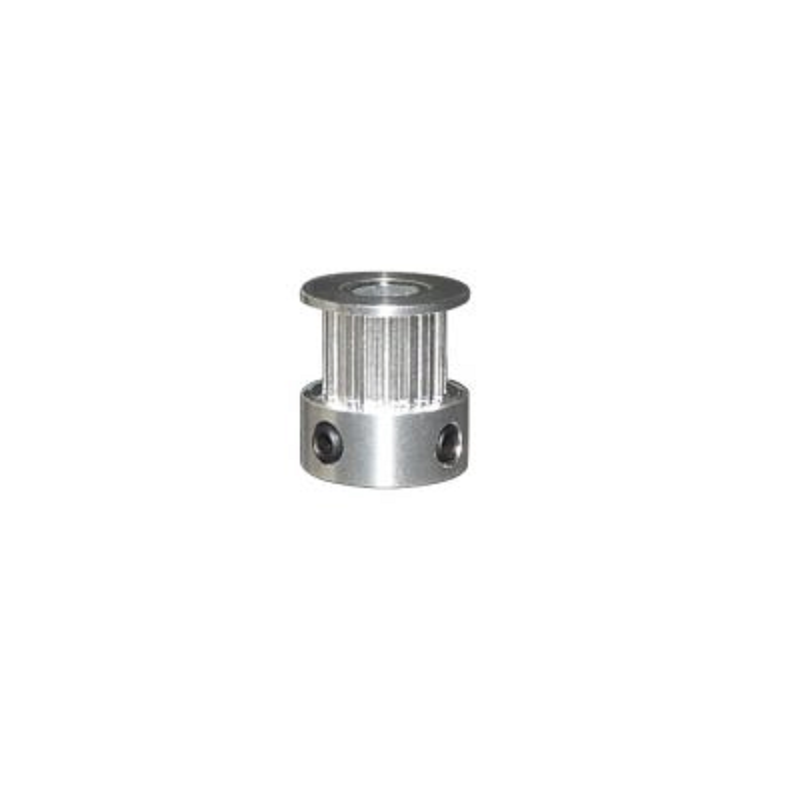

Aluminum GT2 Timing Pulley 16 Tooth 5.7mm Bore For 6mm Belt and 6mm Shaft
- Product Code: EC-7140
- Availability: 69
-
Rs.114.00
- (Excluding 18% GST)
