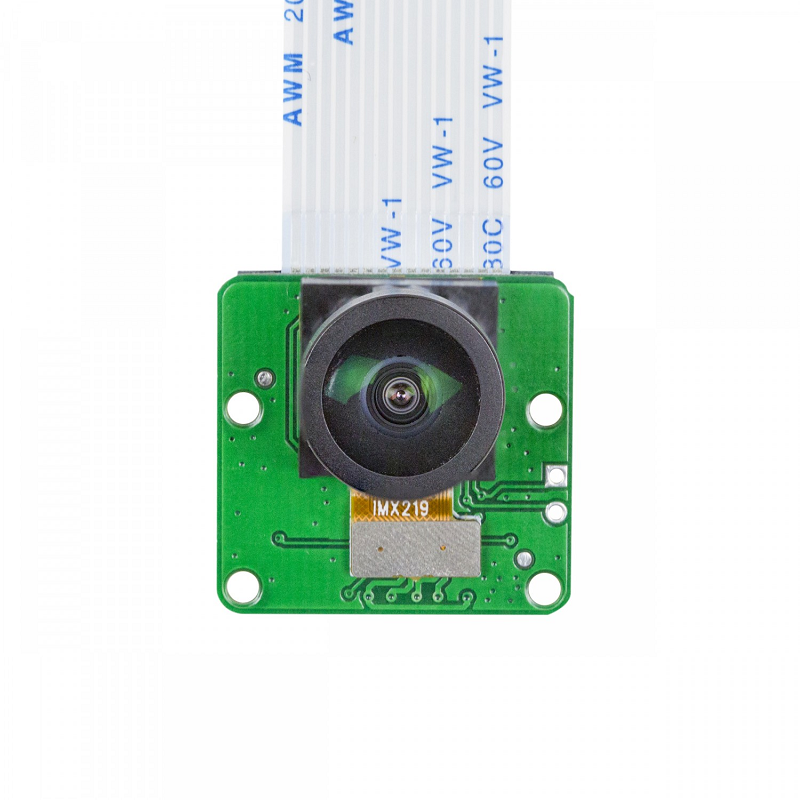

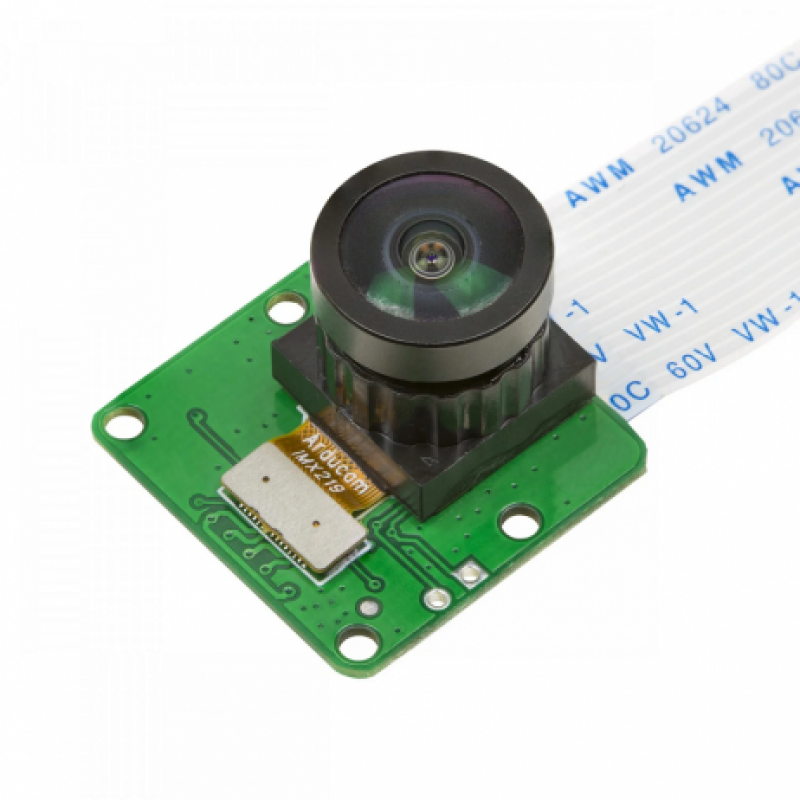

Arducam IMX219 Wide Angle Camera Module for NVIDIA Jetson Nano, Raspberry Pi is one of the best low-cost cameras in the market. Based on the IMX219 image sensor this camera module can get a resolution of 3280 x 2464 with frame rates up to 180fps at 720P. The camera module is based on the 1/4 8MP IMX219 sensor, which gives a sharp image.
Unlike other camera modules, this Arducam IMX219 camera module is equipped with 175 wide-angle M12lens, which provides a much wider field of view compared to the stock lens on the V2 camera. Along with NVIDIA Jetson Nano this camera module can also be used with other hardware like ARM, DSP, FPGA, etc.
Features:
- Sony 8MP IMX219 Sensor
- Optical Format: 1/4 inch
- Frame Rate: 30fps@8MP, 60fps@1080p, 180fps@720p
- Data Format: RAW8/RAW10
- EFL: 2.5mm
- F.NO: 2.8
- Focus Type: Fixed Focus
- View Angle: 175(D) x 145(H) x 77(V)
- Interface: MIPI CSI-2 2-lane/4-lane
- IR Sensitivity: Integral IR Filter, visible light only
Package Includes:
1 x Arducam 8 MP IMX219 Wide Angle IR Sensitive (NoIR) Camera Module for Nvidia Jetson Nano

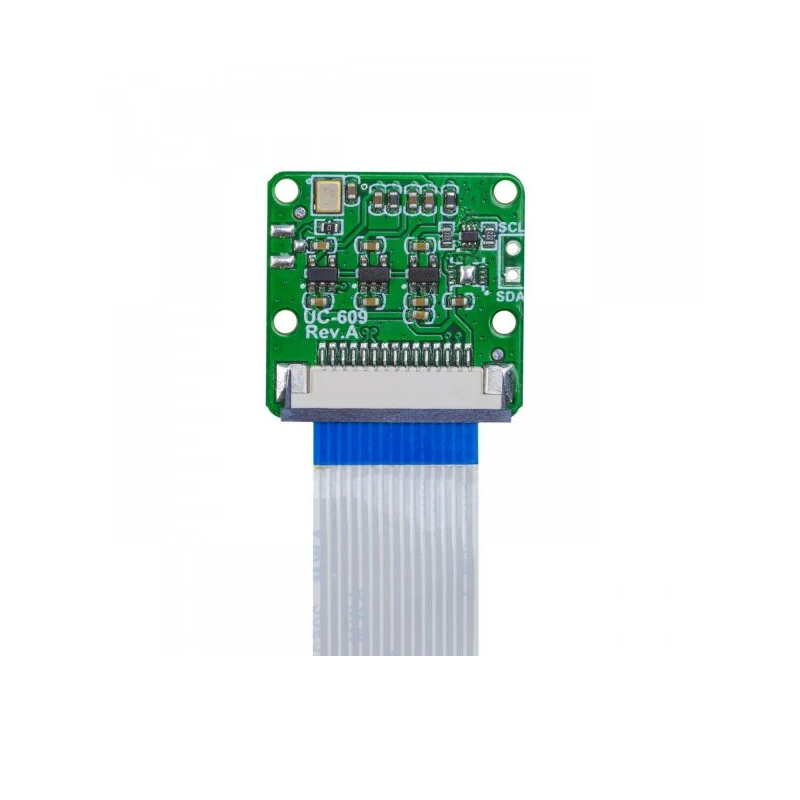

1 x 1.0mm pitch 15cm 15 pin FPC cable
Specifications :-
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Resolution | 8 Megapixel |
| Pixel Resolution | 3280 x 2464 |
| Image Sensor | Sony 8MP IMX219 |
| Lens (inch) | 1/4 |
| Lense Viewing Angle (FOV) | 175 |
| Length (mm) | 26 |
| Width (mm) | 26 |
| Height (mm) | 20 |
| Weight (gm) | 8 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 3833.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Arducam 8 MP IMX219 Wide Angle IR Sensitive (NoIR) Camera Module for Nvidia Jetson Nano
- Product Code: EC-9131
- Availability: 2
-
Rs.2551.00
- (Excluding 18% GST)
