Get high standard Brushless Ebike MY1020 120W 24V 3350RPM DC Electric Motor for your electric bike at the best price. If you have been looking for a brushless wheel hub motor then your search ends here. To build your known e-bike, youll get all the assembly parts & kits here at at the best price! This Motor is one of the most important parts of your Electric Bike.
Ebike 500W 24V DC 2500 RPM scooter bike go-kart minibike e-ATV MY1020, This motor should work with some Xtreme or Razor electric scooter, mini bike, or go-kart using a 500W motor. It should also work with any other brand with similar specs in the motor.
Recommended Product with this Motor:
Motor Controller 24V for MY1020 500W
24V/36V/48V EBike Twist Throttle Grip Accelerator for E-bike
Brake for Ebike
Package Includes :
1 x Ebike 500W 24V DC 2500 RPM scooter bike go-kart minibike e-ATV MY1020.
Specifications :-
| Model | MY1020 |
| Operating Power | 500 W |
| Operating Voltage (VDC) | 24 |
| Rated Current(A) | 2.5 |
| Rated Speed(RPM) | 2500 |

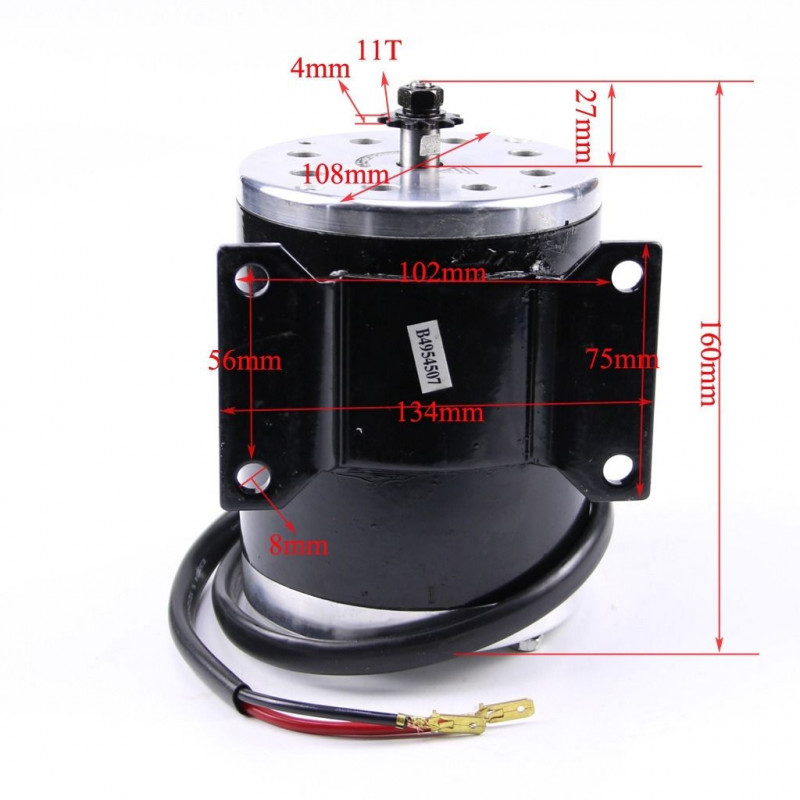

| Height (from the shaft center axis to the bottom of the base plate) | 60 mm |
| Rated Torque (Kg-Cm) | 19.37 |
| Efficiency | 78%. |
| Length (mm) | 160 |
| Width (mm) | 120 |
| Height (mm) | 110 |
| Weight (Kg) | 4.1 |
| Cable Length (Meter) | 0.5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 6134.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Ebike 500W 24V DC 2500 RPM scooter bike go-kart minibike e-ATV MY1020
- Product Code: EC-8372
- Availability: 9
-
Rs.3649.00
- (Excluding 18% GST)
