For lightweight aerodynamic parts, this plain weave carbon fiber features a 3k tow (3000 filaments per fiber) and is a commonly selected fabric style, delivering uniform strength in both horizontal and vertical directions. It is the most popular, most common carbon fiber. It gives to the plate classic carbon fiber look. 3K is the workhorse of carbon fiber.
The strength of carbon fiber reinforced polymer is 6-12 times of steel, and density is less than 1/4 of steel. Based on their superior mechanical properties, they can be used to replace or substitute aluminum or steel tubes in a wide range of projects.
Carbon fiber tube can be used for the following applications:
- Drive Axle
- Telescopic manipulator
- Tripod
- Cleaning poles
- Robotics and UAVS
- Steering columns
- Boat, yacht mast..etc
Features:
- Made of carbon fiber material
- very strong and light.
- High tensile strength
- corrosion resistance and shock resistance.
- High toughness
- High Modulus for superior rigidity
- Fatigue resistance for durable strength
Package Includes:
1 x 3K Carbon Fibre Tube (Hollow) OD12xID10xL1200mm
Specifications :-
| thickness of material | 1mm |
| Length | 1.2meter |
| Production process | Roll-wrapped |
| Material finish | 3K glossy twill surface |
| Glass Transition Temperature | 130C |
| Different densities | 1.5g/cm3 |
| Outer Diameter(mm) | 12 |
| Inner Diameter(mm) | 10 |
| Dimension | 12mm x 10mm x 1200mm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1509.22 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

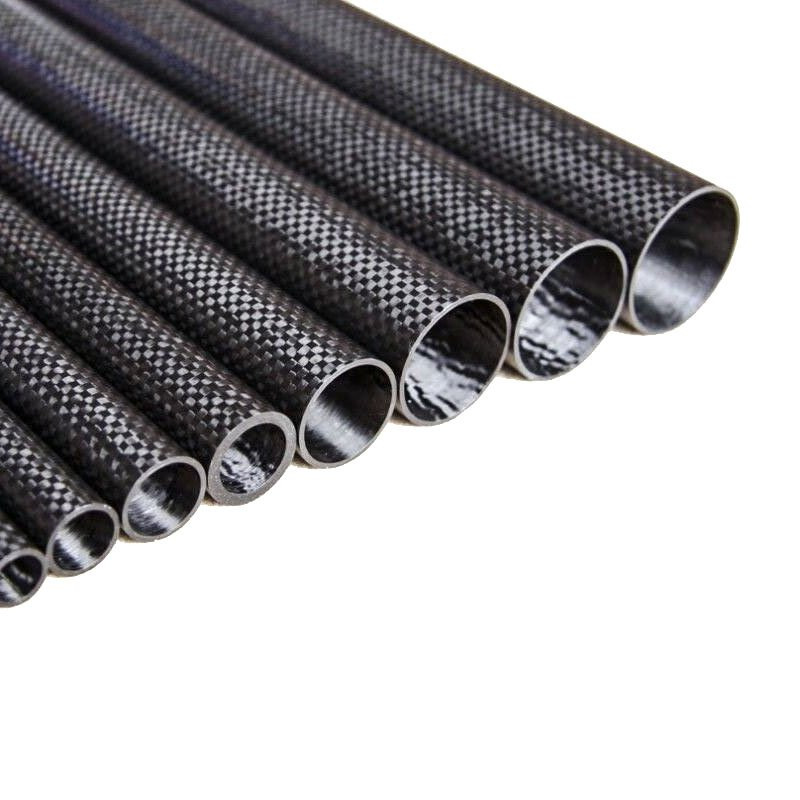

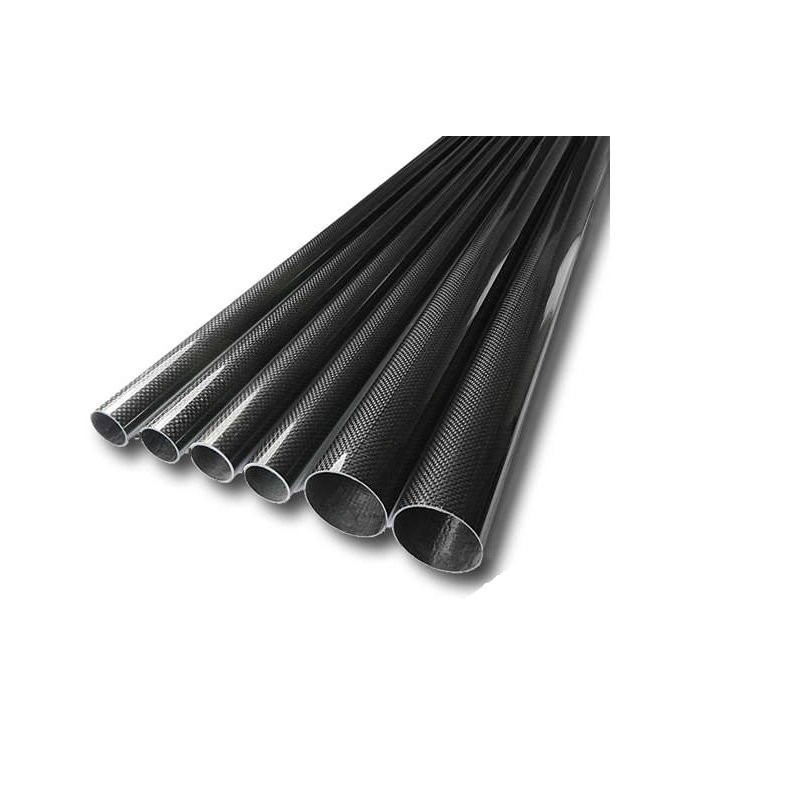

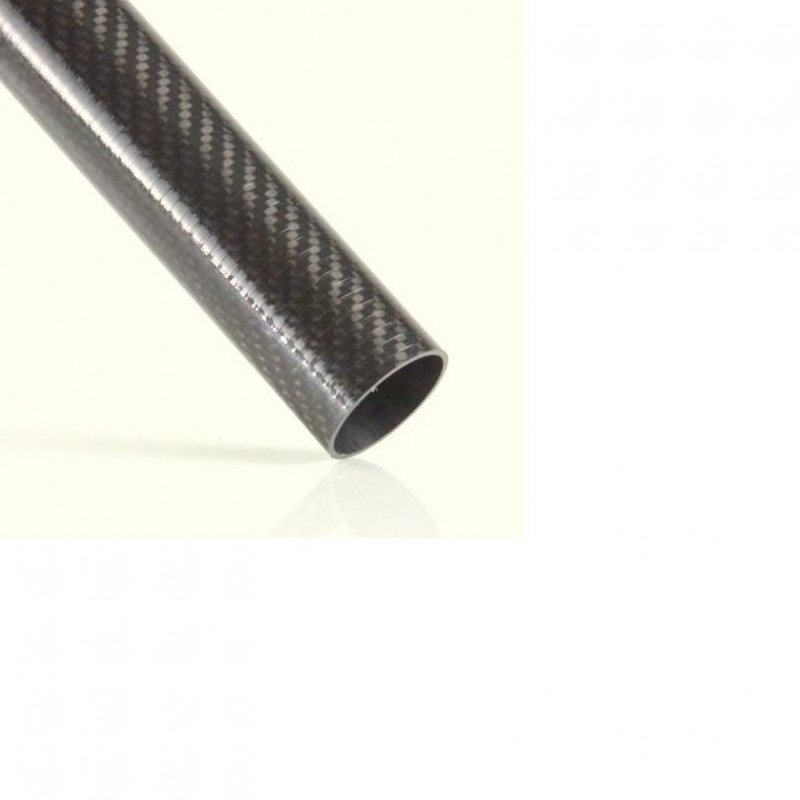

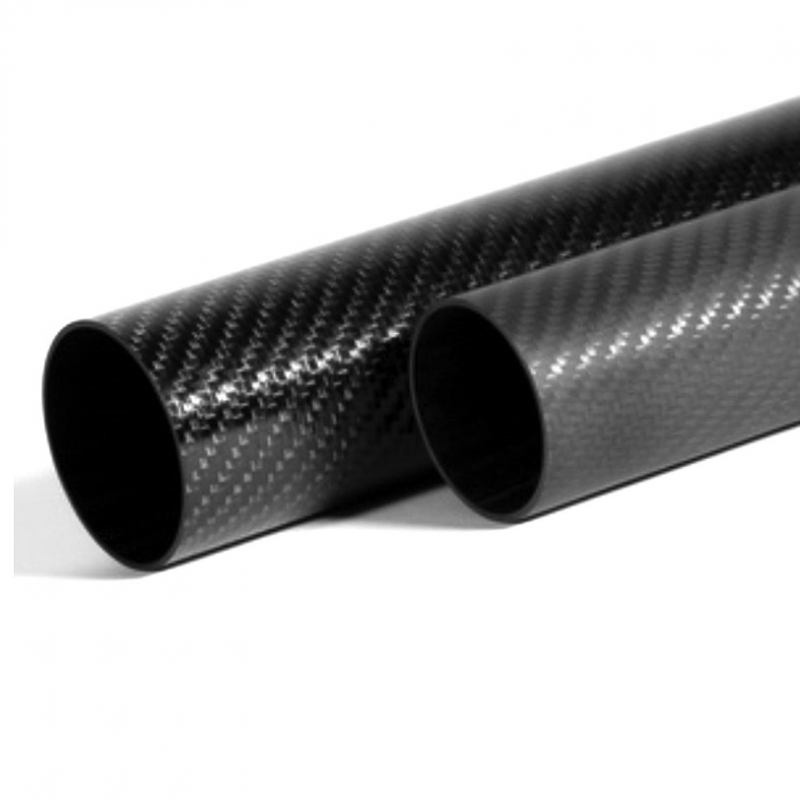

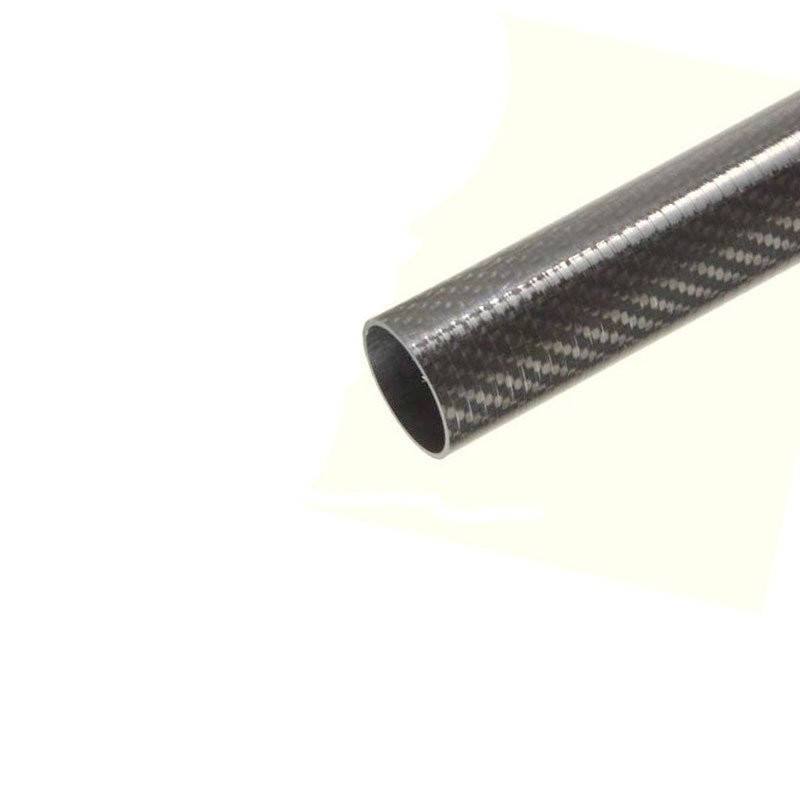

3K Carbon Fibre Tube (Hollow) OD12 x ID10 x L1200mm
- Product Code: EC-8283
- Availability: 19
-
Rs.1187.00
- (Excluding 18% GST)
