Carbon fibre tubes can be used to replace aluminium or steel tubes in a wide range of projects. The Carbon fibre tube of the same weight as an aluminium or steel tube can be much stronger and lighter. This 20mm roll wrapped carbon fibre tube is manufactured predominantly using high modulus unidirectional prepreg carbon fibre oriented to provide maximum strength in the lateral axis.

Roll wrapped carbon fibre tubes offer superior strength in general use to pultruded tubes which have all their fibres running in exactly the same direction.

The use of unidirectional fibres and maximum strength in the lateral axis does mean that the tube is not strong across its diameter as it is along its length so should be used in such a way as to avoid unnecessary crushing forces across the tube.

Roll Wrapping:

The phrase roll wrapped refers to the process used to manufacture these tubes. The prepreg carbon fibre is first laid up around a mandrel in multiple layers. Once the reinforcement is in place it is spiral-wrapped with heat-shrink tape before the whole assembly is oven cured.


Features:

  1. Made of Carbon Fiber material
  2. High Strength
  3. Stable dimension and UV resistant
  4. High Corrosion Resistance
  5. Electrical & Thermal Non-Conductivity


Package Includes:

1 x 3K Roll-wrapped Carbon Fiber Tube Hollow-20mm-ODx18mm-IDx500mm



Specifications :-

Production process

Roll-Wrapped

Thickness (mm)

1

Material finish

3K glossy twill surface

Density ( g/cm)

1.5

Maximum Temperature(C)

130

Inner Diameter (ID) (mm)

18

Outer Diameter (OD)(mm)

20

Length (mm)

500

Dimensions in mm (LxWxH)

20x18x500


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 1001.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

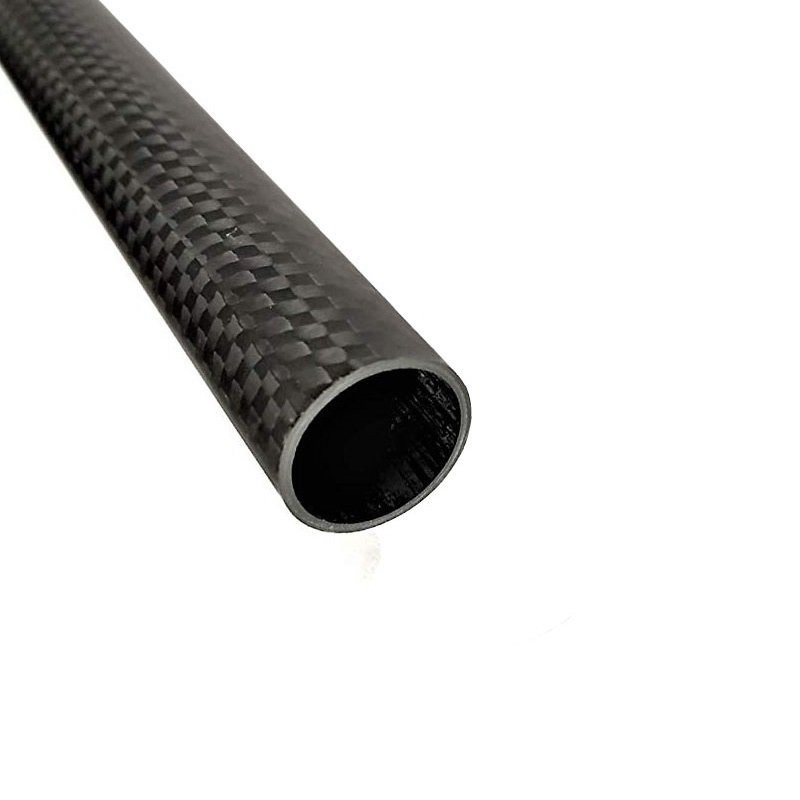

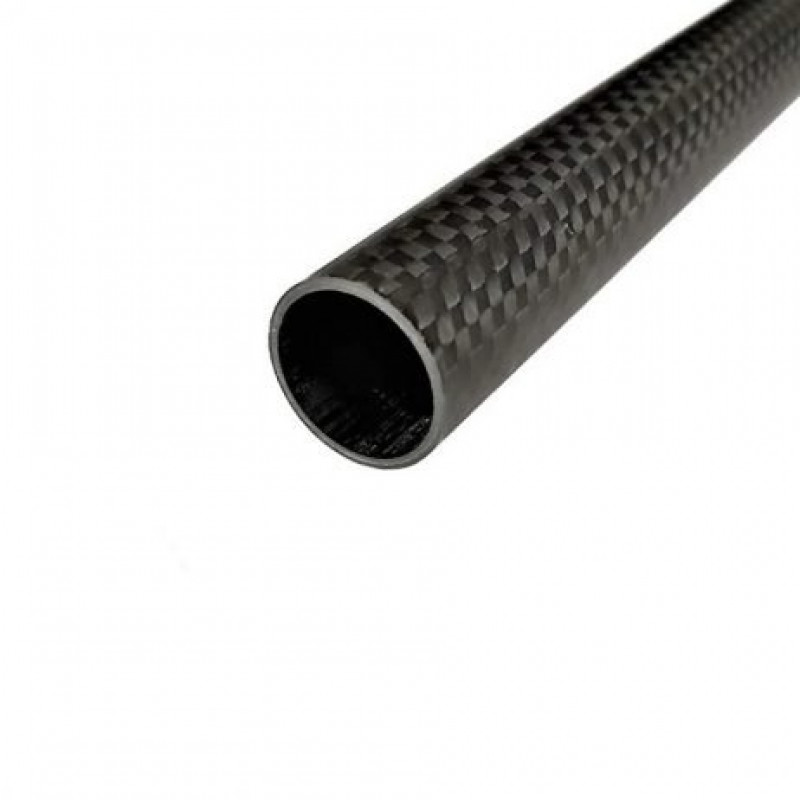

3K Roll-wrapped Carbon Fiber Tube Hollow-20mm-ODx18mm-IDx500mm

  • Product Code: EC-8282
  • Availability: 3
  • Rs.977.00
  • (Excluding 18% GST)

OR

For all Bulk & B2B Product Enquiries Kindly share your requirement at care@electronicscomp.com
