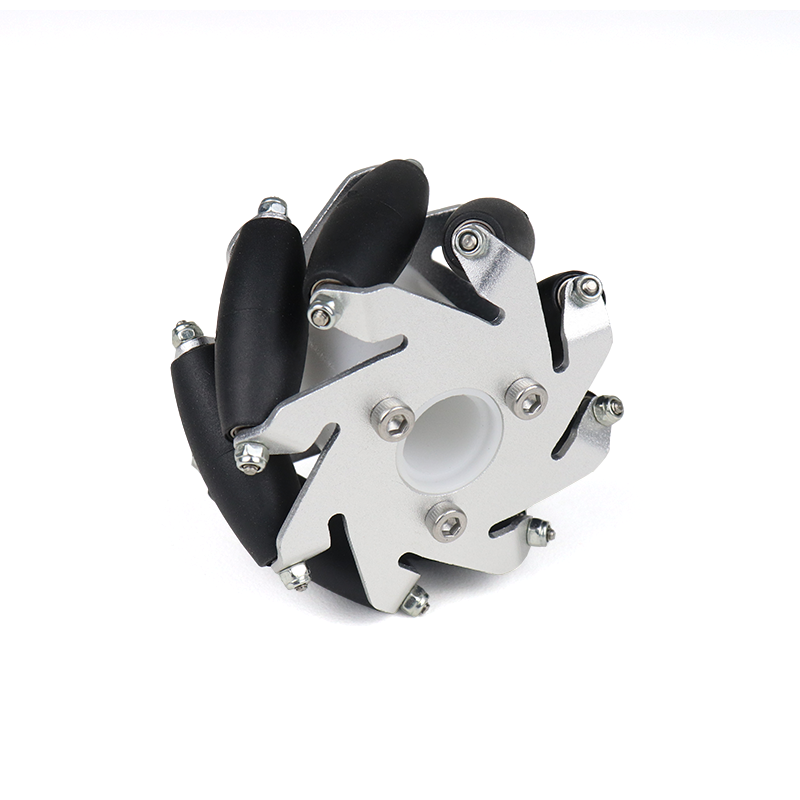

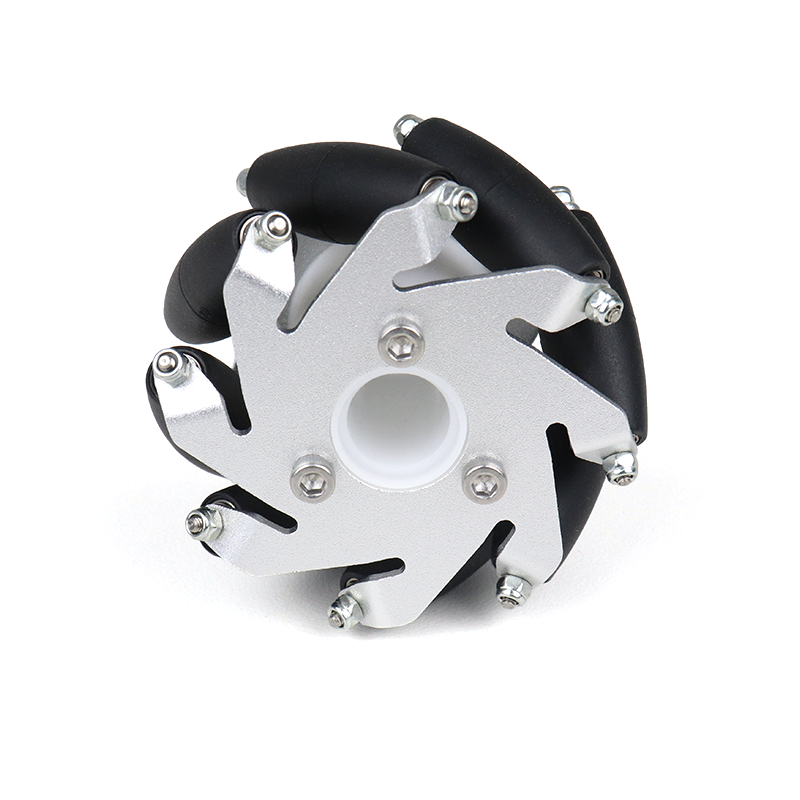

60mm Aluminum Mecanum Wheels SET 2 Left AND 2 Right is the smallest size Mecanum wheel in all of our Aluminum mecanum wheel. Each wheel is comprised of a series of rollers, Using rollers set of 45 rotational axis parallel to the rotational axis of the wheel. The set of 60mm mecanum wheels include 2 left wheels and 2 right wheels. You can also use universal hubs to connect the wheels and motor. All of you need to do is to add your drive motor, controller boards, and batteries.

Moving all four wheels in forward and backward cause direction causes the robot to move in forward and backward. Running wheels opposite to each other on each side causes the robot to move in a lateral way without changing orientation. Other speeds and direction combinations cause the robot to move in different directions. The main advantage of the Mecanum wheels above Omnidirectional wheels is that all four wheels contribute force when the robot is moving in forward, backward, left or right direction without changing orientation.

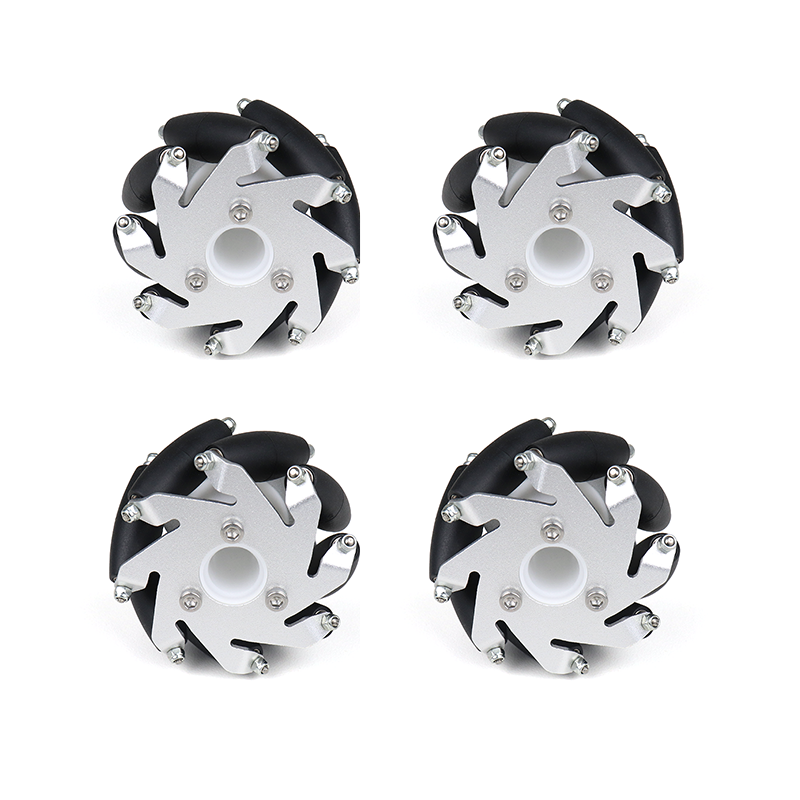

Package Includes :

2 x60mm Aluminum Mecanum Wheels(bearing type roller)Right
2 x60mm Aluminum Mecanum Wheels(bearing type roller)Left

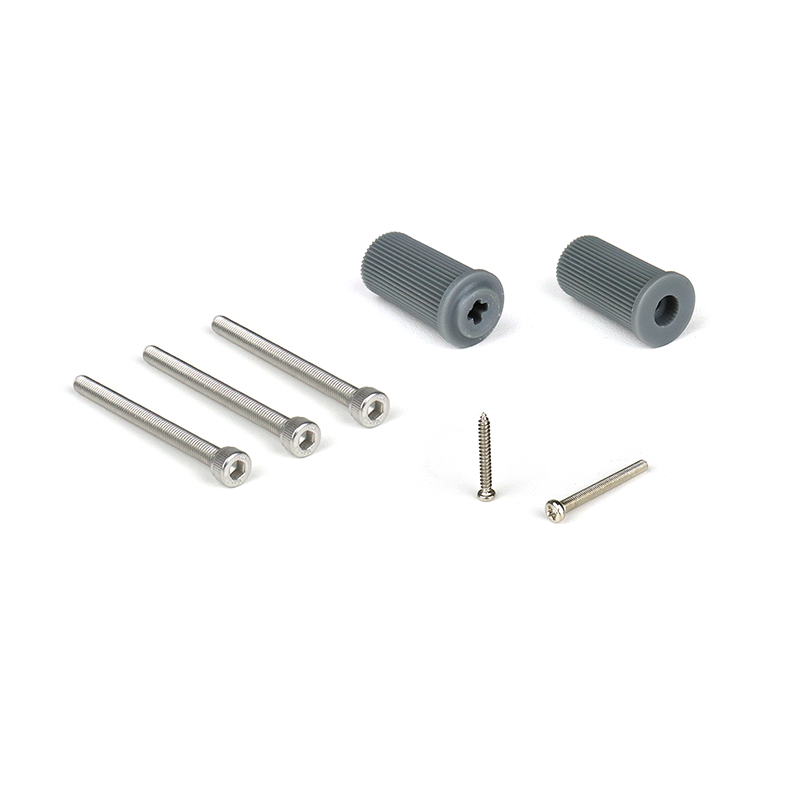

3 x M335 Allen Bolts for coupling per Wheel(i.e. total 12 bolts)
1 x 2-Coupling set per Wheel.



Specifications :-

Roller Type

Bearing

Body Material

Aluminum

Internal Diameter(ID)(mm)

16

Length of Roller (mm)

30

Load Capacity(Kg/Wheel)

3

Net weight (gm)

93
Per Wheel

Number of Plates

2

Number of Rollers per Wheel

8

Outer Diameter (OD)(mm)

60

Roller Material

Nylon+ TPR

Spacer material

Nylon

Wheel Width (mm)

31

Plate Thickness (mm)

2.5

Nut Type

Nyloc Nut.


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 8907.82 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

60mm Aluminium Mecanum Wheels Set (Bearing Type Roller) 4 Pieces Pack

  • Product Code: EC-8159
  • Availability: 4
  • Rs.6685.00
  • (Excluding 18% GST)
