Introduction

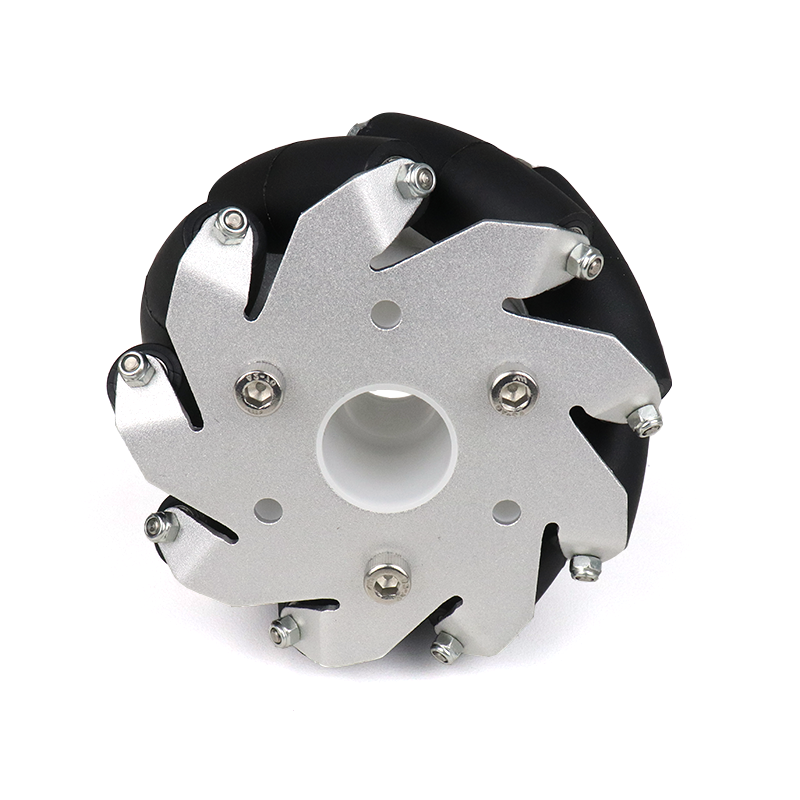

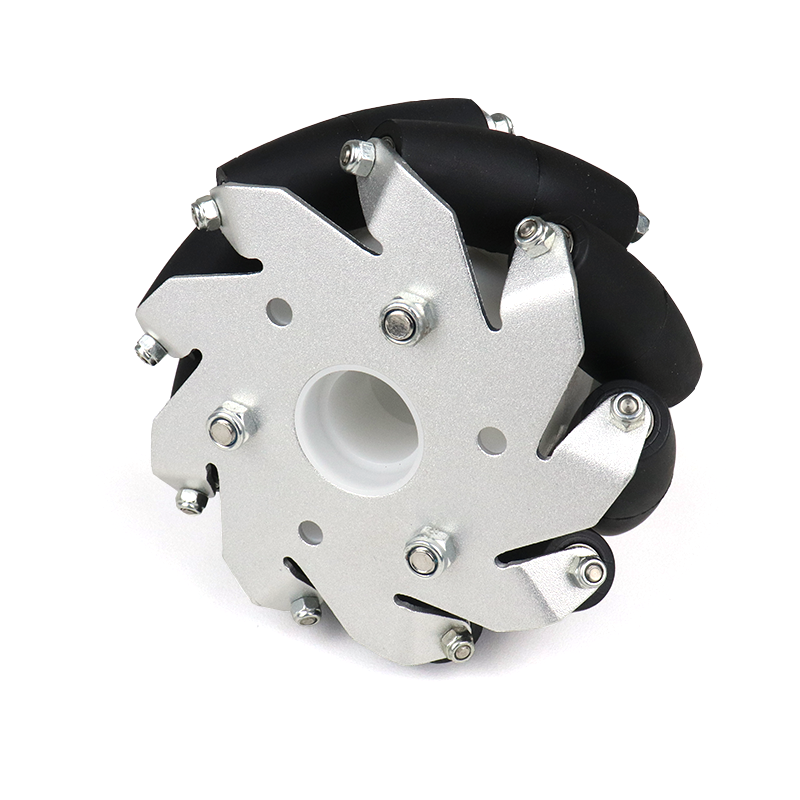

This set of four 100mm Heavy Duty Mecanum 4 Wheels. Mecanum wheel is a wheel with a series of rollers attached to its circumference with rollers having axis of rotation at 45 degrees. These wheels are most suitable for high performance robots, Robocon, Robocup, US First, Battle robots etc. Since Left and right wheels are mirror images of each other these wheels are given as set of 4 wheels.

Mecanum wheel is a wheel with a series of rollers attached to its circumference with rollers having axis of rotation at 45 degrees to the plane of the wheel. In general 4 Mecanum wheels are used in a robot. By varying the speed and direction of the motors robot can be made to move in any direction without changing its orientation.
Moving all four wheels in forward and backward cause direction causes the robot to move in forward and backward. Running wheels opposite to each other in each side causes robot to move in the lateral way without changing orientation. Other speed and direction combinations causes robot to move in different directions. The main advantage of the Mecanum wheels above Omnidirectional wheels is that all four wheels contributes force when robot is moving in forward, backward, left or right direction without changing orientation.

Specifications:

• Outer Diameter: 100mm
• Bore (hole) diameter: 18mm
• Wheel Thickness: 54mm
• Number of rollers: 9 rollers arranged in 45 degrees to the plane of the wheel.
• Weight: 30gms
• Load capacity: 10-12Kg Per Wheel

Package Includes:

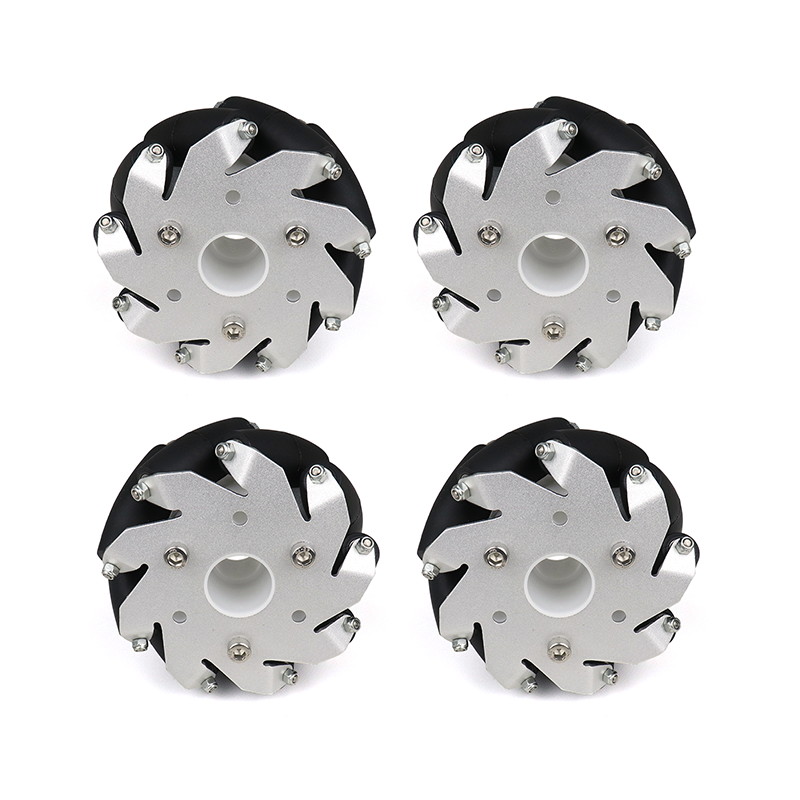

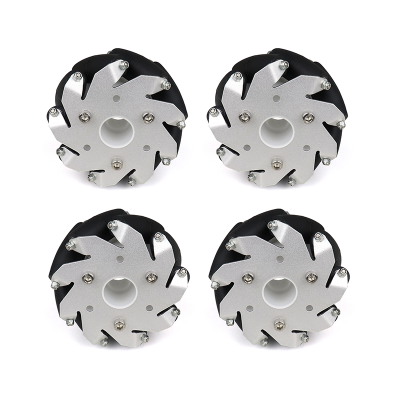

4 x 100mm Heavy Duty Mecanum Wheels (Two left and two right wheels)

Specifications :-

Roller Type	Bearing
Body Material	Aluminum
Diameter of Holes	5 mm (M5 bolt compatible).
Internal Diameter(ID)(mm)	18
Length of Roller (mm)	47.5
Load Capacity(Kg/Wheel)	10 ~ 12
Net weight (gm)	400 Per Wheel
Number of Plates	2
Number of Rollers per Wheel	9
Outer Diameter (OD)(mm)	100
Roller Material	Nylon+ TPR
Spacer material	Nylon
Wheel Width (mm)	54 mm
Plate Thickness (mm)	2.5
Nut Type	Hex Nyloc Nut.
