2M2283 is a subdivided and high-performance stepper motor drive using constant angle and constant torque which is designed for 130BYG110BYG, and other 8A following two-phase, four-phase hybrid stepping motor. The driver uses a circuit that is Similar to the principle of servo control with the features of smooth running, low noise, low vibration, and low-temperature rise of the motor.It has 16 kinds of micro-step, and the micro-step can be set from full step to 51200 steps/rev. The working current can be set from 2.0A to 8.3A, and the output current has 16 stalls, the current resolution is about 0.5A; with automatic semi-flow, self-test, overvoltage, under-voltage, and over-current protection. This driver is AC power, Voltage does not exceed 240VAC not less than 120VAC
Features:
- High-performance, low price
- micro-step
- Automatic idle-current reduction
- Optical isolating signals I/O
- Max response frequency up to 200Kpps
- Low-temperature rise, smooth motion
- Online adaptive PID technology
Package Includes:
1 x 2M2283 Stepper Motor Driver
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

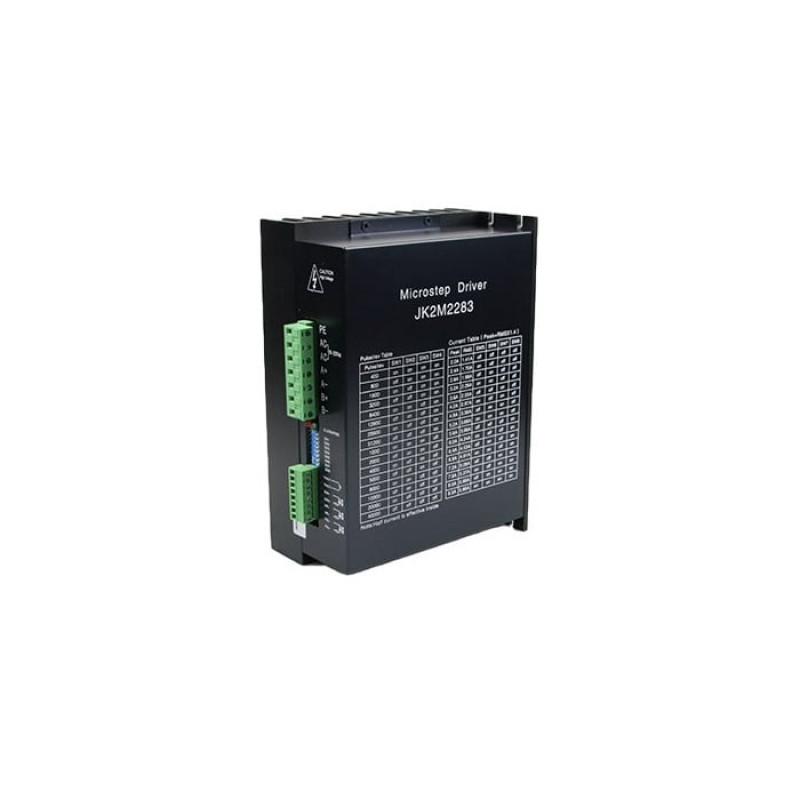

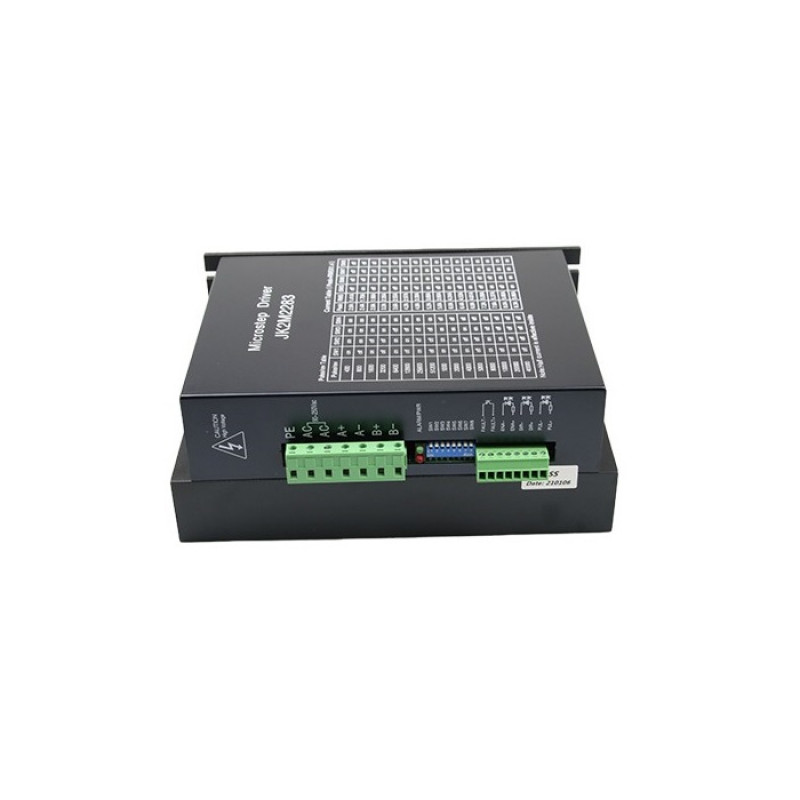

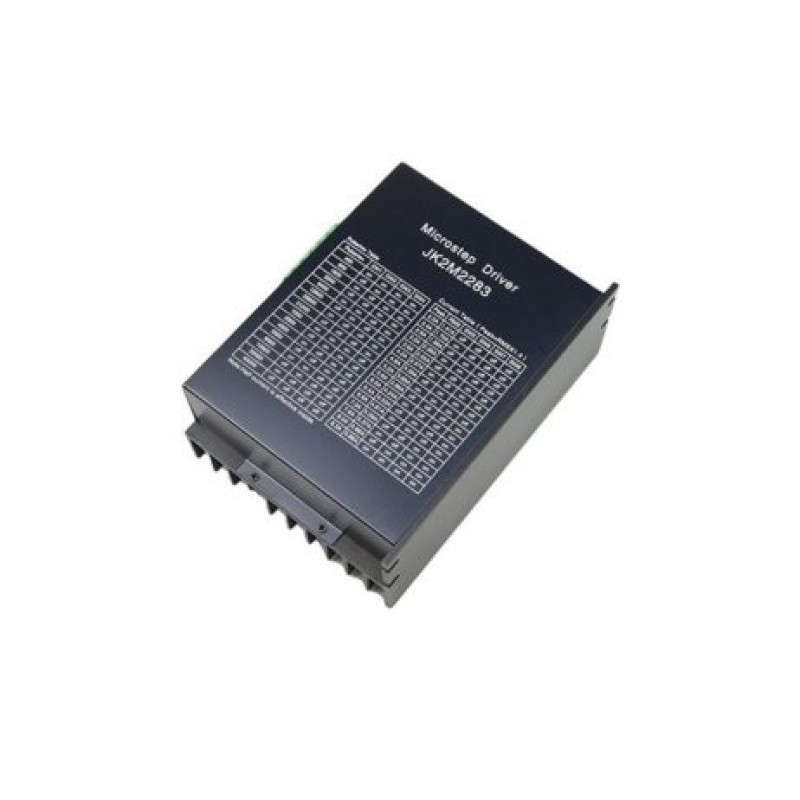

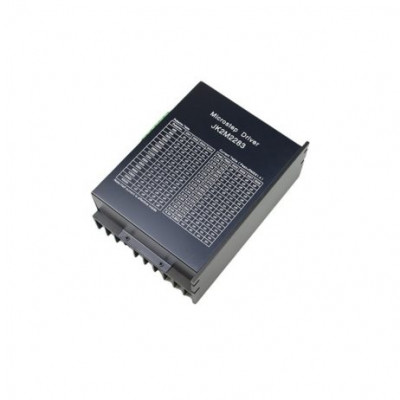

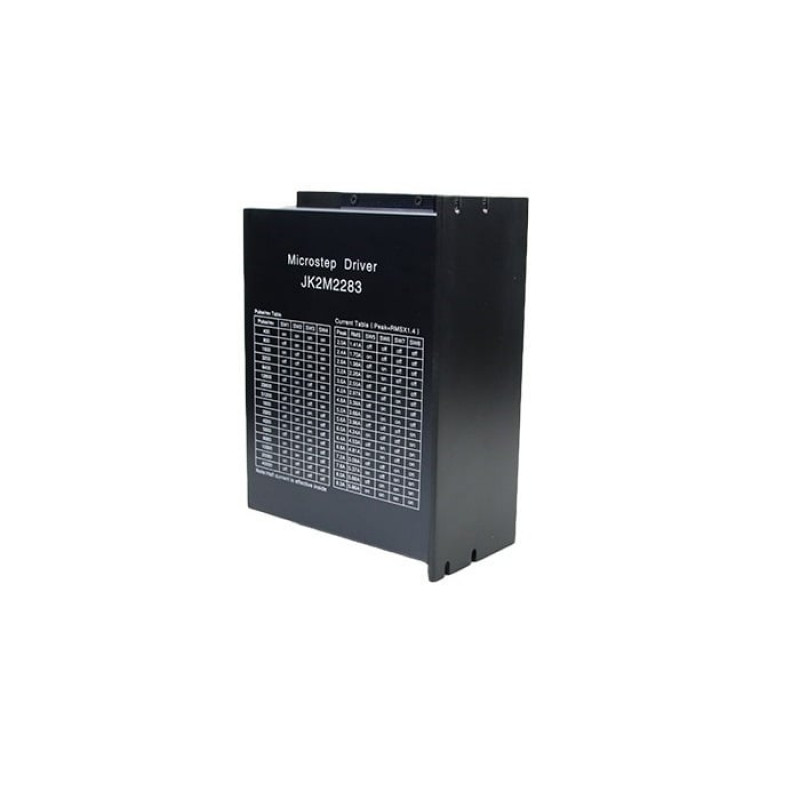

2M2283 Stepper Motor Driver
- Product Code: EC-20156
- Availability: 2
-
Rs.11262.00
- (Excluding 18% GST)
