This Miniature Linear Actuator Stroke Length 300MM, 5mm/S, 6000N, 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the pushrod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, pushrod, sliding seat, shell, micro-motion control switch, etc.
With Reliable performance, sensitive action stable running. Good environment adaptability. High-quality metal material, high-performance motor, built-in stroke switch. Maximum push/pull is up to 6000N, and stroke speed is up to 5mm/s when under no-load. These are commonly used in automotive, medical devices and engineering industry, agricultural machinery,
Note:
1. The actual product may vary in terms of colour and markings.
2. The following conditions can cause serious damage to the product.
1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease.
3. The following conditions may shorten the product life.
1. High-frequency operation
2. High temperature
Features:
- Aluminium frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 12VDC
- Self Locking Force: 6000N
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Package Includes:
1 x Linear Actuator Stroke Length 6000N 5mm/s 12V 300MM
Specifications :-
| Stroke Length (mm) | 300 |
| Operating Voltage (VDC) | 12 |
| Body Material | Aluminium Alloy |
| Operating Temperature Range (C) | -20 to 80 |
| Noise Level (dB) | <40 |
| Cable Length (cm) | 50 |
| Mounting Hole Diameter (mm) | 10 |
| Motor Diameter(mm) | 65 |
| Protection Standard | IP54 |
| Self Locking Force (N) | 6000 |
| Speed at Full Load (mm/Sec) | 5 |
| Speed at No Load (mm/Sec) | 7 |
| Length ( cm ) | 50 |
| Total Width (W) | 8.5cm |
| Height (cm) | 14.5 cm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5314.72 (Inclusive of all Taxes) |

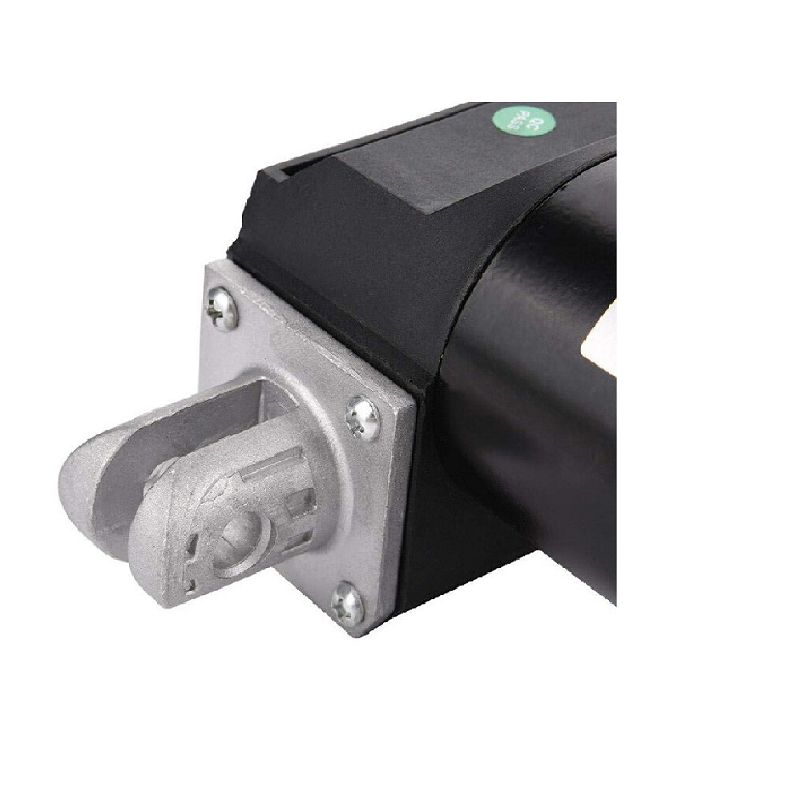

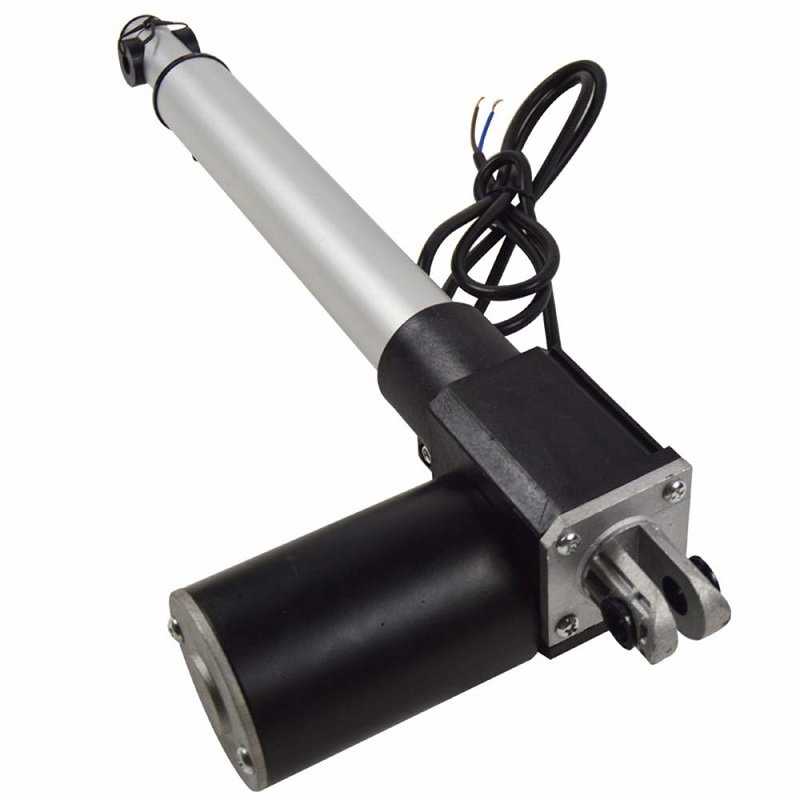

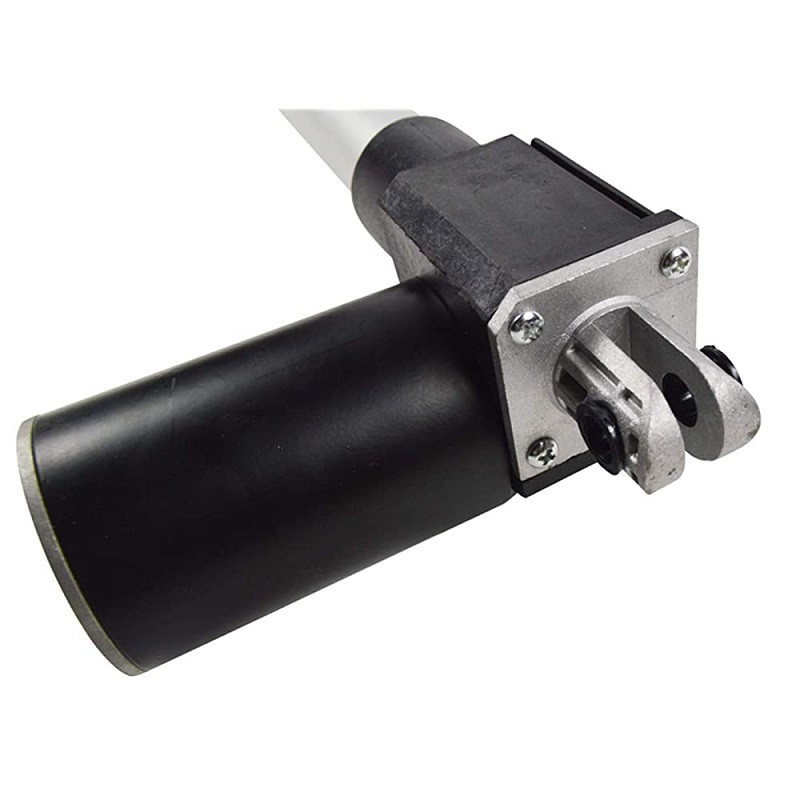

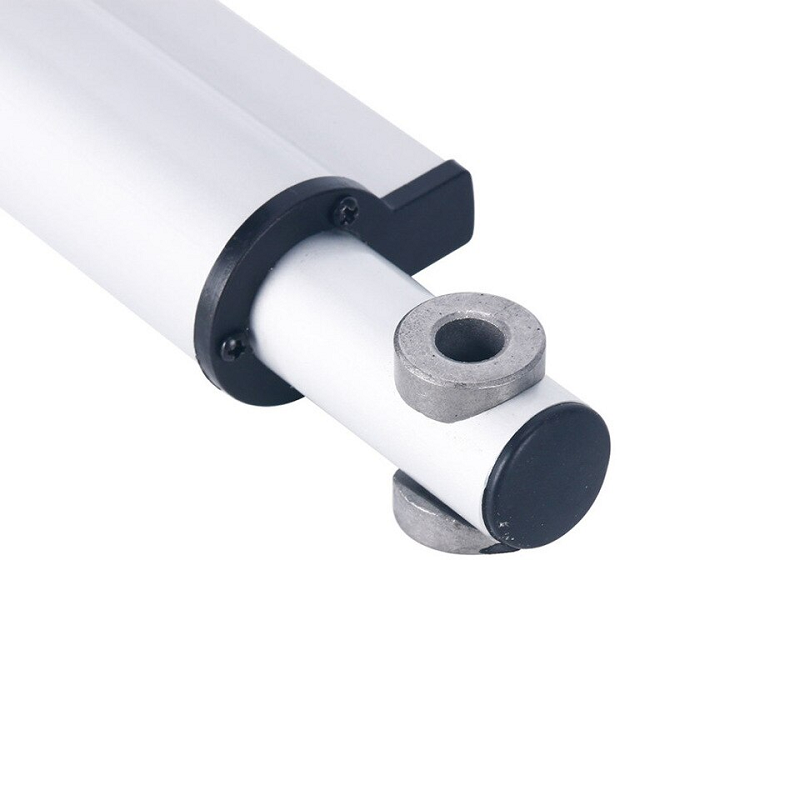

* Product Images are shown for illustrative purposes only and may differ from actual product.
12V 300MM Stroke Length Linear Actuator 6000N 5mm/s
- Product Code: EC-7414
- Availability: 11
-
Rs.4311.00
- (Excluding 18% GST)
