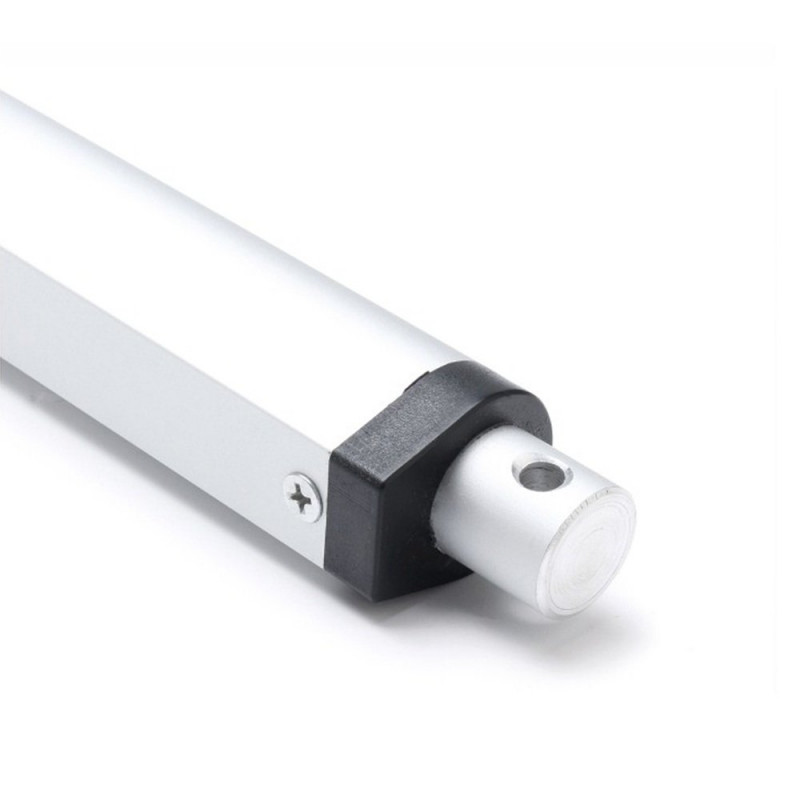

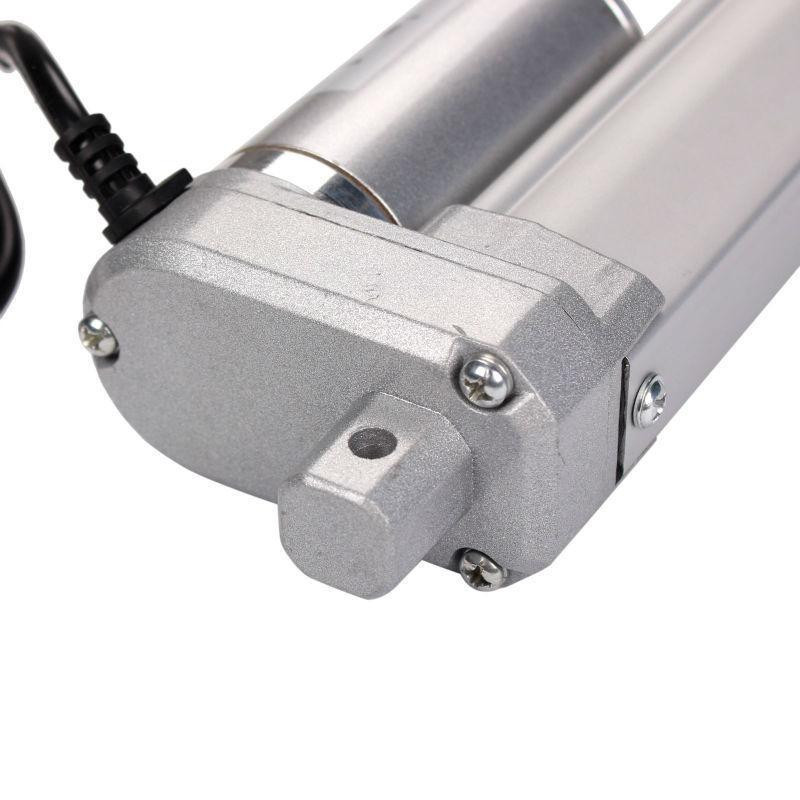

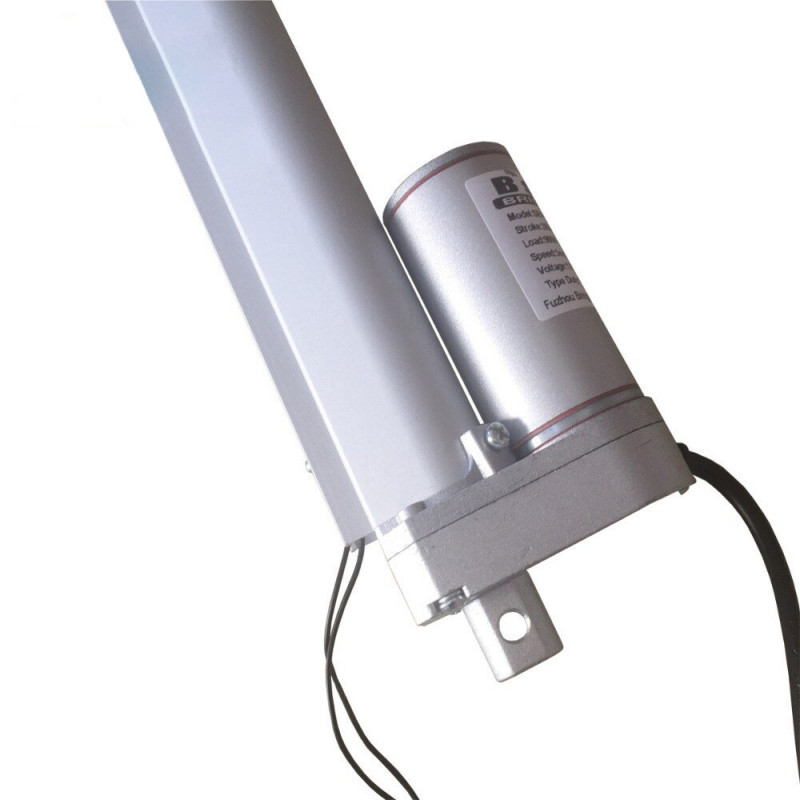

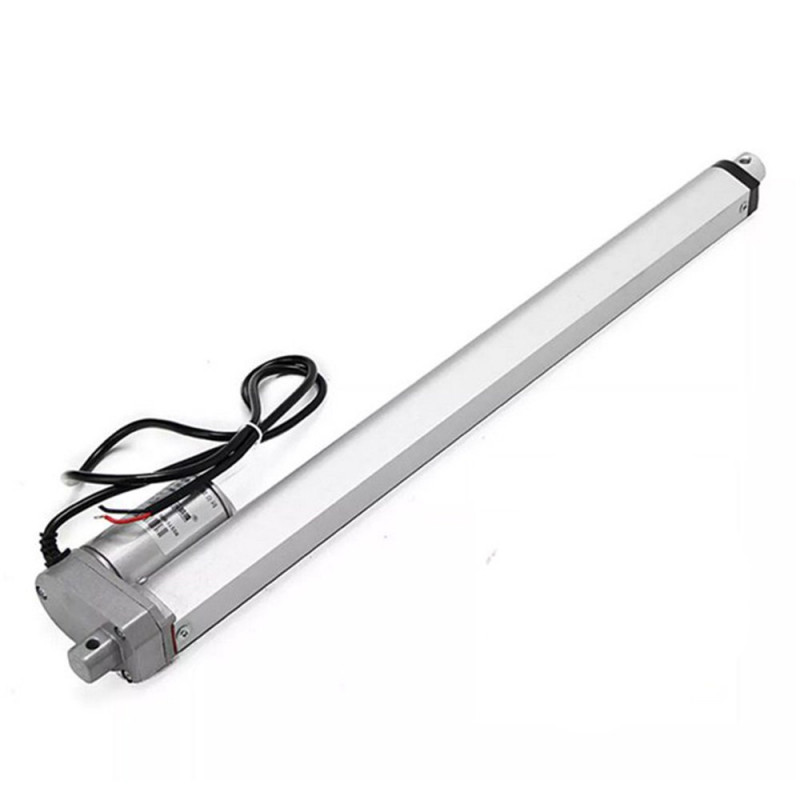

This Miniature Linear Actuator Stroke Length 500MM, 7mm/S, 1500N, 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro motion control switch, etc.
Note:
1. The actual product may vary in terms of color and markings.
2. The following conditions can cause serious damage to the product.
1. Direct connect with AC power
2. Use in the above standard voltage environment
3. Push/Pull exceed the maximum value of the product show
4. The stroke did not finish, still with power, forced to cease.
3. The following conditions may shorten the product life.
1. High frequency operation
2. High temperature
Features:
- Aluminium frame and extension tube
- Compact Design
- Built in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 12VDC
- Self Locking Force: 1500N
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipments: Electric sofa, electric lifting lever, electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Package Includes:
1 x Linear Actuator Stroke Length 500MM, 7mm/S, 1500N, 12V
Specifications :-
| Stroke Length | 500mm(20inches) |
| Permanent magnet DC motor drive | Voltage 12VDC |
| Operating Temperature Range (C) | -20 to 63 |
| Mounting hole diameter (both ends) | 1/4 (6.4mm) |
| Protection Level | IP55 |
| Maximum current draw | 2A |
| Maximum static load | 337.2 lbs. ( 1500 Newtons ) |
| Self Locking Force | 1500N |
| Motor Diameter | 36 mm |
| Speed at no load | 0.28in/sec (7 mm /sec) |
| Speed at full load | 0.22in/sec (5.5 mm /sec) |
| Noise level | 45 dB |
| Weight (gm) | 1476 |
| Length (mm) | 620 |
| Width (mm) | 77 |
| Height (mm) | 37 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5780.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
12V 500MM Stroke Length Linear Actuator 7mm/S 1500N
- Product Code: EC-7424
- Availability: 5
-
Rs.4899.00
- (Excluding 18% GST)
