The DC Motor Speed Controller allows controlling direction of a DC motor using a Pulse-Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. The motor speed controller can provide a continuous current of 8A to your DC motor or other DC load. The circuit also includes a 10A fuse, with the reverse connection of power supply and control voltage over-voltage protection function.
Note:
This can NOT be used to the BRUSHLESS motor. The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity.
Features:-
- Control the speed of a DC motor with this controller.
- High efficiency, high torque, low heat generating.
- With reverse polarity protection, high current protection.
- Control voltage over-voltage protection function
- The overload and short circuit protecting current is 10A
- Working Voltage: DC 12V DC 40V.
- Control Power:0.01 400W.
- Static Current:0.02 A ( Standby ).
- PWM Duty Cycle:10% -100%.
Specifications:-
| Input supply voltage | DC 12V-40V |
| The maximum output power | 400W |
| The maximum continuous output current | 8A |
| Static Current | 0.02 A ( Standby ) |
| PWM frequency | 13kHz |
| Material | Plastic, metal |
| Duty Cycle adjustable | 10%-100% |
| The operation environment temperature: | -20-40 |
| Dimension(cm) | 6*5.5*2.8 |
| Net weight | 69g |
Package Includes:
1 x 12V-40V10A DC Motor PWM Speed Control Switch Governor
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 158.12 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

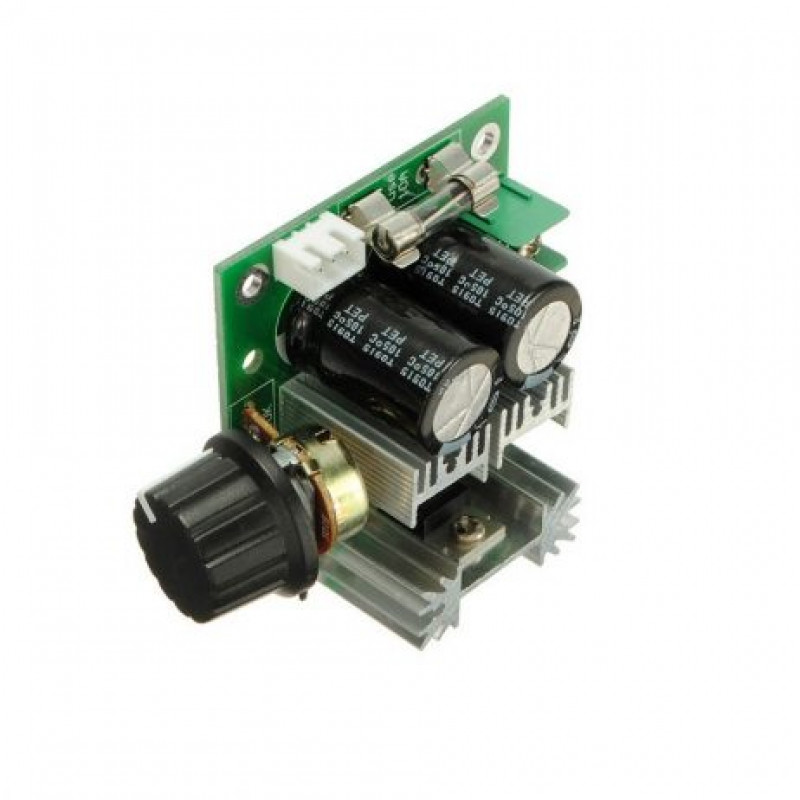

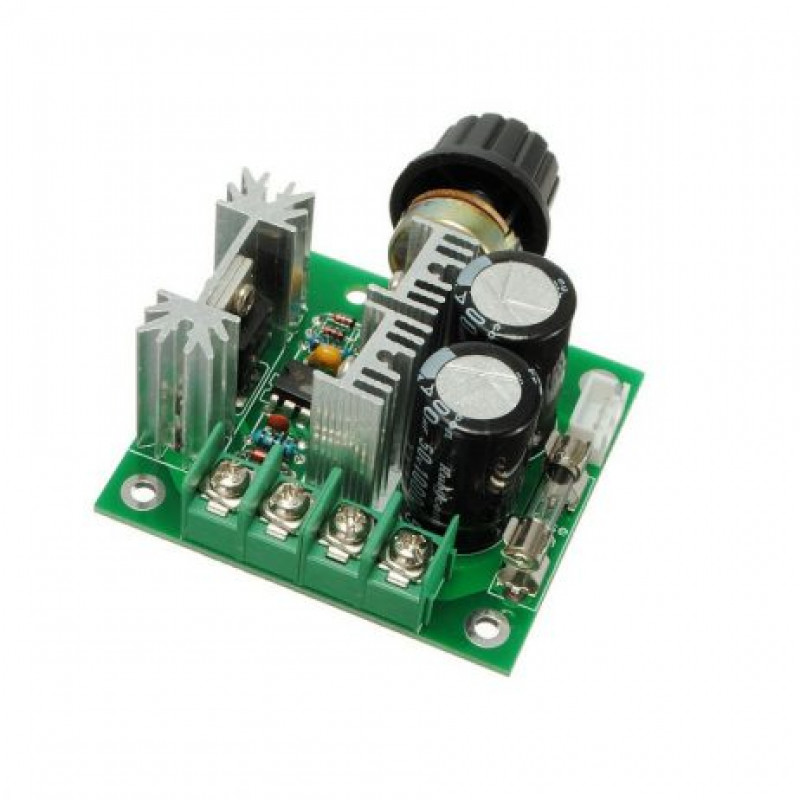

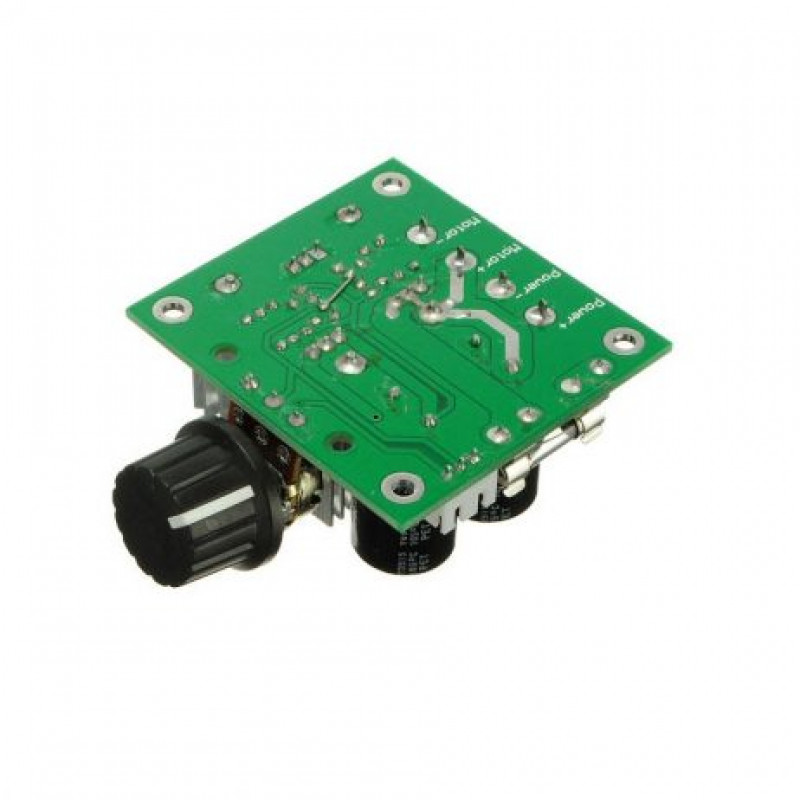

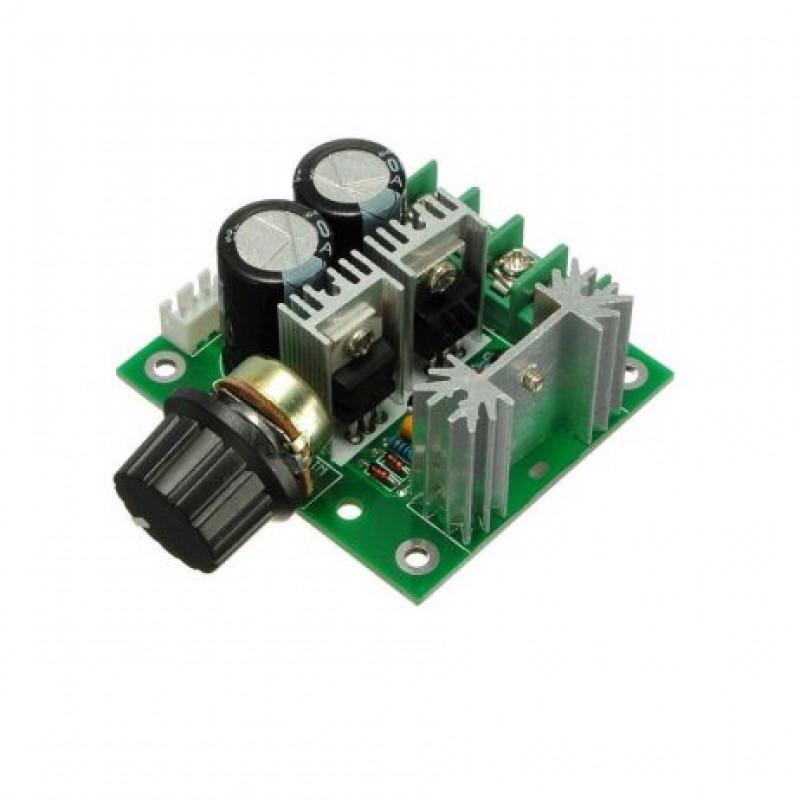

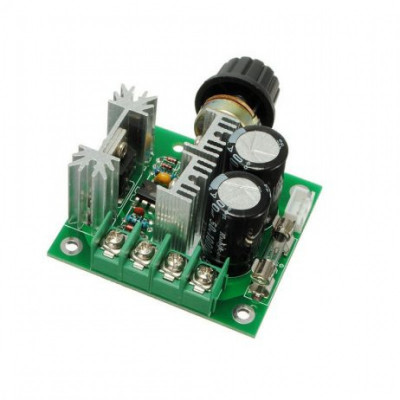

12V-40V 10A DC Motor PWM Speed Control Switch Governor
- Product Code: EC-4766
- Availability: 468
-
Rs.134.00
- (Excluding 18% GST)
