  • TowerPro SG90 Continuous Rotation 360 Degree Servo Motor

Getting an original TowerPro Servo Motor is not an economical option at all!!! And is also a very difficult task to recognizeand buy an originalTowerPro servo, Because there are many suppliers spread over different online shops who are selling fake servo motors under this Brand name.

Robu.in believes in satisfied customers, so whatever the product is we first import them then test them for their supplier defined and standard capabilities. Only after doing all the possible quality checks we make the product available to our customers.

We have imported this copy of original TowerPro SG90 Mini Servo from our trusted supplier. Though these are the copy of the original Mini TowerPro servos, they are compatible with all the applications that use the genuine TowerPro SG90 because of their same size, comparablequality, and optimized performance.

This TowerPro SG90 Continuous Rotation 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.

It equips Carbon Fiber Gears which makes the servo motor much lighter than same metal gear motor. For small load applications using the metal gear servo motor adds on unnecessary weight, so wesuggest using this lightweight plastic gear servo motors.

It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

The good optimized performance and reliability of our servos have made them the favorite choice of many RC hobbyists.

They are packed within a tight sturdy plastic case which makes themwater and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Wire Description

RED Vcc(Positive)

Brown GND (Negative)

Orange PWM(Signal)

We are selling the wide range of Servo Motors with variable specs and quality material, Check them now

Servo Motors and Accessories

Features :

  1. High resolution
  2. Accurate positioning
  3. Fast control response
  4. Constant torque throughout the servo travel range
  5. Excellent holding power

Package Includes :

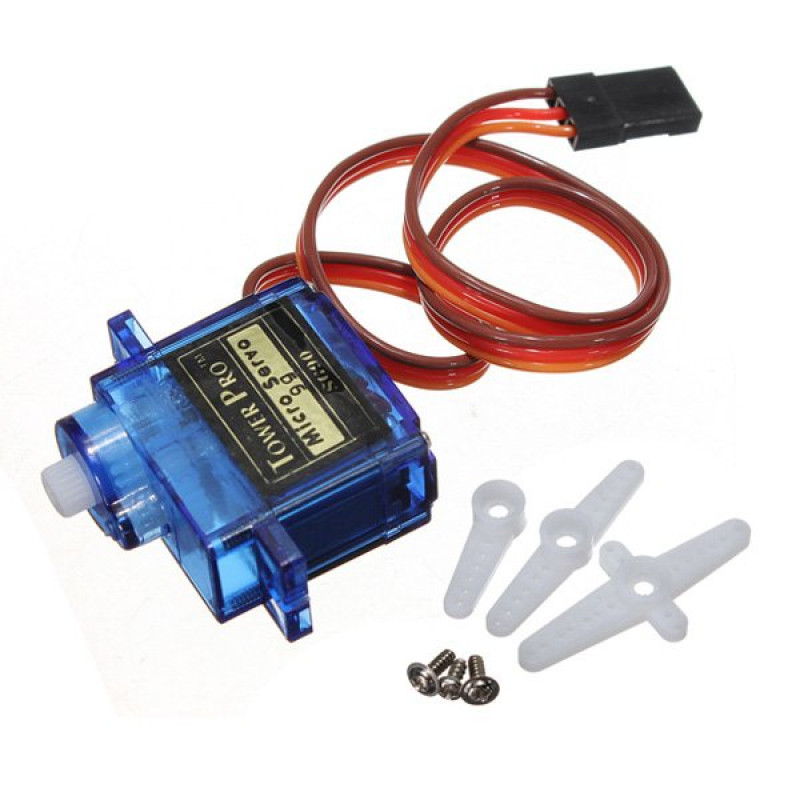

1 x TowerPro SG90 Servo Motor 360 rotation with Cable

Set of Horns

  1. One Point
  2. Two Point
  3. Four Point

1 x Set of Screws


Model

SG90

Weight(gm)

9

Operating Voltage (VDC)

3.0 ~ 7.2

Operating Speed @4.8V

0.12sec/60

Operating Speed @6.6V

0.1sec/60

Stall Torque @ 4.8V (Kg-Cm)

1.2

Operating Temperature (C)

-30 to 60

Dead Band Width ( s)

5

Gear Type

Glass Fiber

Rotational Degree

360

Servo Plug

JR

Cable Length (cm)

25

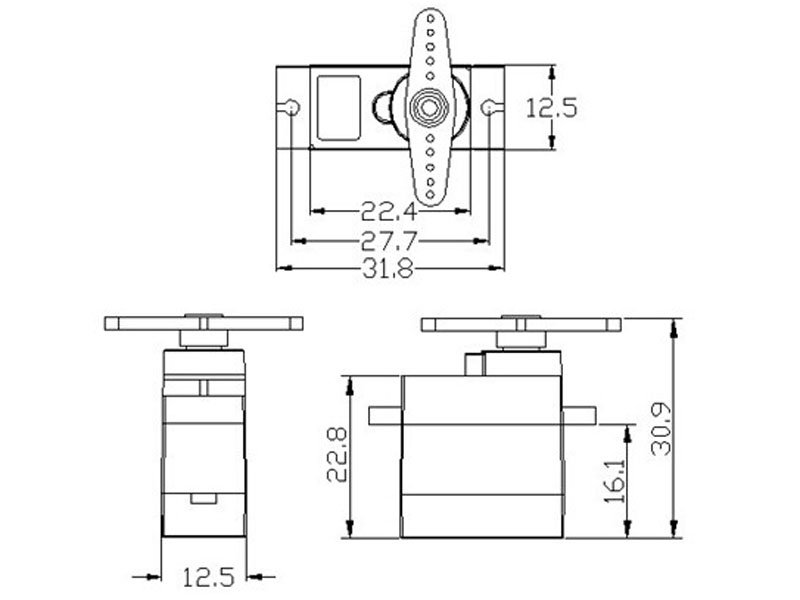

Length (mm)

23

Width (mm)

12.6

Height (mm)

30

Shipment Weight

0.014 kg

Shipment Dimensions

8 6 4 cm


Attachments :


Download
Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 174.64 (Inclusive of all Taxes)
