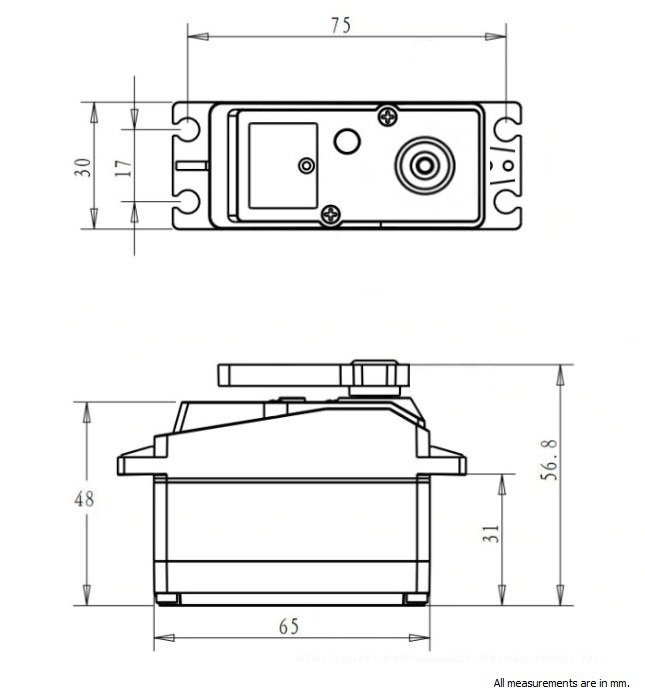

The Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor is the best choice if you need SSG metal geared servo motors. It is waterproof and provides an excellent performance for airplane, helicopter, BAJA cars, RC-cars, and many RC models. It provides 58kg/cm at 6V, and 65kgcm at 7.4V. The product configure table is provided in the attachments. Please refer to it to get more information regd. the dimensions of the product.
2. The working angle of the servo is 180 degree (PWM: 500us-2500us).
Features:
- Durable Metal Gear
- Dual Ball Bearing
- Programmable Digital Amplifier with Mosft Drive
- Bottom Side Axial Mount Hole
- Original factory product
- Less Noise
- Plug/Output wheel/Radio control system compatible with Futaba JR Hitec
- Gear Type: All Metal Gears
- Stable and shock proof double ball bearing design
- Operating Angle: 180 degree
- Orientation Angle: Maximum 180 or 270 degrees
Package Includes:
1 x Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor

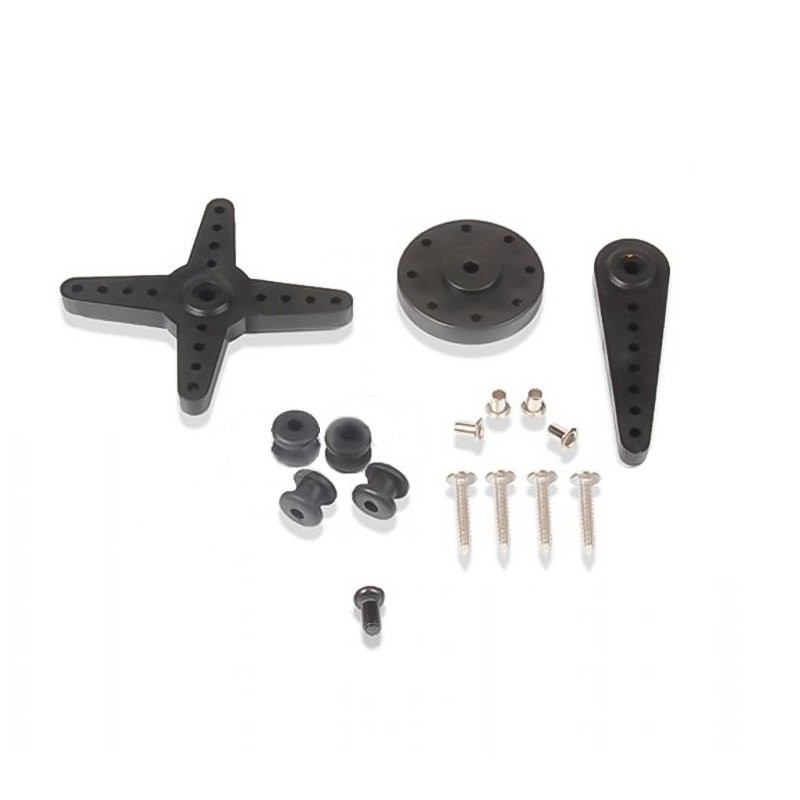

1 x Acessories Set
| Operating Voltage (VDC) | 6 ~ 8.4 |
| Operating Temperature Range | -15C to 70C |
| Storage Temperature Range | -30C to 80C |
| Operating Speed(at 6 V) | 0.17sec/60 degree |
| Operating Speed(at 7.4 V) | 0.15sec/60 degree |
| Operating Speed(at 8.4 V) | 0.13sec/60 degree |
| Stall torque(at 6V) | 58kg.cm |
| Stall torque(at 7.4V) | 65kg.cm |
| Stall torque(at 8.4V) | 70kg.cm |
| Servo wire length | 32 cm |
| Dead zone setting | 3 uS |
| Gear Type | Metal |
| Required Pulse | 500us-2500us |
| Length (mm) | 65 |
| Width (mm) | 30 |
| Height (mm) | 48 |
| Weight (gm) | 160 |
| Shipment Weight | 0.17 kg |
| Shipment Dimensions | 14 9 3 cm |
Attachments :
Download
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 5898.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

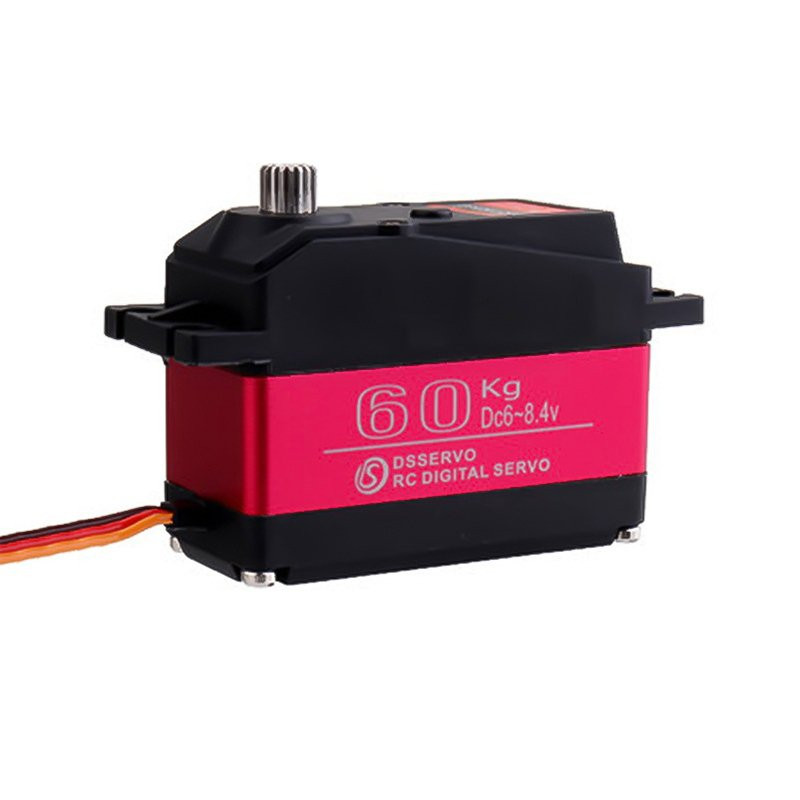

Ultra Torque Quarter Scale 60kgcm Metal Gear Servo Motor
- Product Code: EC-5550
- Availability: 51
-
Rs.1580.00
- (Excluding 18% GST)
