A servo motor is a rotary actuator that allows for precise control of angular position. It consists of a motor coupled to a sensor for position feedback. It also requires a servo drive to complete the system. The drive uses the feedback sensor to precisely control the rotary position of the motor. This is called closed-loop operation. By running the system closed-loop, servo motors provide a high performance alternative to stepper and AC induction motors.
Features and Specifications:-
- Operating Voltage: 4.8-6.0 V
- PWM Input Range: Pulse Cycle 20±2ms, Positive Pulse 1~2ms
- STD Direction: Counter Clockwise / Pulse Traveling 1500 to 1900µsec
- Stall Torque: 5Kgf.cm (69.5 oz/in) at 4.8V, 6Kgf.cm (83.4 oz/in) at 6V
- Operating Speed: 0.33 sec/ 60° at 4.8V, 0.3 sec/ 60° at 6V at no load
- Weight: 43g (1.5 oz)
- Size: 43 x 23 x 38.2 mm (1.69 x 0.91 x 1.5 in)
- Plug Available: FUT, JR
- Special Feature: Heavy Duty Plastic Gears , Economy Servo
Package Includes:-
1 x VTS-08A Servo Motor - 6kgf.cm Torque
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 731.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

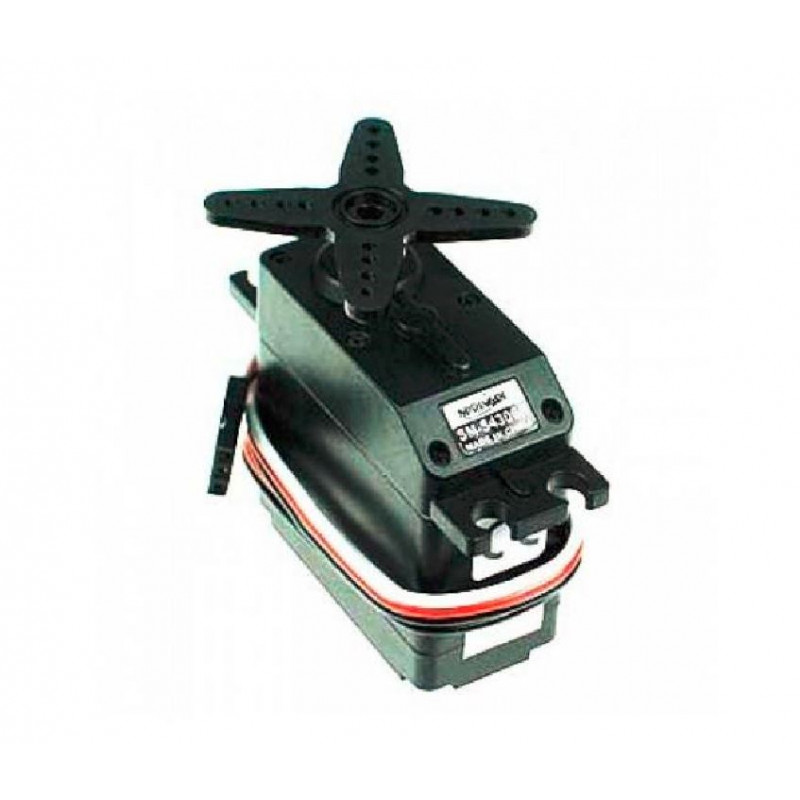

VTS-08A Servo Motor - 6kgf.cm Torque
- Product Code: EC-0350
- Availability: 80
- Rs.620.00
-
Rs.560.00
- (Excluding 18% GST)
