The valve works with the solenoid coil which operates electronically with DC 12 volt supply. As it is a normally closed assembly,it opens the flow of fluids as soon as it is powered ON and stops/blocks the flow when the supply voltage removed.
Note: While Connecting the Valve in the Flow pipeline, you need to mind the Input and Output direction of the valve. It will work only if you connect it in the right direction. (Hint: Inside the value, at one side you will find the filter this is the input side of the value).
Specifications:
- Valve Type: 2 Way Normally Open
- Port Size: 1/8 NPT Female Port
- Coil Voltage: DC12V
- Service Media: Air, Gas, Liquid, Water
- Operation Model: Direct Acting
- Flow Model: Uni-Directional
- Flow Rate: 0.23Cv (Fluid Flow)
- Response Time: Less than 50 ms
- Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
- Operating Temperature: -10 to 80 C
- Coil Power: 6.5W
Package Includes:
1 x DC 12V Solenoid Valve 1/8 2 Way Normally Closed Direct-Pneumatic Valves
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 895.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

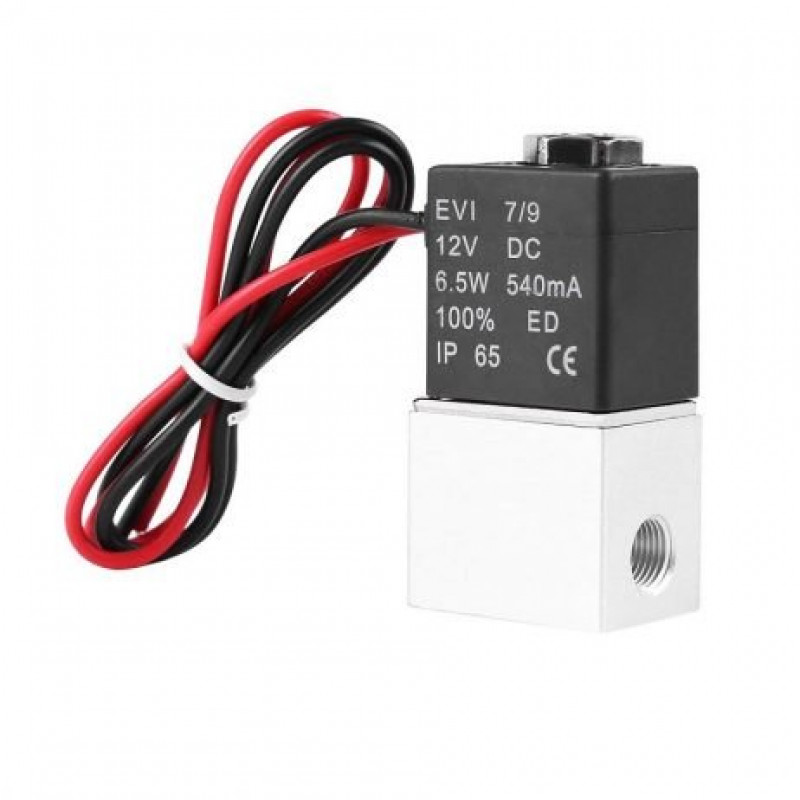

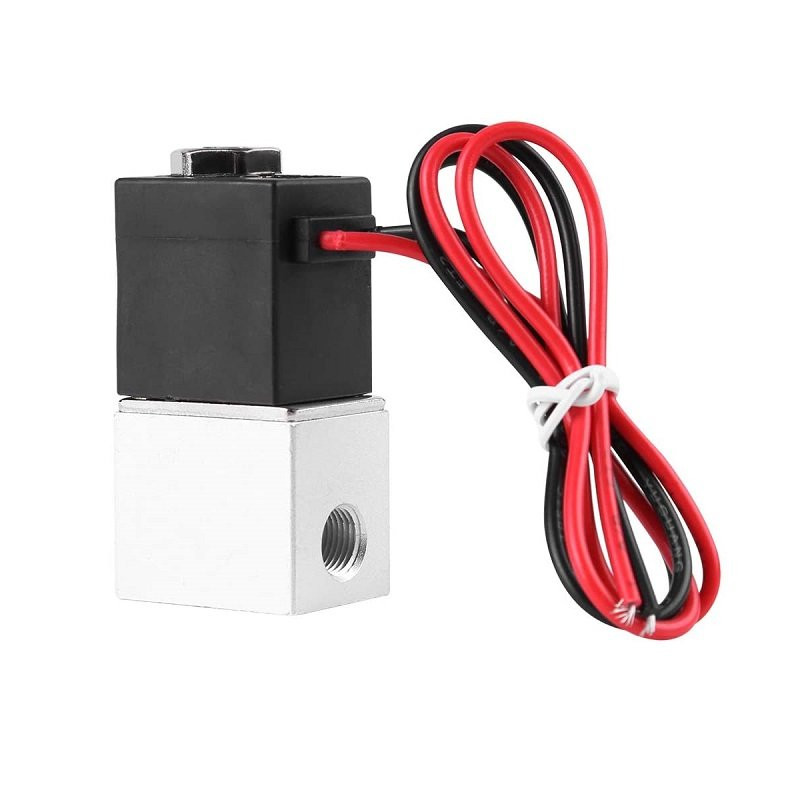

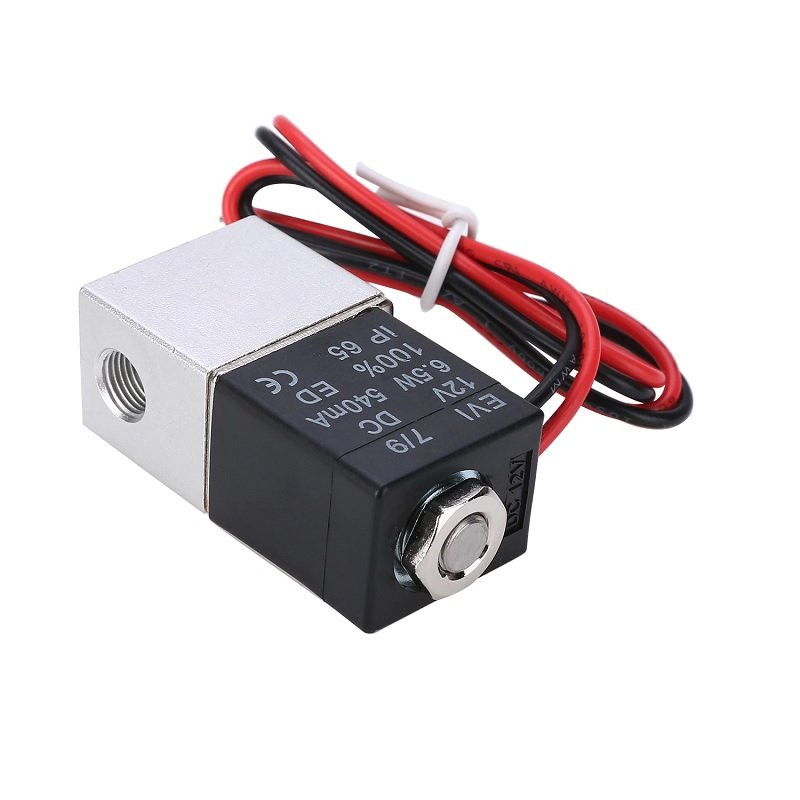

DC 12V Solenoid Valve 1/8 inch 2 Way Normally Closed Direct-Pneumatic Valves For Water Air Gas Hot
- Product Code: EC-5598
- Availability: 1
-
Rs.603.00
- (Excluding 18% GST)
