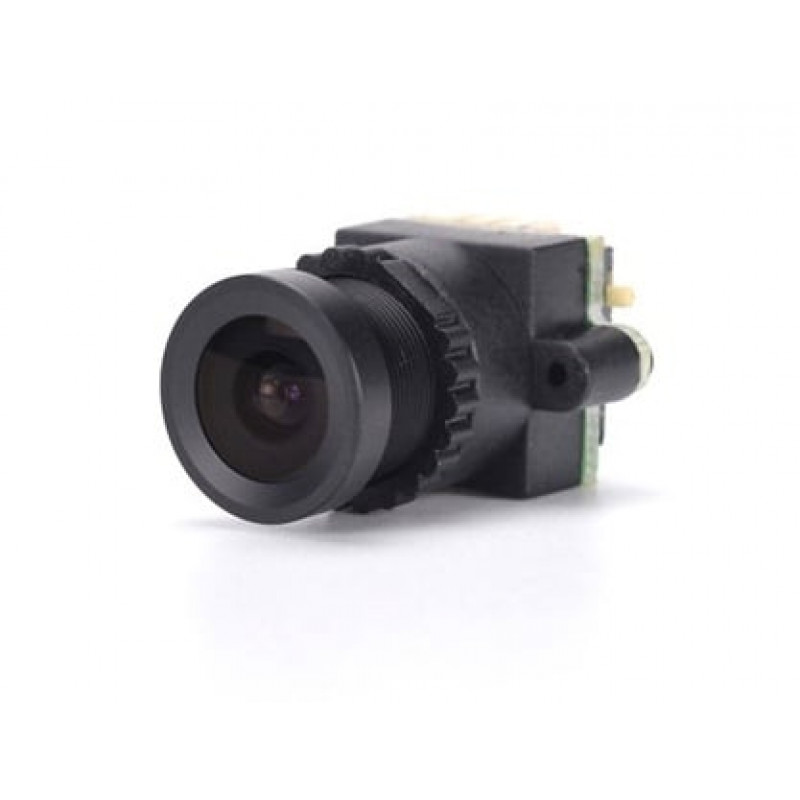

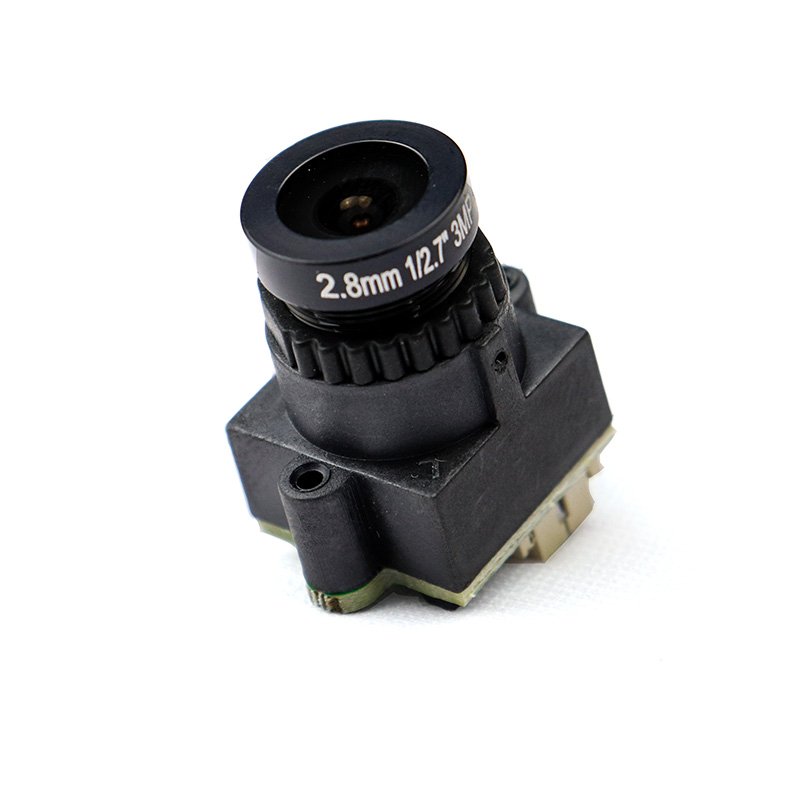

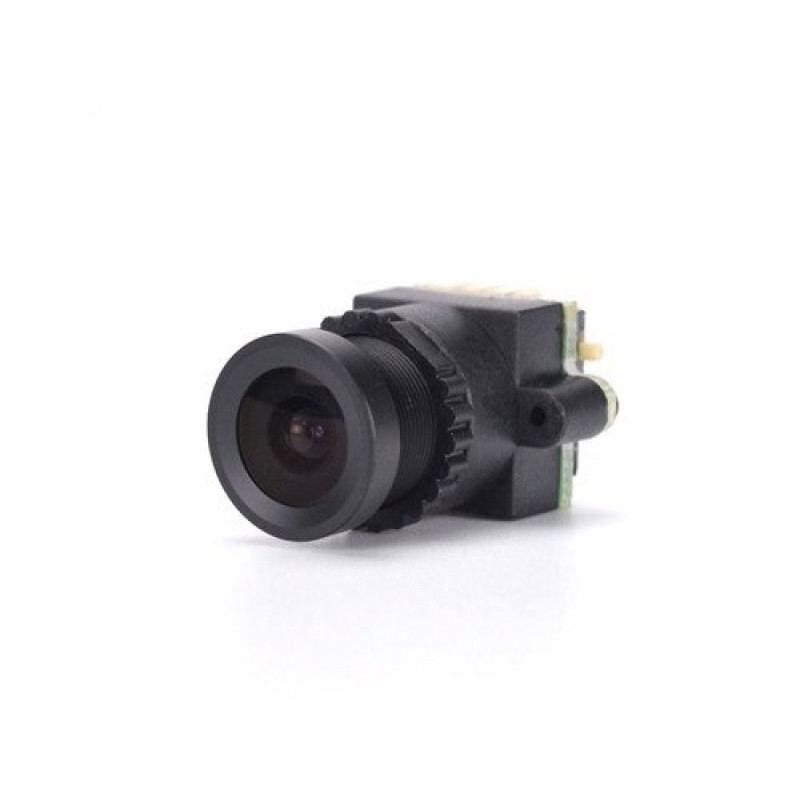

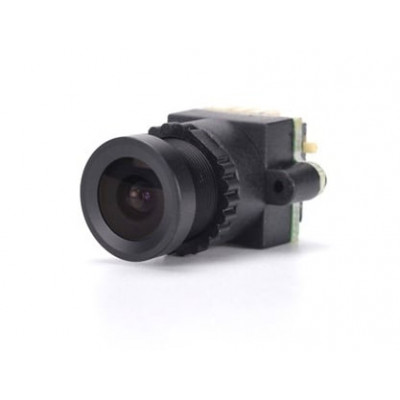

This 1000TVL 90 Degree COMS Camera can be used as both PAL and NTSC. The toggle switch is provided on the camera by which you can enjoy the operation of PAL or NTSC mode. This camera is very compact and easy to use.

This camera is tailored for FPV, dedicated to FPV HD aerial camera. It creates a delicate clear image, micro ultralight design, high definition color

Features :

  1. Launched HD FPV camera, the definition of 1000 lines, low
  2. Illumination, the effect is good, quality-assured, ultra-small size, very suitable for FPV
  3. Application of special industry.
  4. Color fidelity, low illumination, 5V power supply, micropower consumption
  5. Working voltage range:
  6. TV standard: N system, P system, a key switch.
  7. Synchronization: Internal.
  8. White Balance: Automatic.
  9. Gain: Automatic.
  10. BackLight Composition: Automatic.
  11. Digital Noise Reduction: Yes (2D).

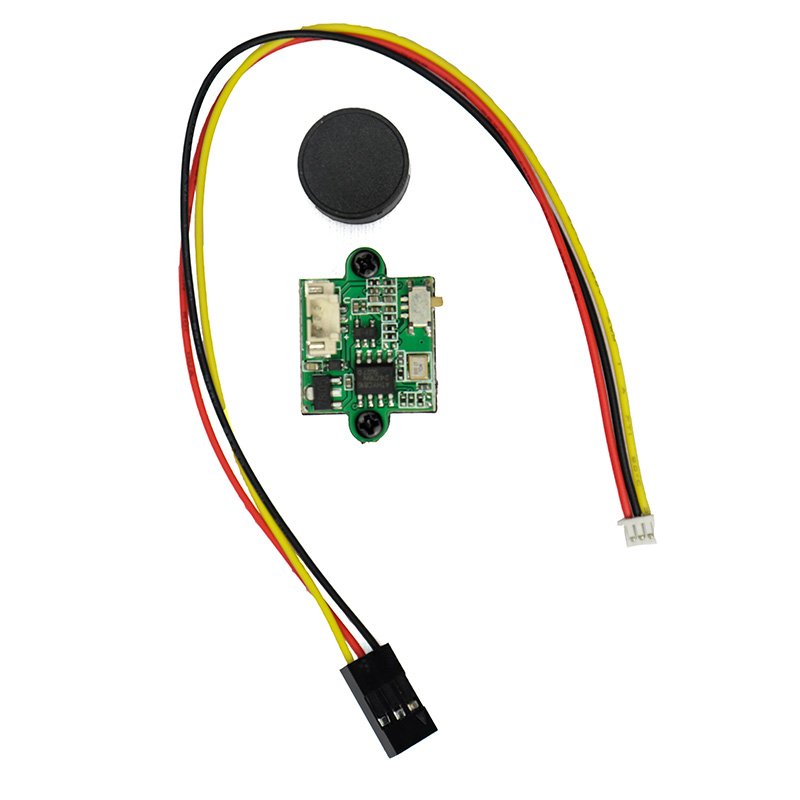

Package Includes :

1 x1000TVL 90 degrees CMOS Camera
1 x Connecting Cable.


Specifications :-

Horizontal Resolution (TVL)

1000

Operating Voltage (VDC)

4.5 ~ 6

Pixel Resolution

1280 x 720.

Image Sensor

1/3" CMOS.

Input Voltage Range(VDC)

5

Operating Temperature Range (C)

-40 to 105

Minimum Illumination

0.05LUX/F1.2.

Working Current

1355 mA.

Gamma Correction

0.45.

Video Output

1.0Vp P75.

S/N Ratio (dB)

50

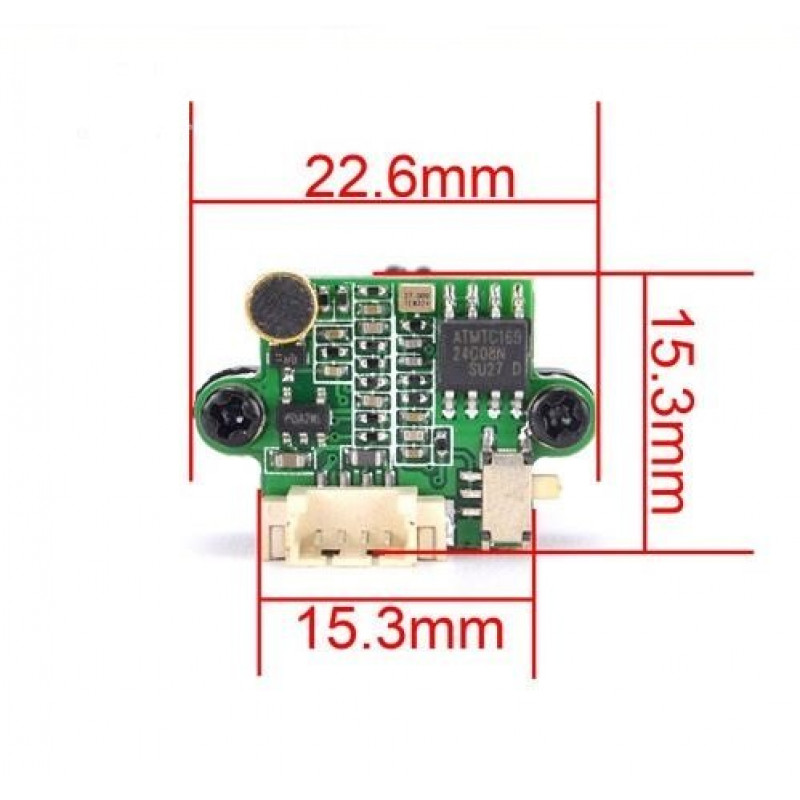

Dimensions in mm (LxWxH)

15 x 15 x 22

Weight (gm)

18



Brand/Manufacturer Generic
Country Of Origin China
