This Quadcopter Frame is the advanced version of Martian-II reptile Quadcopter Frame. It keeps everything that has made the Martian-II Quadcopter frame successful. The MARTIAN-III REPTILE Quadcopter Frame is a mini-size quadcopter frame.
Though this is the upgraded version of Martian-II Frame yet it is made up of less quality carbon fiber as compared to Martian-II. So, the price of the Martian-III Quadcopter frame is less than Martian-II Quadcopter frame.
This MARTIAN-III REPTILE 260mm Quadcopter Frame is made from Carbon Fiber which makes it tough and durable. They have carbon fiber arms of thickness 4mm which ensure no more arm breakage at the motor mounts on a hard landing. The arms equip dampers at the end, which protects motors during the crash. The frame enables quick swapping of arms in race pit settings.
The carbon fiber is mostly accepted material for frame designing because of its high stiffness to weight ratio. The Carbon Fiber Frames are very rigid and improve stability and flight performance.

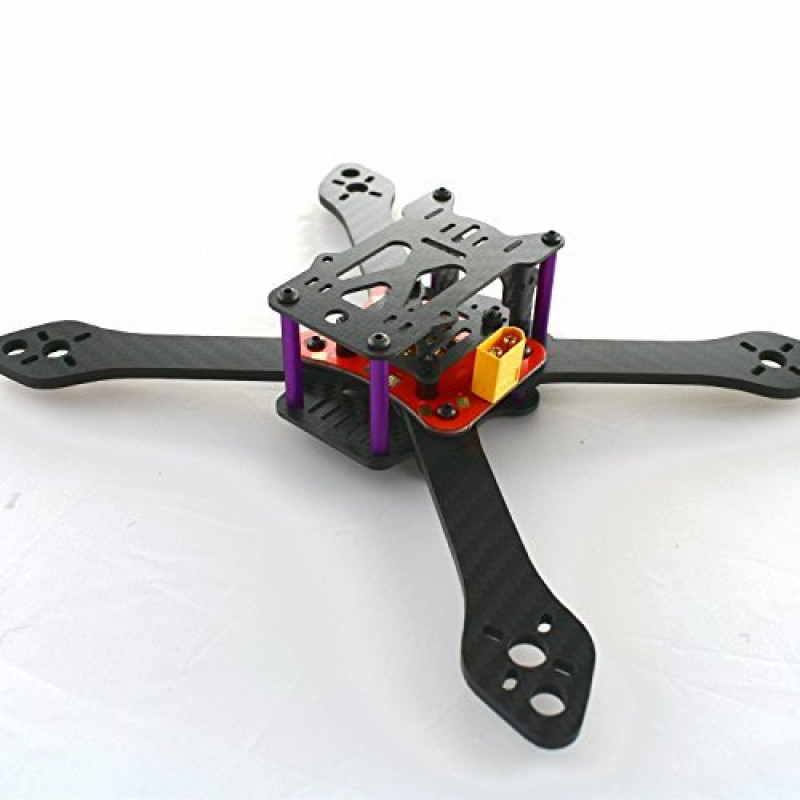

It comes with PDB(Power Distribution Board)and XT60 male connector to power up the Quadcopter. And is also designed to fit standard flight controllers/PDB, FPV cameras and also FPV transmitters and antenna. The assembly is done with Black Oxide steel screws which are included in the pack.
The frame is lightweight and possesses thick arms, so as to give them good mechanical strength. The mini-size design of this quadcopter frame makes it aerodynamically efficient which will require lower throttle to hover.
The frame has the wheel base of 260mm and weighs around 130gm.This frame supports 37mm board cams as well as 26mmcams in cases with mounting bracket.

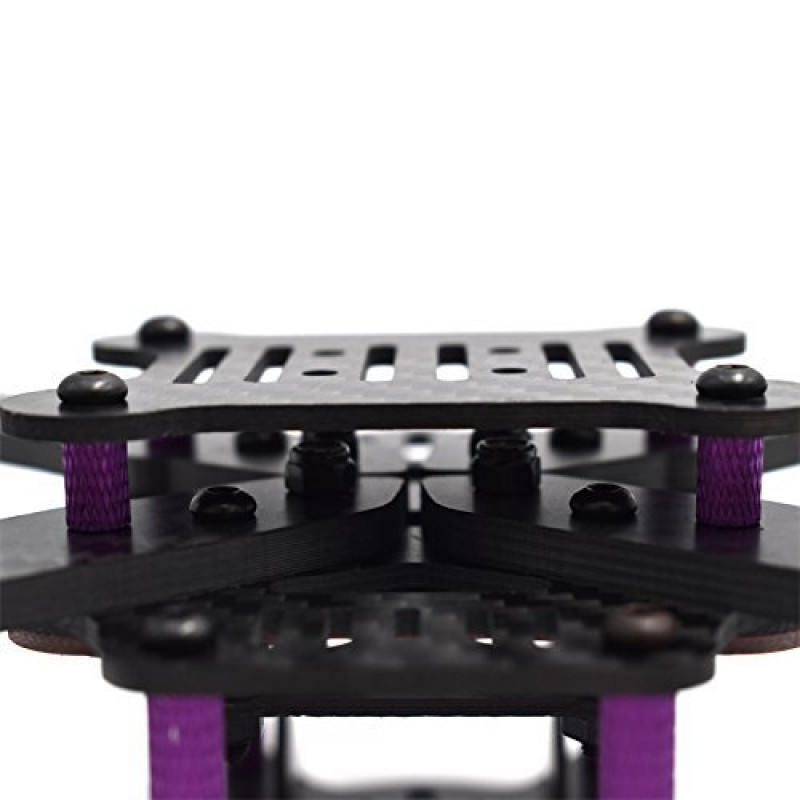

The MARTIAN-III REPTILE Quadcopter Frame equips anodized alloy spacers. The arms of this carbon fiber frame feature multiple motor mounting holes so as to fit a variety of motors.
Note: The dimensions and weight may have 2% error.
Features :
- Lightweight and Durable.
- Made by super strong and advanced engineering material.
- The frame has excellent strength.
- The arm equips dampers for the safe landing.
- The arm has multiple motor mounting holes.
Package Includes :
Specifications :-
| Model | MARTIAN-III |
| Material | Carbon Fiber |
| Wheelbase (mm) | 260 |
| Weight (gm) | 130 |
| Arm Size (L x W) mm | 150 x 30 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 1917.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MARTIAN-III REPTILE 260mm Quadcopter Frame Kit
- Product Code: EC-5818
- Availability: 1
-
Rs.1855.00
- (Excluding 18% GST)
