The FrSky RX8R Pro is an upgraded version of the RX8R receiver, it has all the same features including redundancy. The new Pro version has higher precision and lower latency. Its deviation of PWM is reduced to 0.5us, and the delay of PWM output is 9ms less than that of the X8R in high-speed mode. Another feature that is new with the RX8R Pro is the reduction of interference caused by the ignition process.


Features:

  1. Strong anti-interference performance in the ignition process
  2. Higher precision of PWM
  3. Lower latency on the PWM output
  4. Support redundancy function
  5. Smart Port enabled and support telemetry data transmission

The Redundancy Function:

For the master and slave receivers, when the master receiver goes into failsafe, the output signal from the slave receiver will be used until the master receiver works again.

Note: When both the master and slave receivers go into the failsafe, the failsafe signal from the master receiver will be output; The slave receiver should be in no telemetry mode.


Package Includes:

1 x FrSky RX8R Pro 2.4G ACCST 8/16CH SBUS Telemetry Receiver

1 x User Manual



Specifications :-

Number of Channel

16

RSSI Output (DC Analog)

0~3.3V

Servo Frame Rate

9ms/18ms

Operating Voltage (VDC)

3.5~10V

Max. Operating Current (mA)

100mA@5V

Operating Range

Full Range (>1.5km)

Length (mm)

46.25

Width (mm)

26.6

Height (mm)

14.2

Weight (gm)

15

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 6677.62 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

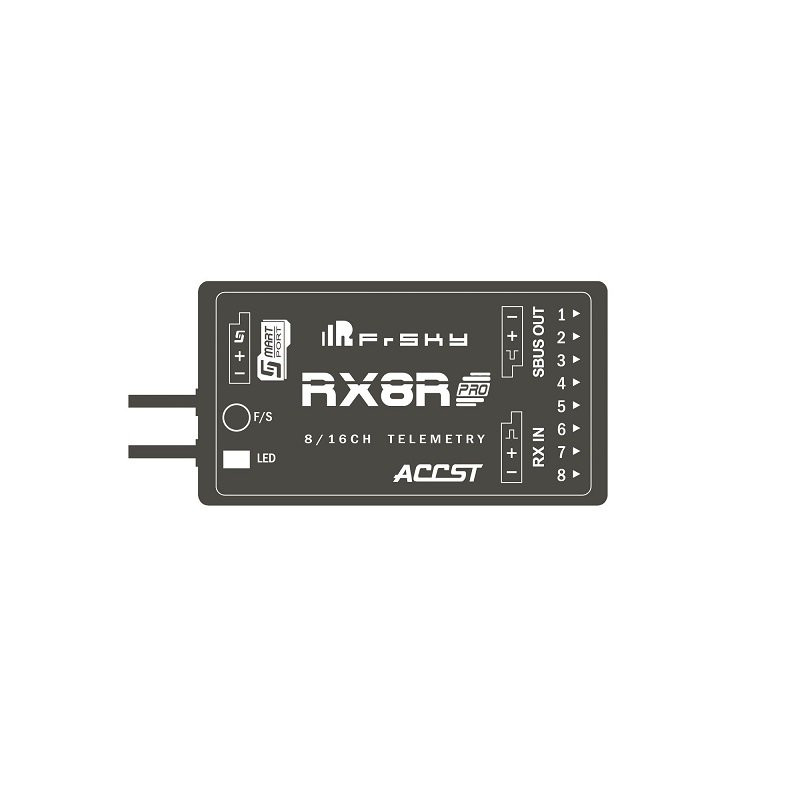

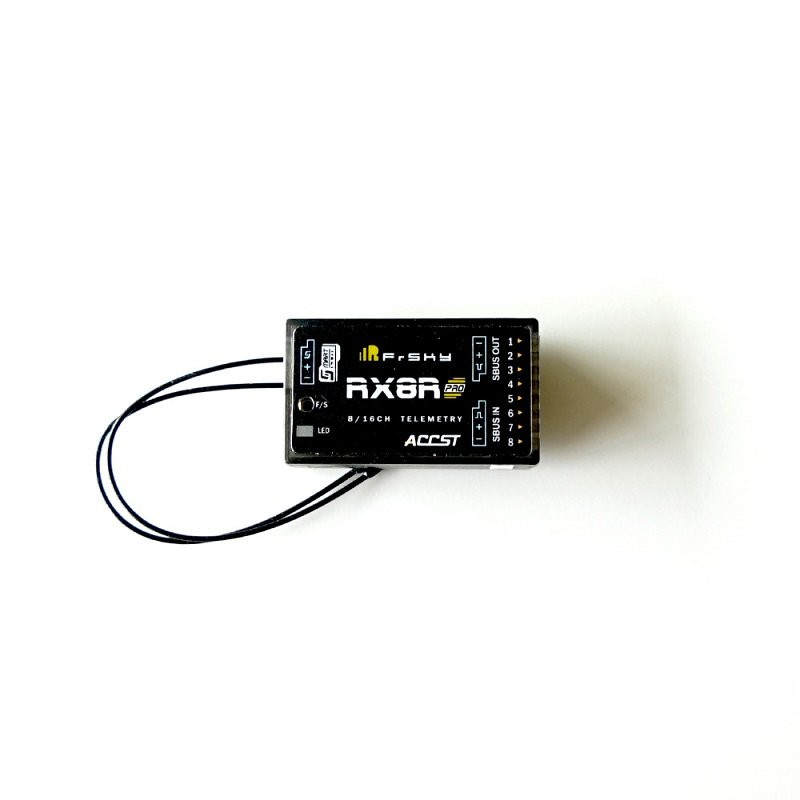

FrSky RX8R Pro 2.4G ACCST 8-16CH SBUS Telemetry Receiver
